Primacy Service Manual

21 / 61

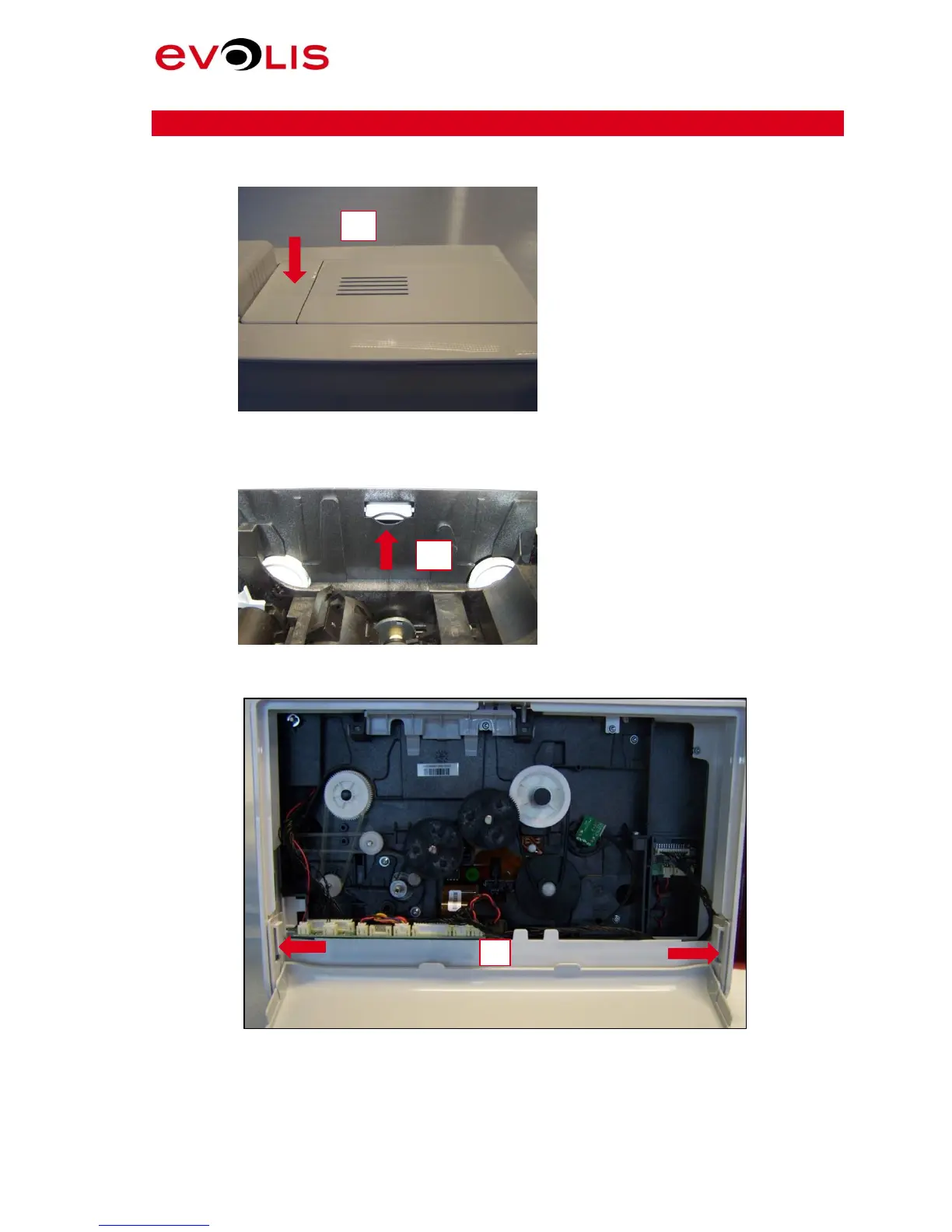

Step 2 – Enclosure Side – CI010214

1. Press and open the cover.

Picture 4: Top Cover

2. Press and open the side.

Picture 5: Side Bolt

3. Push and unplug the enclosure side. ( side by side)

Picture 6: Enclosure Side

1

2

3
