Evolis Primacy - Step 4 - Upper and Hopper Feeder - S10123 to S10126; Picture 8: Feeder Inside Right Side; Picture 9: Feeder Inside Left Side; Picture 10: Feeder Front Side

Primacy Service Manual
23 / 61

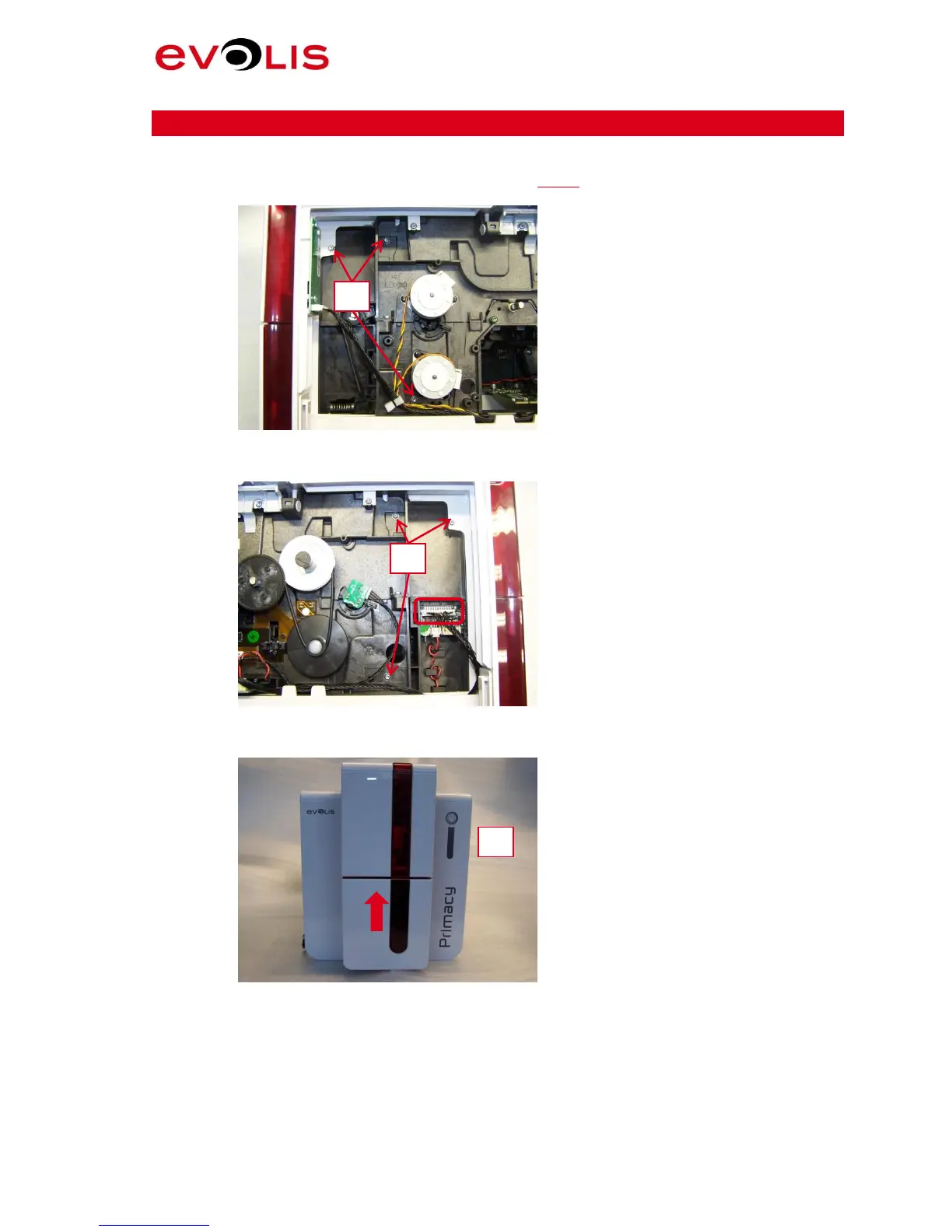

Step 4 – UPPER AND HOPPER FEEDER – S10123 to S10126
1. First, be sure to have completely performed Step 2.
2. Remove the three screws.
Picture 8: Feeder inside Right Side
3. Remove the three screws and the feeder cable.
Picture 9: Feeder inside Left Side
4. Lift the feeder and remove it.
Picture 10: Feeder Front Side
