Evolis Primacy - Step 6 -Tighting Belts Kit - S10094; Picture 14: Feeder Tighting Belt; Picture 15: Feeder Tighting Belt-1

Primacy Service Manual
26 / 61
Step 6 –TIGHTING BELTS KIT – S10094
1. First, be sure to have completely performed from Step 4-1 to Step 4 – 5.
2. Remove the spring.

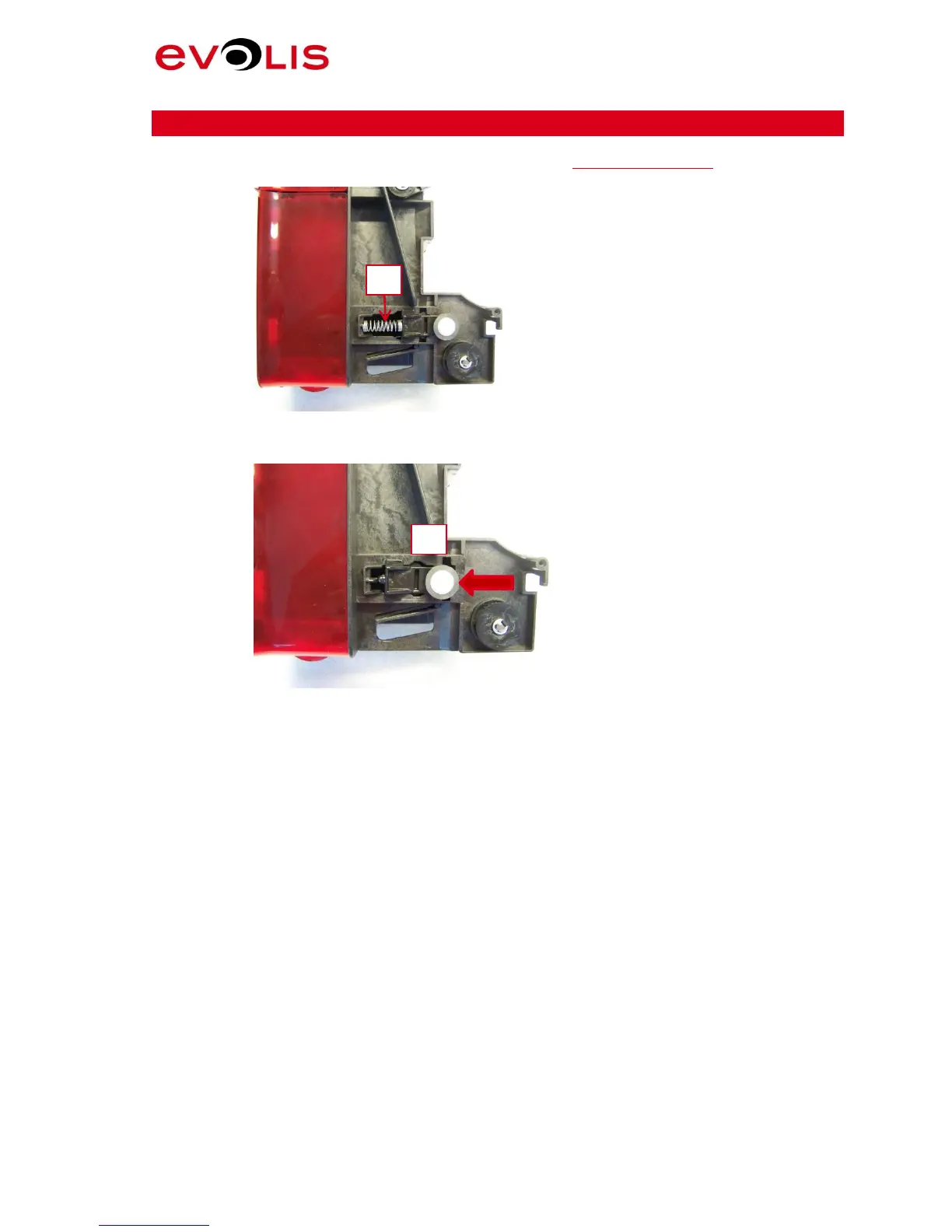

Picture 14: Feeder Tighting Belt
3. Push and remove the belt idler.
Picture 15: Feeder Tighting Belt-1
2
3
