Primacy Service Manual

49 / 61

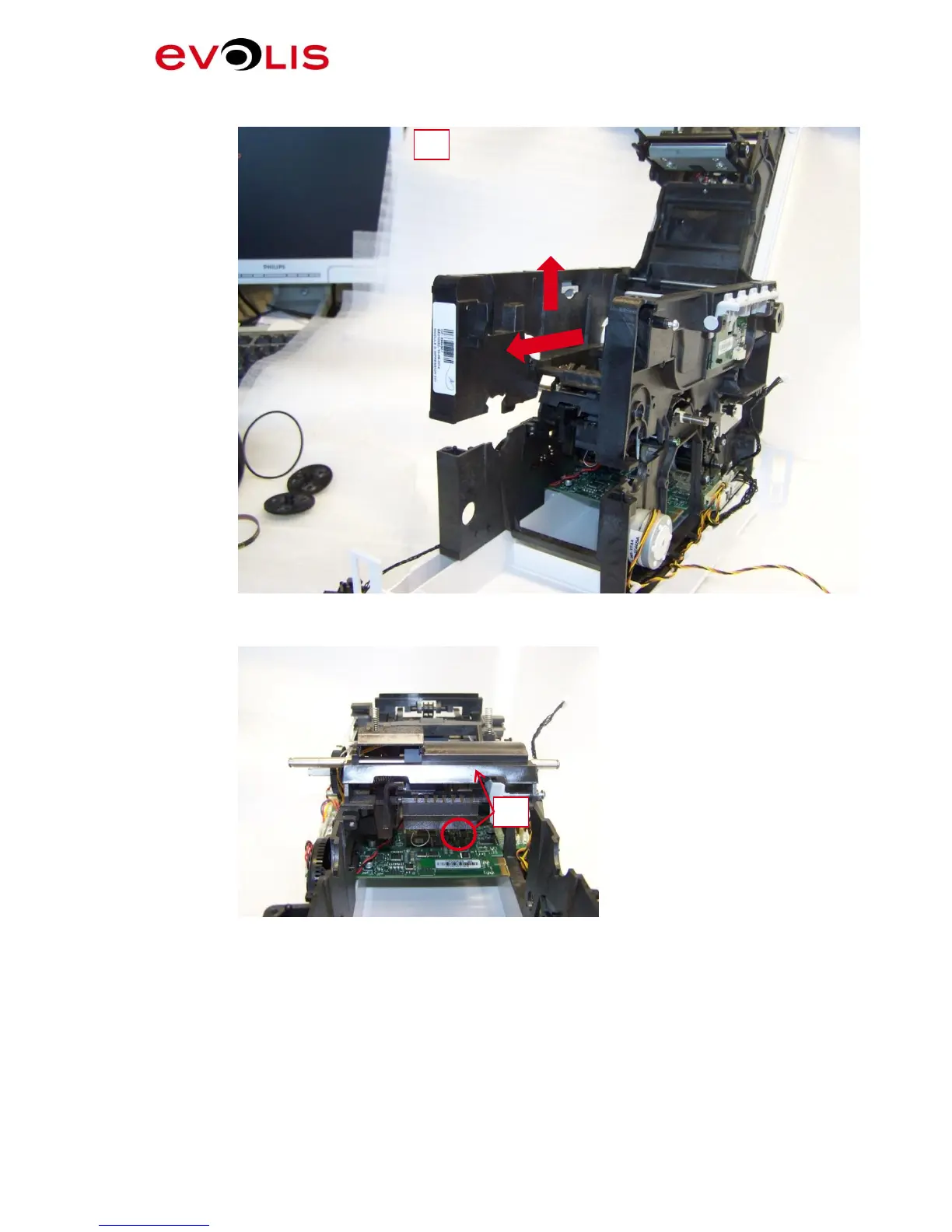

6. Open the head bracket, lift and pull forward and remove the upper chassis.

Picture 56: Separation of Chassis

7. Remove the synchro ribbon support and the spring of the pressure roller.

Picture 57: Synchro Ribbon Support

6

7
