Evolis Primacy - Picture 29: Tansport Belts; Picture 30: MLX Transport Belt

Primacy Service Manual
34 / 61
3. Ribbon belt
4. Stepper belt
a. First, be sure to have performed Step 2 without Step 2 -3.
b. Remove the ribbon belt.
c. Remove the head roller gear (a) and the stepper belt.

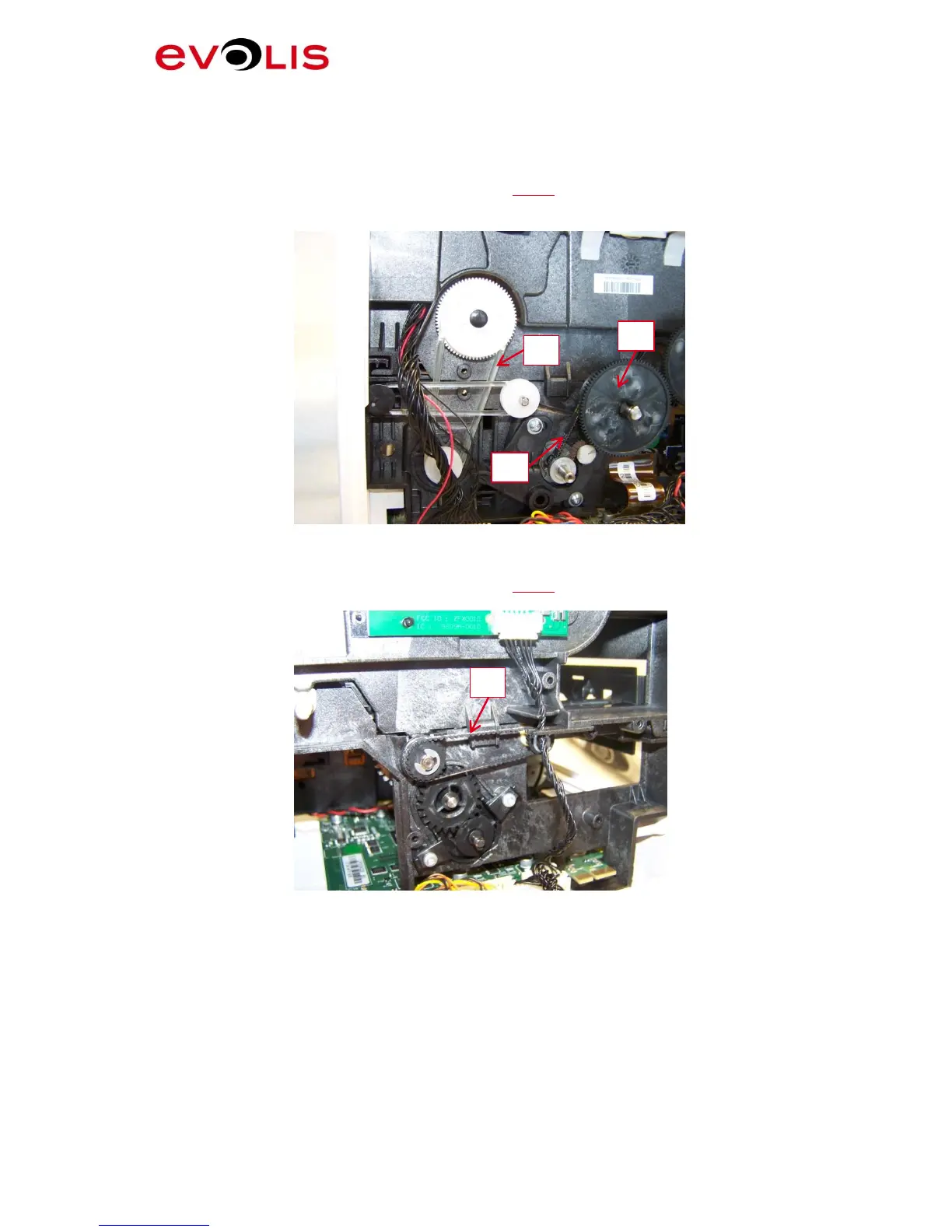

Picture 29: Tansport Belts
5. MXL Transport belt
a. First, be sure to have performed Step 2 without Step 2 -3.
b. Remove the MXL Transport belt.
Picture 30: MLX Transport Belt
3
a
4
2
