Evolis Primacy - Step 9 - Flip over Sensor - S10121; Picture 23: Flip Sensor

61 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

Primacy Service Manual

30 / 61

Step 9 – FLIP OVER SENSOR – S10121

1. First, be sure to have performed Step 2 without Step 2 -3.

2. Remove the flip sensor and disconnect its cable.

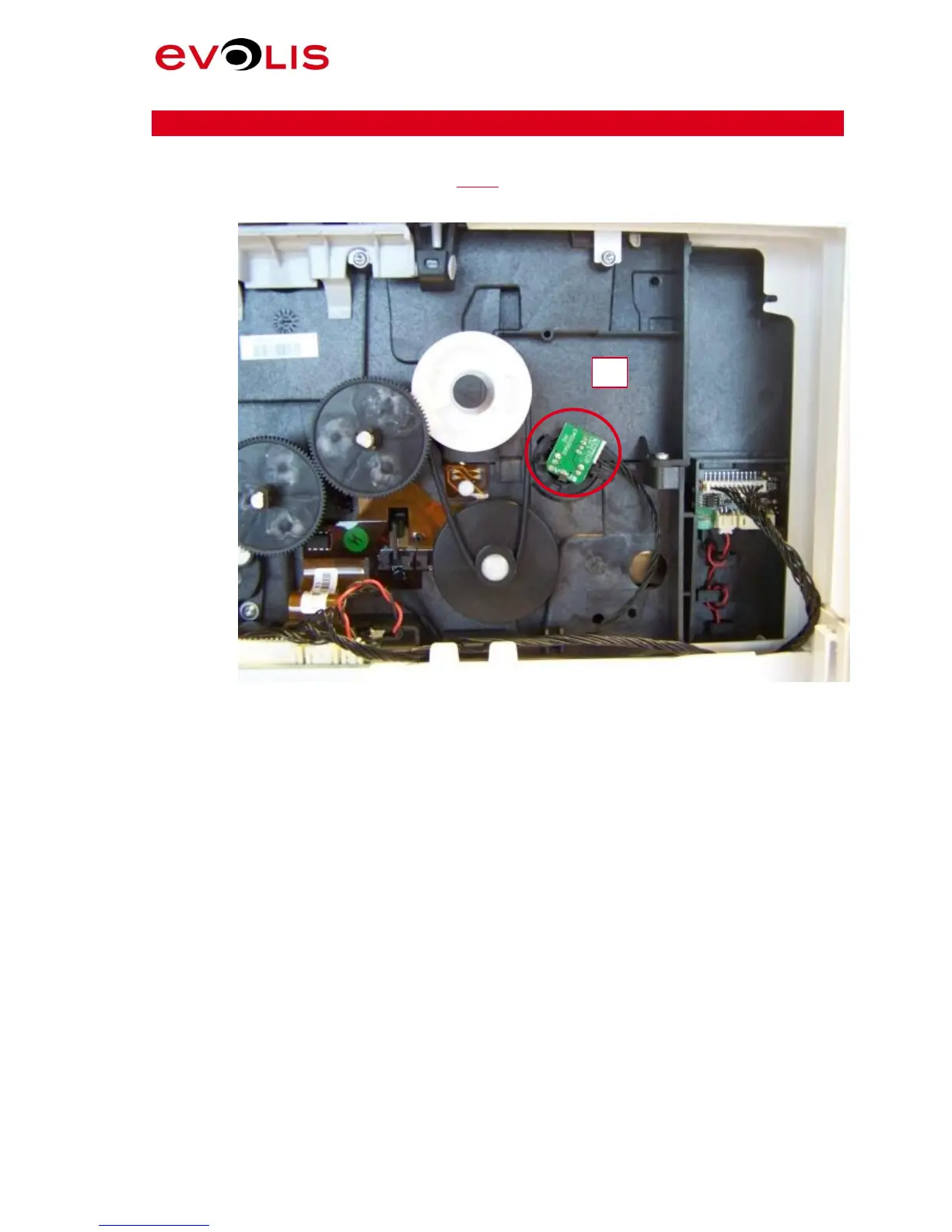

Picture 23: Flip Sensor

2
