Evolis Primacy - Step 20 - Common Motor- S10097 (Ribbon); Picture 45: Common Motor Left Side; Picture 46: Common Motor Clip

Primacy Service Manual
44 / 61
Step 20 – COMMON MOTOR– S10097 (RIBBON)
1. First, be sure to have completely performed Step 18.
2. Remove the ribbon belt, the ribbon pulley and the motor cable.

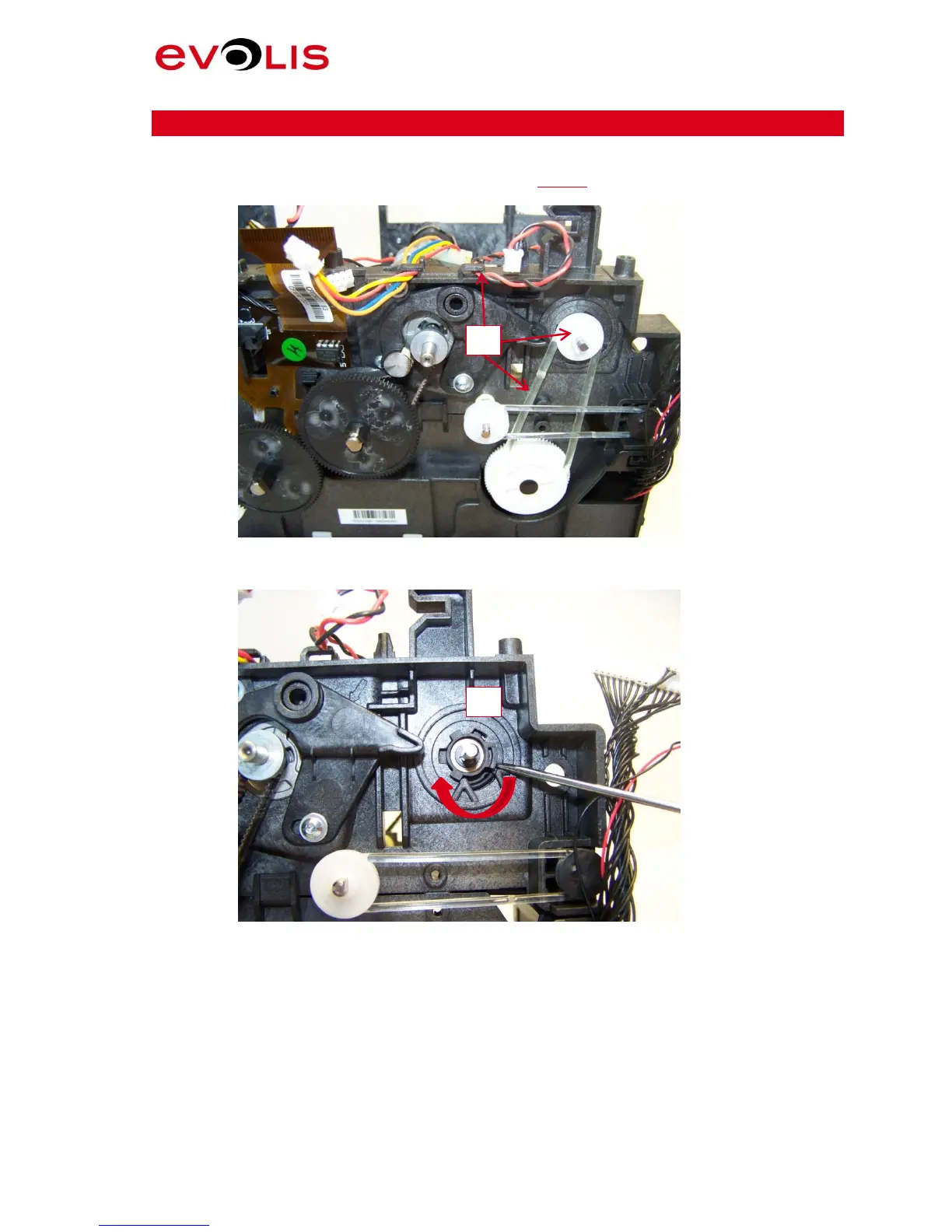

Picture 45: Common Motor Left Side
3. Press on the motor clip with a flat screwdriver and turn the motor at the same time.
Picture 46: Common Motor clip
