Evolis Primacy Service Manual

Primacy Service Manual
31 / 61
Step 10 – RIBBON BRAKING KIT- S10093
1. First, be sure to have performed Step 2 without Step 2 -3.
2. Remove the option roller gear.
3. Push and turn left the lock and remove it.

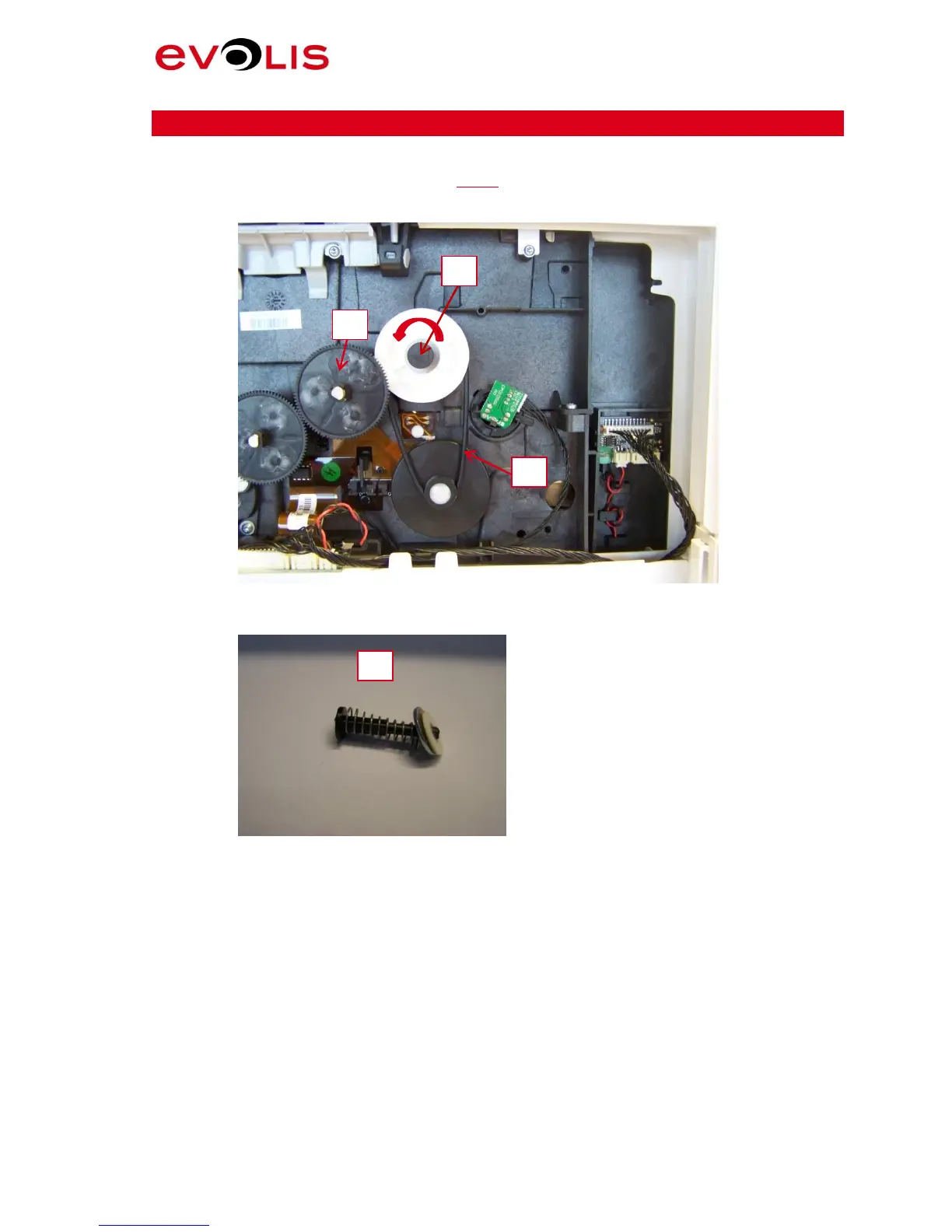

Picture 24: Ribbon lock
4. Notice the order of each part from the lock key. (springs & washers)
Picture 25: Ribbon lock details
5. Remove the Black Ribbon belt.
2
3
5
4
