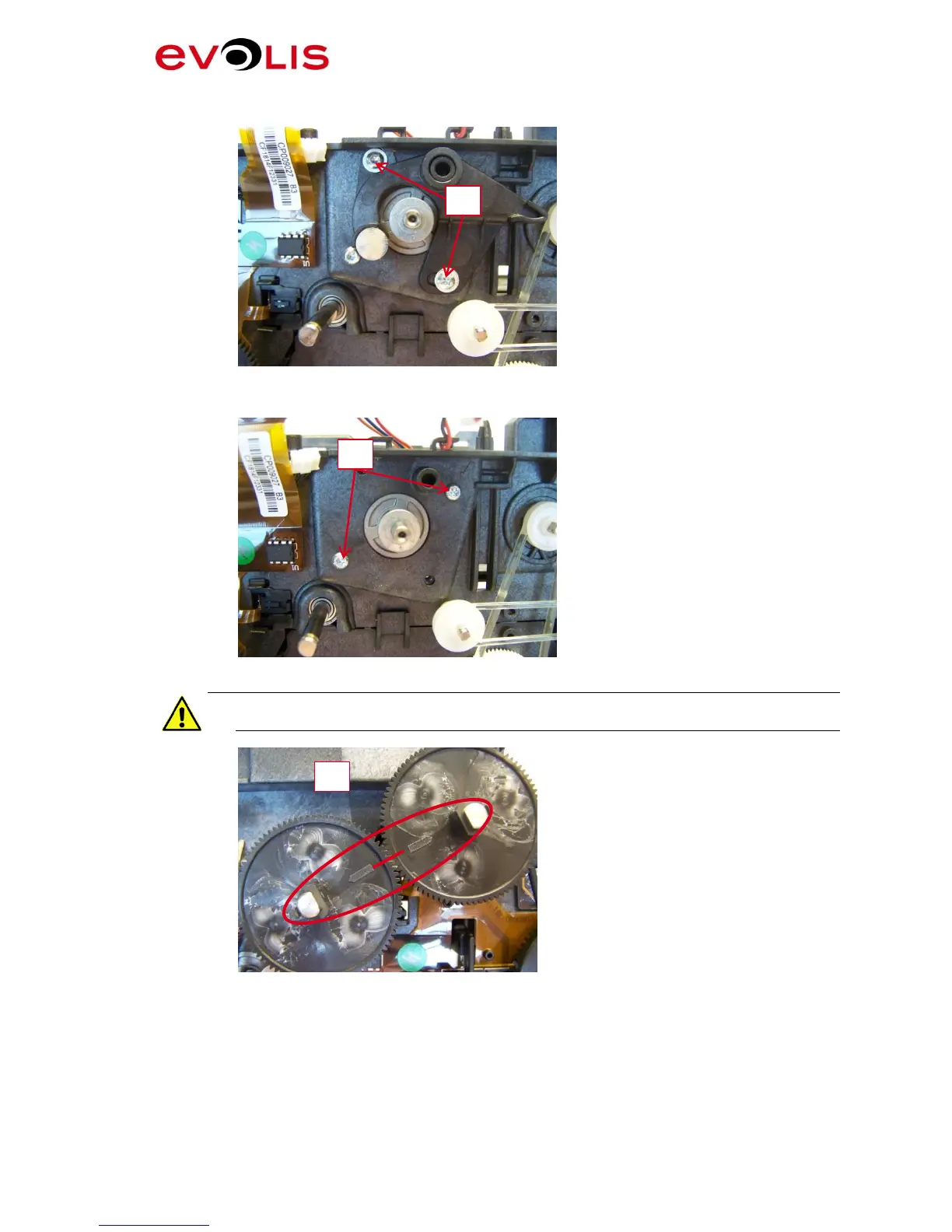

4. Remove the two screws of the belt idler.
Picture 49: Belt Idler screws
5. Remove the two screws of the Stepper motor.
Picture 50: Stepper Motor
6. When you will re-assembly components;
Be carreful, when you put back the black gears, to align the markers together.
Picture 51: Black gears position
