Evolis Primacy - Step 8 - Enclosure Base - Ci011190; Picture 20: Enclosure Base Side; Picture 21: Enclosure Base Clip-1; Picture 22: Enclosure Base Clip-2

Primacy Service Manual
29 / 61
Step 8 – ENCLOSURE BASE – CI011190
1. First, be sure to have completely performed from Step 4-1 to Step 4 – 4.
2. Be sure to have completely performed Step 3-1.
3. Loosen the two screws on each side.

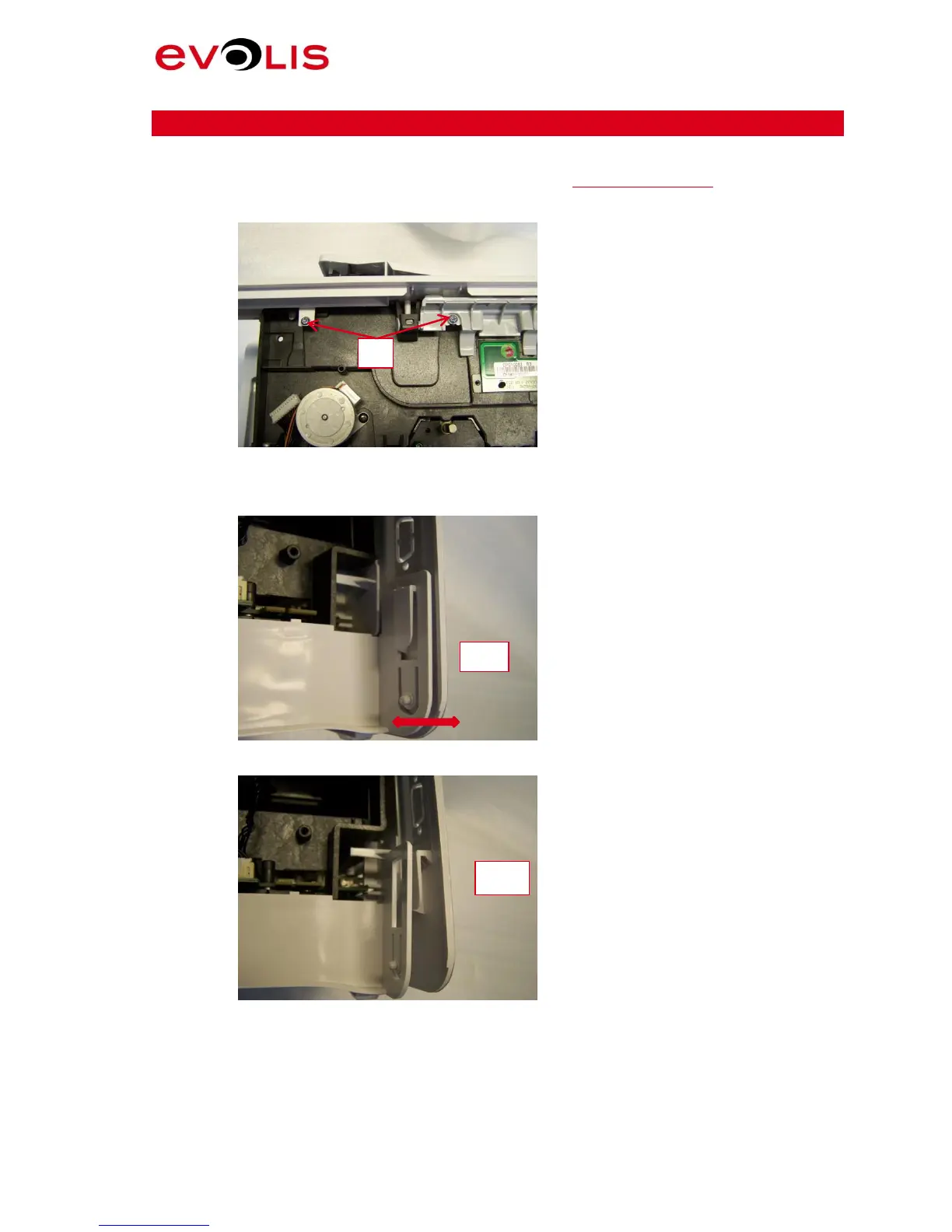

Picture 20: Enclosure Base side
4. Separate the two parts from each other (a) and unplug them (b): repeat this step for
each corner, remove the base.
Picture 21: Enclosure Base clip-1
Picture 22: Enclosure Base clip-2
3
4a
4b
