Primacy Service Manual
59 / 61

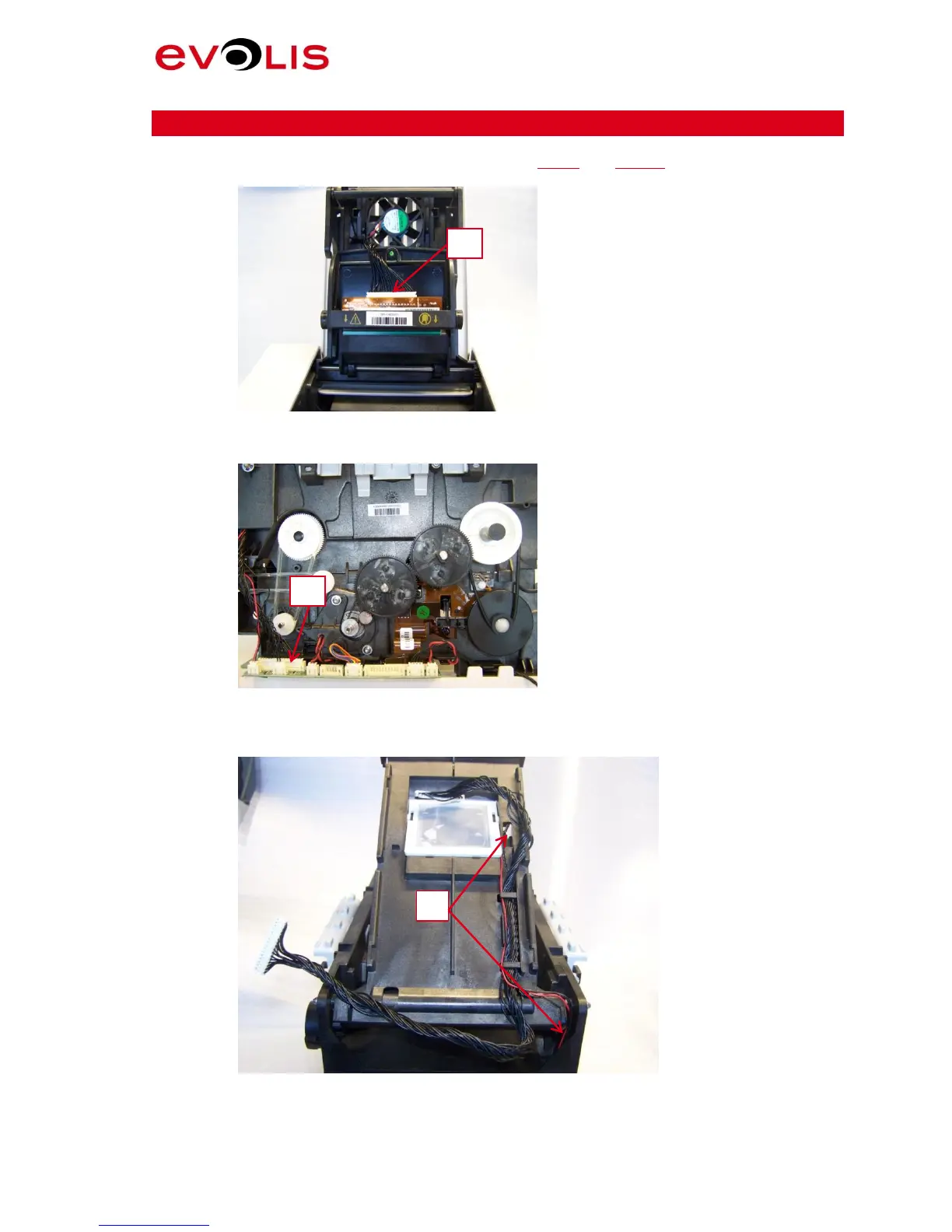

Step 29 – PRINT HEAD CABLE – S10085
1. First, be sure to have completely performed Step 8 and Step 26.
2. Disconnect the print head cable.
Picture 77: Print Head Cable – Print Head Connector
3. Disconnect the print head cable.
Picture 78: Print Head Cable – Mainboard Connector
4. Pass the print head cable thru the chassis and the head bracket cable path.
Picture 79: Print Head Cable Path
3
4
5
