Primacy Service Manual

58 / 61

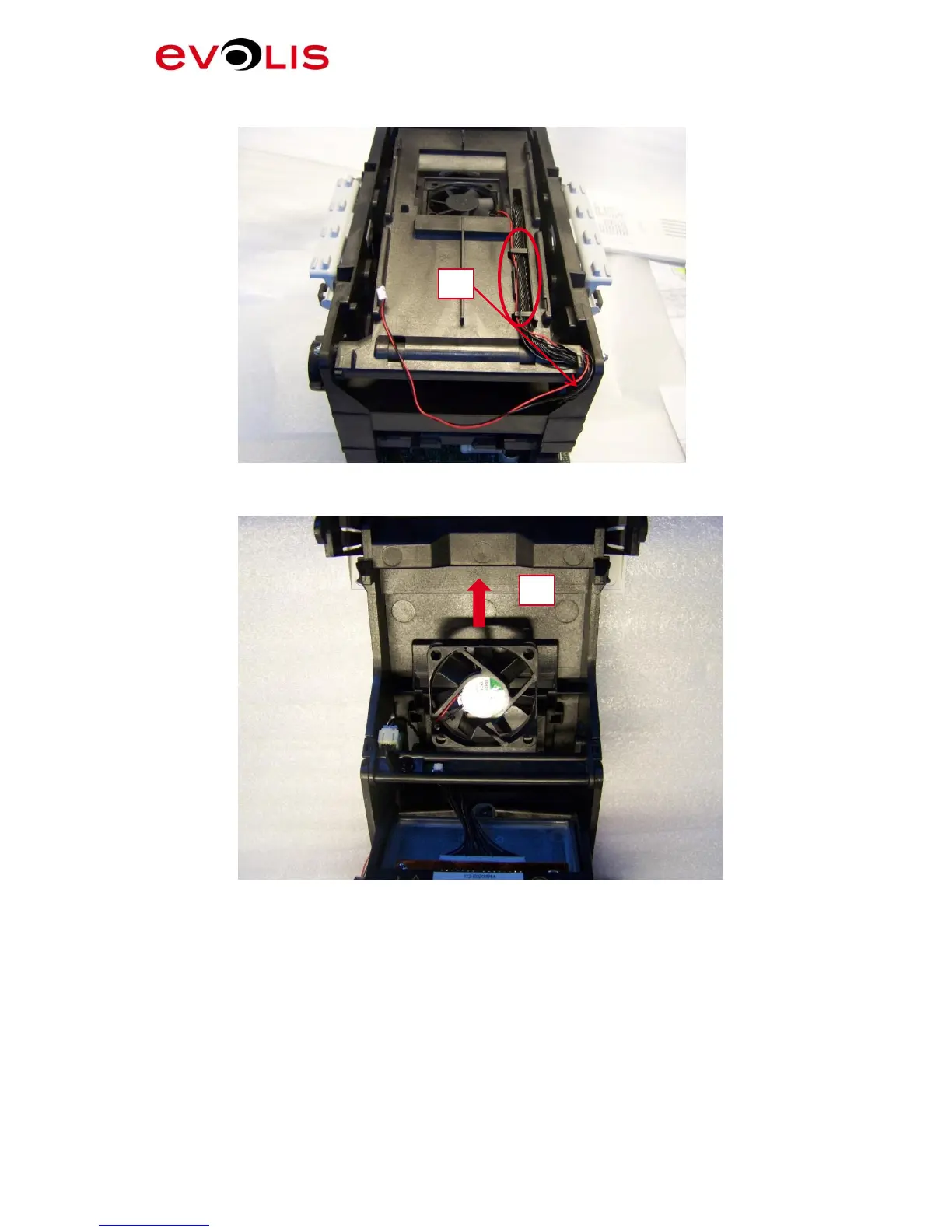

5. Pass the fan cable thru the chassis cable path.

Picture 75: Fan Cable Path

6. Slide the fan with its cable.

Picture 76: Fan - 2

6

7

Table of Contents

Table of Contents2
Introduction3
- Liability Statement3
- Proprietary Notice3
- Trademark Acknowledgments3
- Environmental Information - Recycling of End-Of-Life Products3
- Operator4
- Mechanical Maintenance Personnel4
- Electrical Maintenance Personnel4
Symbols5
Safety6
- Safe Environment6
- Safe Human Interface6
- General Safety Regulations7
Picture List8
Description10
- Picture 1: Evolis Primacy Printer10
Explode View11
- Drawing 111
- Drawing 212
- Drawing 312
- Drawing 413
- Drawing 514
- Drawing 615
- Drawing 716
- Drawing 816
- Drawing 917
Spare Parts List18
Available Tools19
- Picture 2: Tools19
Step 1 - Reject Box - Ci01022220
- Picture 3: Reject Box20
Step 2 - Enclosure Side - Ci01021421
- Picture 4: Top Cover21
- Picture 5: Side Bolt21
- Picture 6: Enclosure Side21
Step 3 - Lcd Control Panel (with Cable) - S1008622
- Picture 7: Control Panel22
Step 4 - Upper and Hopper Feeder - S10123 to S1012623
- Picture 8: Feeder Inside Right Side23
- Picture 9: Feeder Inside Left Side23
- Picture 10: Feeder Front Side23
- Picture 11: Feeder Right Side24
- Picture 12: Feeder Left Side24
Step 5 - Feeder Belts Kit - S1009225
- Picture 13: Feeder Belt25
Step 6 -Tighting Belts Kit - S1009426
- Picture 14: Feeder Tighting Belt26
- Picture 15: Feeder Tighting Belt-126
Step 7 - Common Motor - S10097 ( Feeder)27
- Picture 16: Feeder E-Ring & Pulley27
- Picture 17: Feeder Motor Cable27
- Picture 18: Feeder Motor-128
- Picture 19: Feeder Motor-228
Step 8 - Enclosure Base - Ci01119029
- Picture 20: Enclosure Base Side29
- Picture 21: Enclosure Base Clip-129
- Picture 22: Enclosure Base Clip-229
Step 9 - Flip over Sensor - S1012130
- Picture 23: Flip Sensor30
Step 10 - Ribbon Braking Kit- S1009331
- Picture 24: Ribbon Lock31
- Picture 25: Ribbon Lock Details31
- Picture 26: Ribbon Lock Gear32
Step 11 - Transport Belts Kit - S1009133
- Picture 27: Transport Belt33
- Picture 28: Black Ribbon Belt33
- Picture 29: Tansport Belts34
- Picture 30: MLX Transport Belt34
Step 12 - Ribbon Detection Kit - S1008735
- Picture 31: Ribbon Detection35
- Picture 32: Ribbon Detection Rivet35
Step 13 - Stepper/Feeder Motor - S1009836
- Picture 33: Motor Flip36
Step 14 - Flip over Module - S1012837
- Picture 34: Flip Sensor37
- Picture 35: Flip Motor37
- Picture 36: Flip Support38
- Picture 37: Flip over38
Step 15 - Cleaning Roller - S1012239
- Picture 38: Cleaning Roller39
Step 16 - I/O Shield - Ci01032240
- Picture 39: I/O Shield40
Step 17 - Enclosure Bottom Plate - Se01007941
- Picture 40: Bottom Plate41
Step 18 - Main Board Usb Eth - S1011442
- Picture 41: Mainboard Connections42
- Picture 42: Fixing Mainboard42
Step 19 - Common Motor - S10097 (up and Down)43
- Picture 43: Gear Motor43
- Picture 44: Motor Clip43
Step 20 - Common Motor- S10097 (Ribbon)44
- Picture 45: Common Motor Left Side44
- Picture 46: Common Motor Clip44
Step 21 - Stepper Motor - S1009645
- Picture 47: Stepper Motor45
- Picture 48: Transport Belt45
- Picture 49: Belt Idler Screws46
- Picture 50: Stepper Motor46
- Picture 51: Black Gears Position46
Step 22 - Head Roller Kit - S1009947
- Picture 52: Left Side Components47
- Picture 53: Stepper Belt47
- Picture 54: Transport Belt48
- Picture 55: Disassembly Chassis Screws48
- Picture 56: Separation of Chassis49
- Picture 57: Synchro Ribbon Support49
- Picture 58: Option Roller & Springs50
- Picture 59: Heat Roller -150
- Picture 60: Heat Roller - 250
Step 23 - Flex Sensor Kit - S1008851
- Picture 61: Flex Connector51
- Picture 62: Flex Rivets51
- Picture 63: Flex Card Sensor52
Step 24 - Print Head (Kpe) - S1008453
- Picture 64: Print Head - 153
- Picture 65: Print Head - 253
- Picture 66: Print Head - 353
Step 25 - Ribbon Sensor - S1008954
- Picture 67: Ribbon Sensor - 154
- Picture 68: Ribbon Sensor - 254
- Picture 69: Ribbon Sensor - 354
Step 26 - Enclosure Cover - Ci01020555
- Picture 70: Enclosure Cover - 155
- Picture 71: Enclosure Cover - 255
Step 27 - Enclosure Buttom - Ci01020656
- Picture 72: Enclosure Button56
Step 28 - Fan Kit - S1010057
- Picture 73: Fan - 157
- Picture 74: Fan Connector57
- Picture 75: Fan Cable Path58
- Picture 76: Fan - 258
Step 29 - Print Head Cable - S1008559
- Picture 77: Print Head Cable - Print Head Connector59
- Picture 78: Print Head Cable - Mainboard Connector59
- Picture 79: Print Head Cable Path59
Step 30 - Head Bracket - S1013860
- Picture 80: Head Bracket Connectors60
- Picture 81: Head Bracket Cables Path60
- Picture 82: Head Bracket Axis60
