Evolis Primacy Service Manual

Primacy Service Manual
42 / 61
Step 18 – MAIN BOARD USB ETH – S10114
1. First, be sure to have completely performed Step 17.
2. Remove all the connectors and the flex connector.

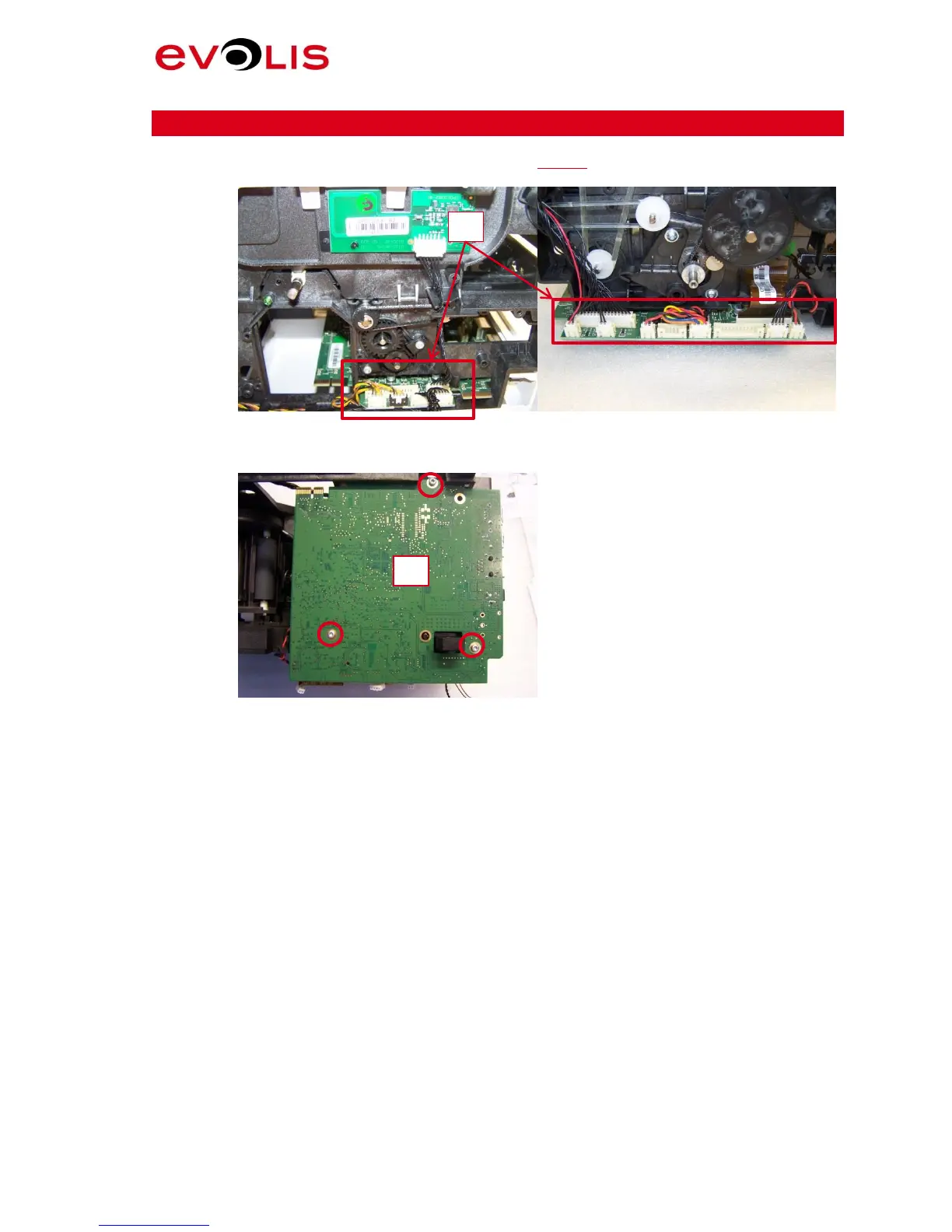

Picture 41: MainBoard Connections
3. Turn back the primacy chassis and remove the three screws.
Picture 42: Fixing MainBoard
2
3

Evolis Primacy Specifications

General

Resolution	300 dpi
Card Capacity Input	100 cards
Weight	4.02 kg (8.86 lbs)
Printing Technology	Dye-sublimation
Print Speed (YMCKO)	Up to 225 cards/hour
Card Capacity Output	100 cards
Card Thickness	0.25 to 1.25 mm (10 to 50 mil)
Card Types	PVC cards, Composite PVC cards, PET cards, ABS cards, Special varnished cards
Connectivity	USB, Ethernet
Encoding Options	Magnetic stripe, Contact and contactless smart card encoders
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	247 x 205 x 381 mm (9.72 x 8.07 x 14.99 in)
Power Supply	100-240 V, 50-60 Hz
