Evolis Primacy Service Manual

Primacy Service Manual
53 / 61
Step 24 – PRINT HEAD (KPE) – S10084
1. First, be sure to have completely performed Step 2-1.
2. Press on the plastic part behind the head (pressure plate) and pull on the head with the
other hand to free the lugs from the holding fork, and then remove the lugs from their
slots.
3. Tilt the head carefully downwards and disconnect the connector linked to the cable
without using force on the mechanism.

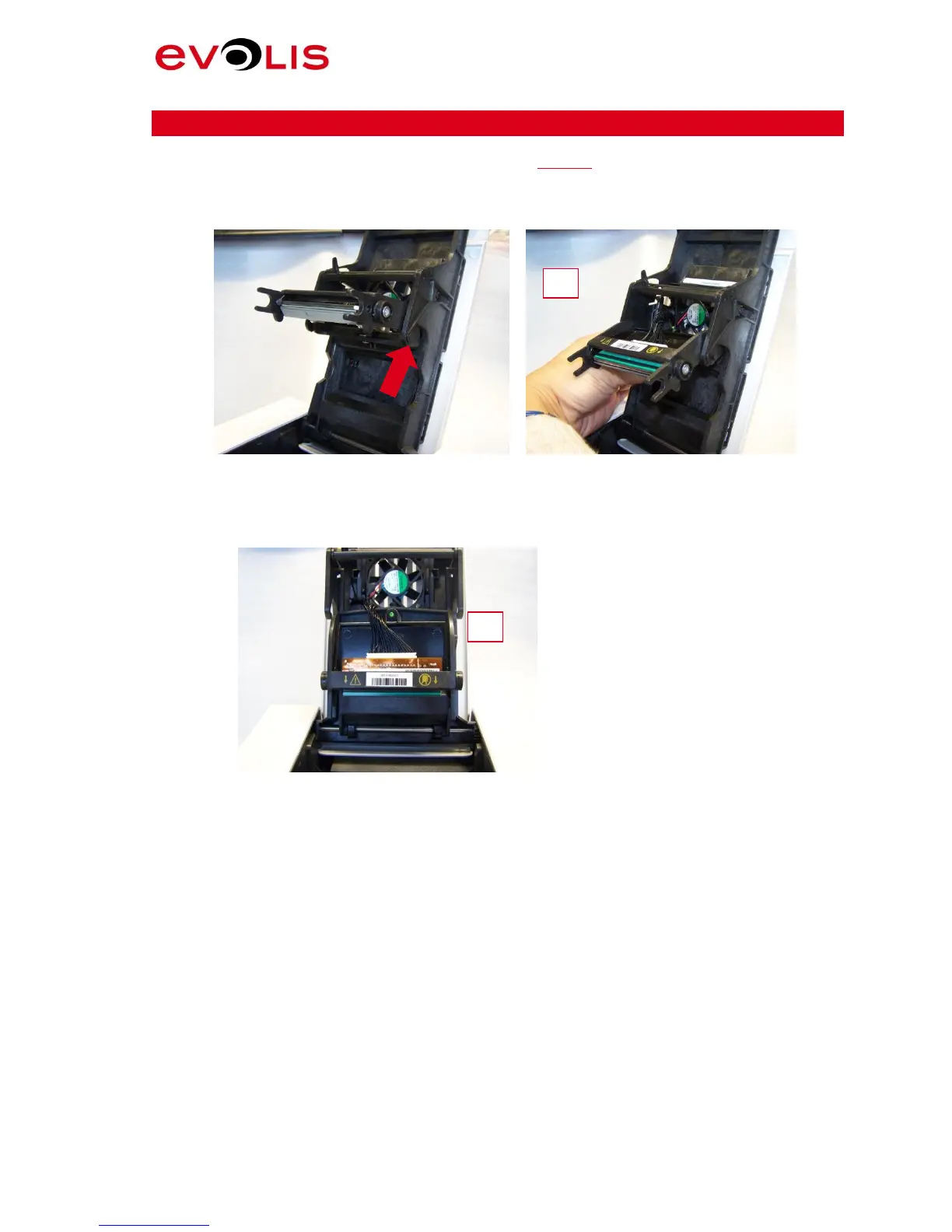

Picture 66: Print Head - 3
Picture 64: Print Head – 1
Picture 65: Print Head - 2
3
2

Evolis Primacy Specifications

General

Resolution	300 dpi
Card Capacity Input	100 cards
Weight	4.02 kg (8.86 lbs)
Printing Technology	Dye-sublimation
Print Speed (YMCKO)	Up to 225 cards/hour
Card Capacity Output	100 cards
Card Thickness	0.25 to 1.25 mm (10 to 50 mil)
Card Types	PVC cards, Composite PVC cards, PET cards, ABS cards, Special varnished cards
Connectivity	USB, Ethernet
Encoding Options	Magnetic stripe, Contact and contactless smart card encoders
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	247 x 205 x 381 mm (9.72 x 8.07 x 14.99 in)
Power Supply	100-240 V, 50-60 Hz
