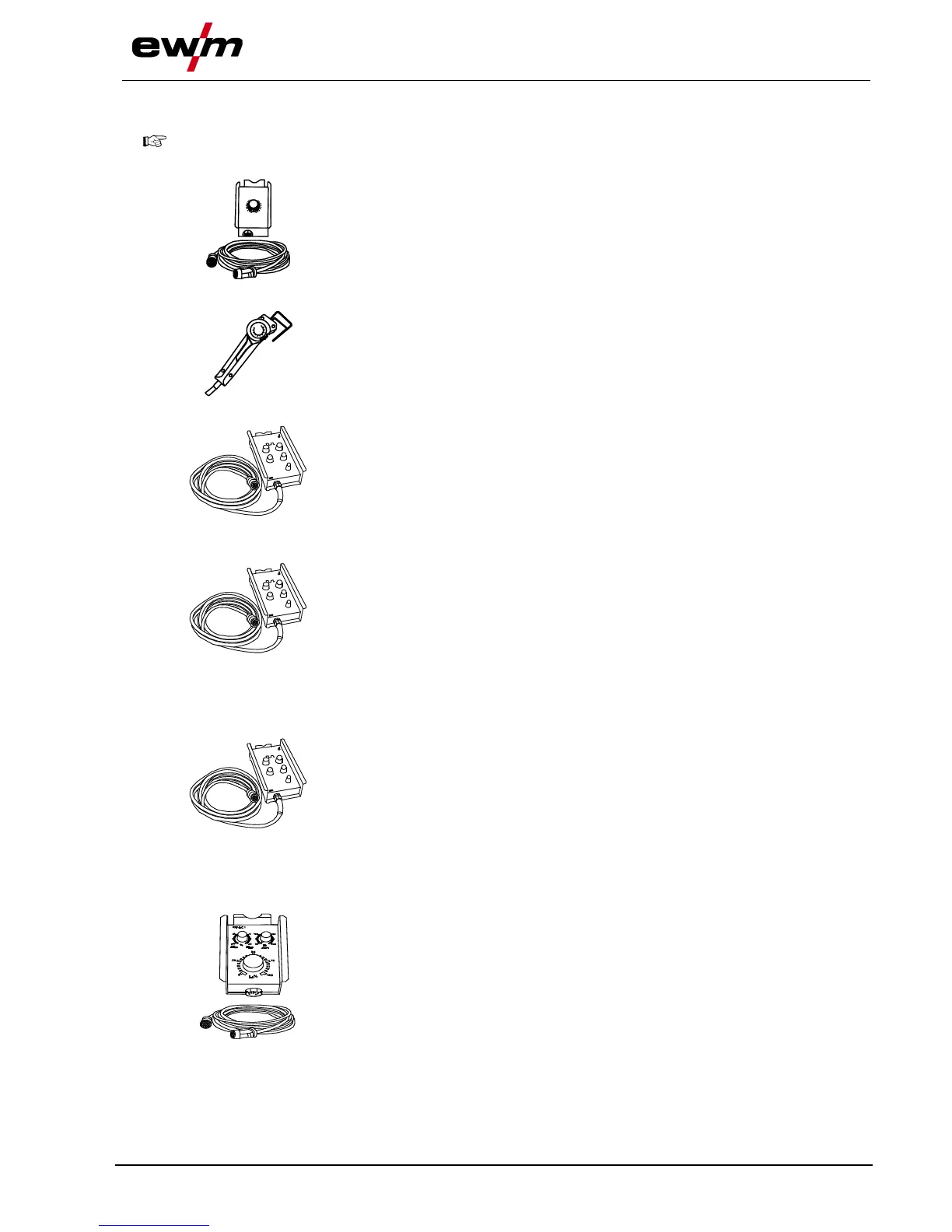

5.17 Remote control
The remote controls are operated on the 19-pole remote control connection socket (analogue).
5.17.1 Manual remote control RT1 19POL
Functions
• Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current on the welding machine.
5.17.2 RTG1 19POL manual remote control
Functions
• Infinite setting of the welding current (0% to 100%) depending on the main current
preselected at the welding machine
5.17.3 Manual remote control RTP1 19POL
Functions
• TIG/MMA
• Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current on the welding machine.
• Pulse/spot/normal
• Pulse, spot and break times are infinitely adjustable.
5.17.4 Manual remote control RTP2 19POL
Functions
• TIG/MMA.
• Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current on the welding machine.
• Pulse/spot/normal
• Frequency and spot times infinitely adjustable.
• Coarse adjustment of the cycle frequency.
• Pulse/pause ratio (balance) adjustable from 10% to 90%.
5.17.5 RTP3 spotArc 19POL manual remote control
Functions
• TIG / MMA.
• Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current on the welding machine.
• Pulse / SpotArc spots / normal
• Frequency and spot time infinitely adjustable.
• Coarse adjustment of the pulse frequency.
• Pulse/pause ratio (balance) adjustable from 10% to 90%.
5.17.6 Manual remote control RT AC 1 19POL
Functions
• Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current on the welding machine.
• AC frequency of welding current infinitely adjustable.
• AC balance (positive/negative half-wave ratio) can be set from +15% to -15%.
