Design and function
TIG Synergic operating principle
099-000115-EW501
17.06.2015
63

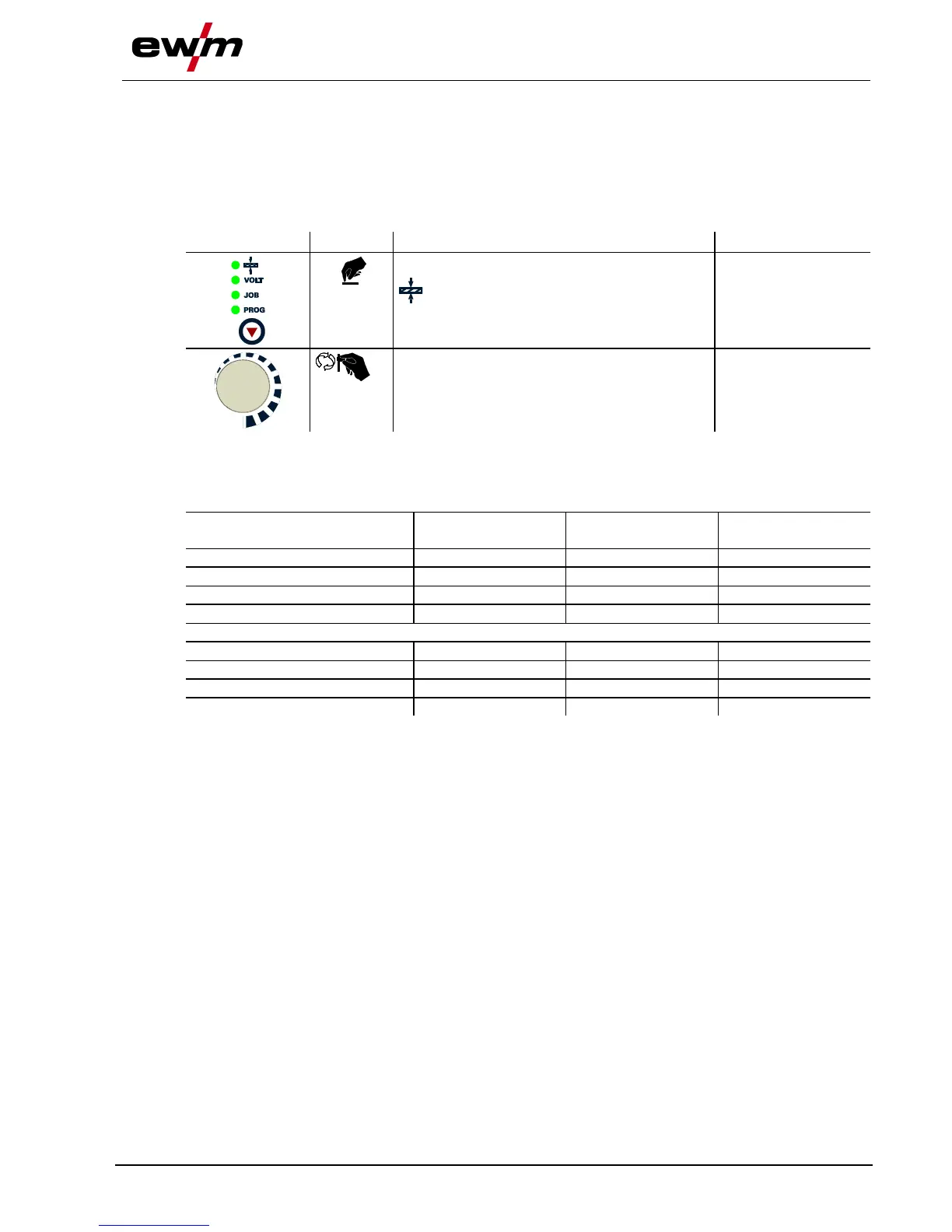

5.13.4 Select welding current
The user has two options for setting the required welding current:
• Using the sheet metal thickness
• Directly as welding current
The welding current is displayed in the left-hand display. The “Material thickness” parameter can
be selected in the right-hand display.
Control element
Action
Result
Display (right)
X x
Press button until signal light
Material Thickness comes on.
Material thickness in
mm is displayed.
Set welding current or sheet metal thickness.
Welding current and
sheet metal thickness
are displayed
5.13.5 Welding data display
The following welding parameters can be displayed before (nominal values), during (actual values) or
after welding (hold values):
“Left-hand display”
Parameter
Before welding
(nominal values)
During welding
(actual values)
After welding
(hold values)
Welding current



Parameter times

-
-
Frequency, balance

-
-
Parameter currents

-
-
“Right-hand display”
Material thickness

-
-
Welding voltage



JOB number

-
-
Program number

-
-
After welding the hold values are displayed. When changes are made to the settings (e.g. welding
current) after welding, the display switches to the relevant nominal values.
The right-hand display automatically switches over to the material thickness after approx. 4 seconds.
If the “Program number” signal light is on in addition to the “Material thickness” signal light, the user is in
program mode- See 5.15 Welding programs chapter.
If the “JOB number” signal light is on in addition to the “Material thickness” light, the user is in a JOB in
the free memory.
