EWM Tetrix 351 - Design and Function - TIG Cold Wire Welding (Continued); Intermediate Hose Package Connection for TIG Cold Wire

Design and function
TIG cold wire welding
099-000115-EW501
17.06.2015
43
5.9.4 Intermediate hose package connection

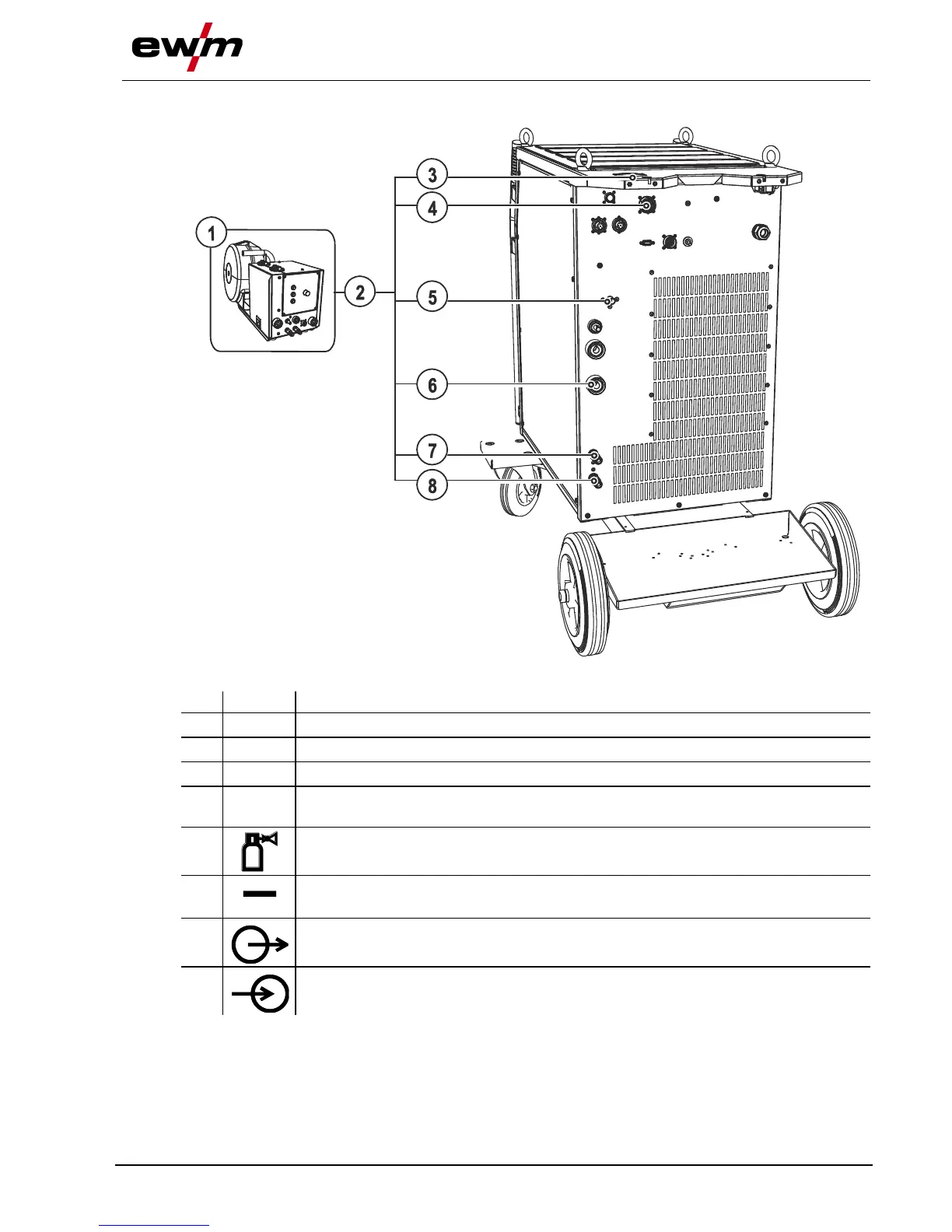

Figure 5-8
Item
Symbol
Description 0
1
Wire feed unit
2
Intermediate hose package
3
Intermediate hose package strain relief
4
X2
Connection socket (28-pole)
Control lead
5
Connecting thread (G¼")
Shielding gas
6
Connection socket (TIG)
Welding current, minus potential
7
Quick connect coupling (red)
coolant return
8
Quick connect coupling (blue)
coolant supply
