EWM Tetrix 351 - Rectifying Faults (Continued); Venting the Coolant Circuit Procedure

Rectifying faults
Vent coolant circuit
128
099-000115-EW501
17.06.2015

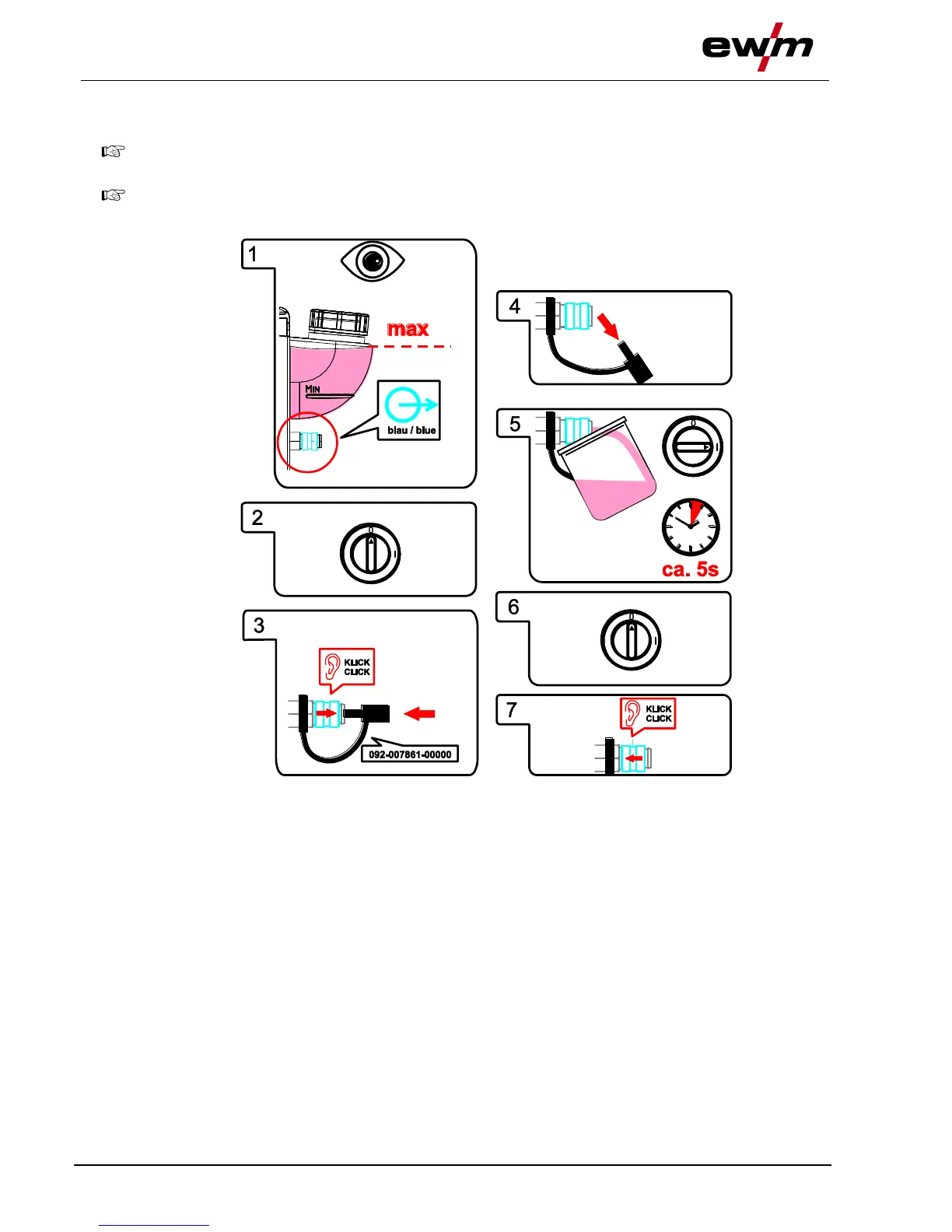

7.7 Vent coolant circuit
Coolant tank and quick connect coupling of coolant supply and return are only fitted in machines
with water cooling.
To vent the cooling system always use the blue coolant connection, which is located as deep as
possible inside the system (close to the coolant tank)!
Figure 7-3
