Design and function
Notes on the installation of welding current leads
099-000115-EW501
17.06.2015
35

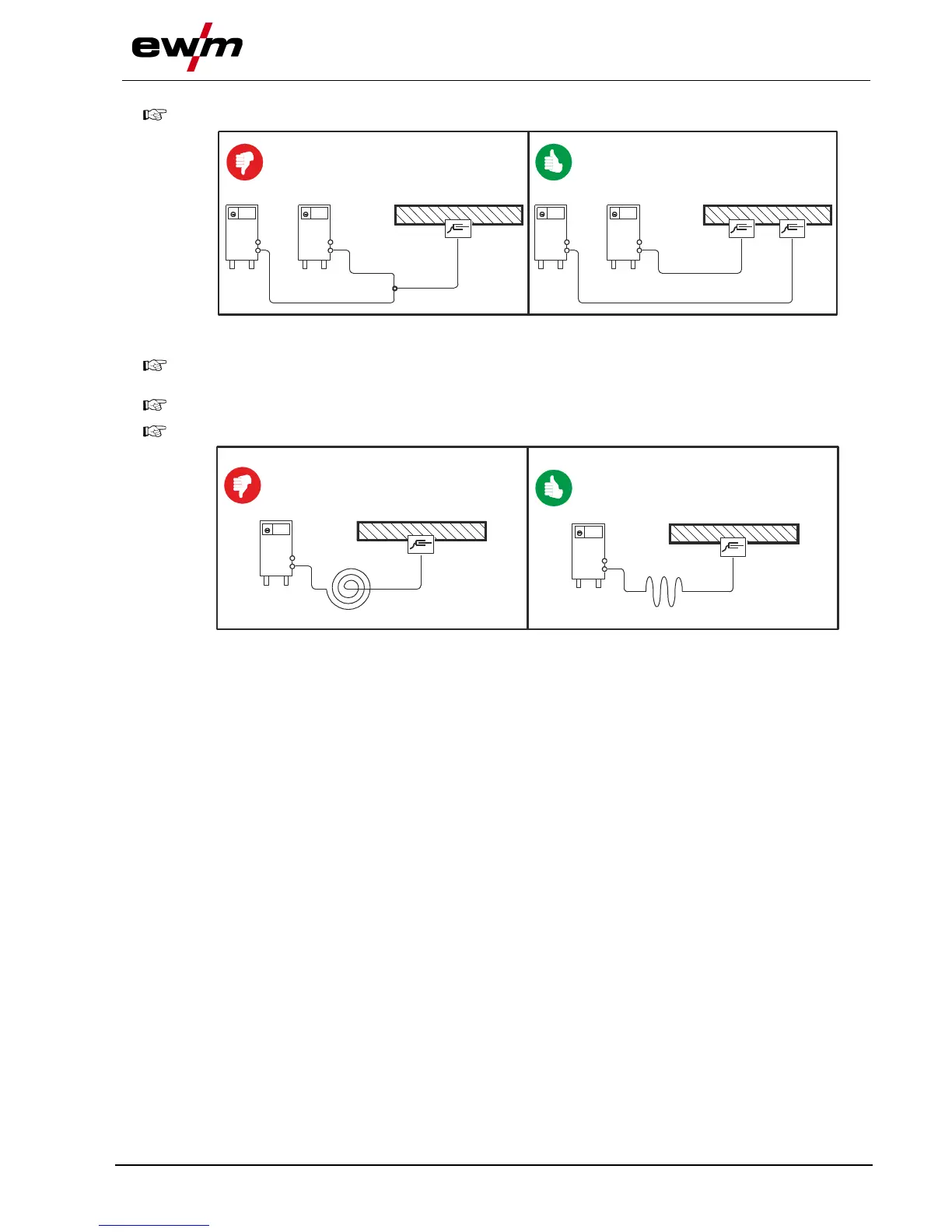

Use an individual welding lead to the workpiece for each welding machine!
Figure 5-2
Fully unroll welding current leads, torch hose packages and intermediate hose packages. Avoid
loops!
Always keep leads as short as possible!
Lay any excess cable lengths in meanders.
Figure 5-3
