Design and function
TIG Synergic operating principle
099-000115-EW501
17.06.2015
83

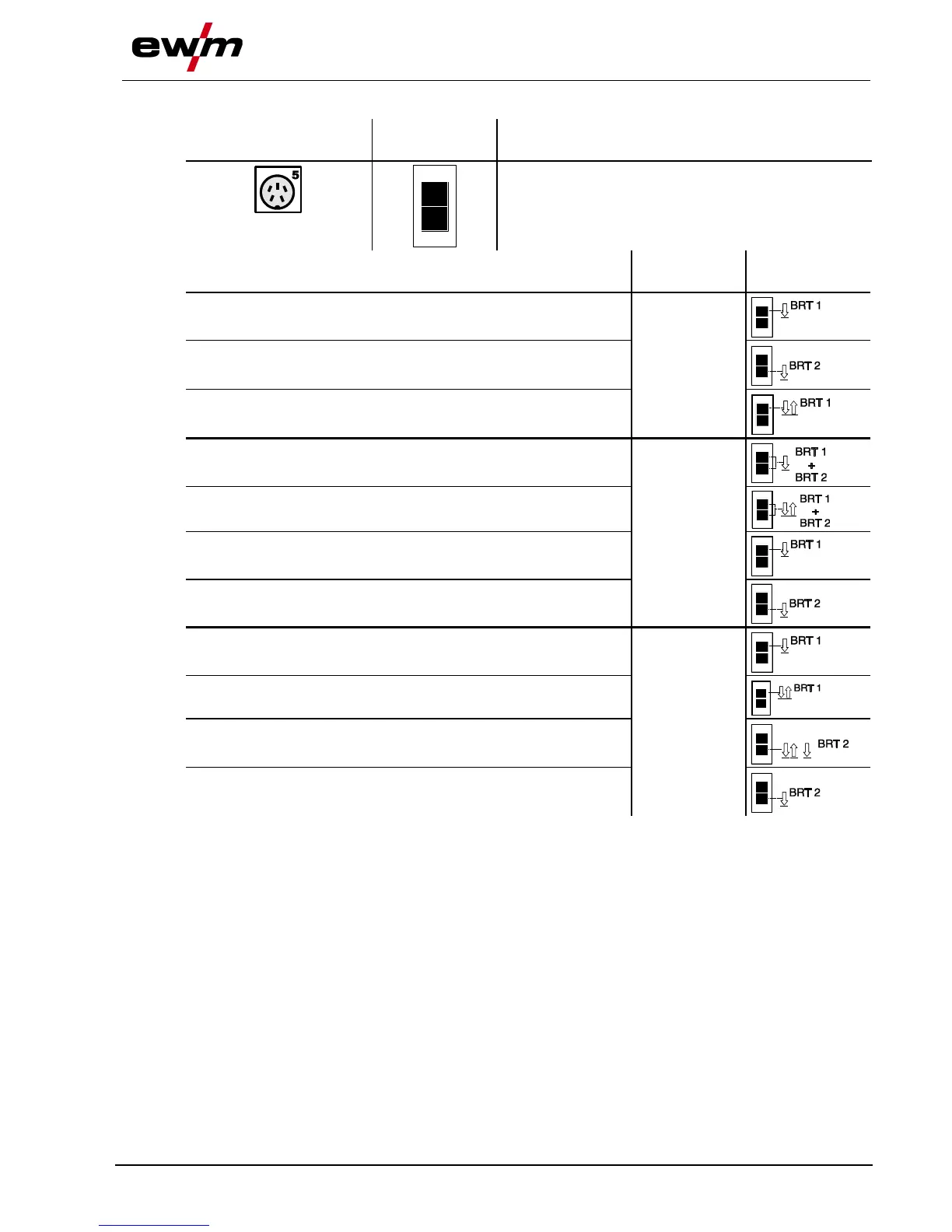

Standard torch with one rocker (MG rocker, two torch triggers)
Diagram
Operating
elements
Explanation of symbols
BRT 1 = torch trigger 1
BRT 2 = torch trigger 2
Functions
mode
Operating
elements
Welding current On/Off
1
(factory-set)
Secondary current
Secondary current (tapping mode) / (latched mode)
Welding current On/Off
2
Secondary current (tapping mode)
Up function
Down function
Welding current On/Off
3
Secondary current (tapping mode) / (latched mode)
Up function
Down function
