Using the Light Source

120 OX1

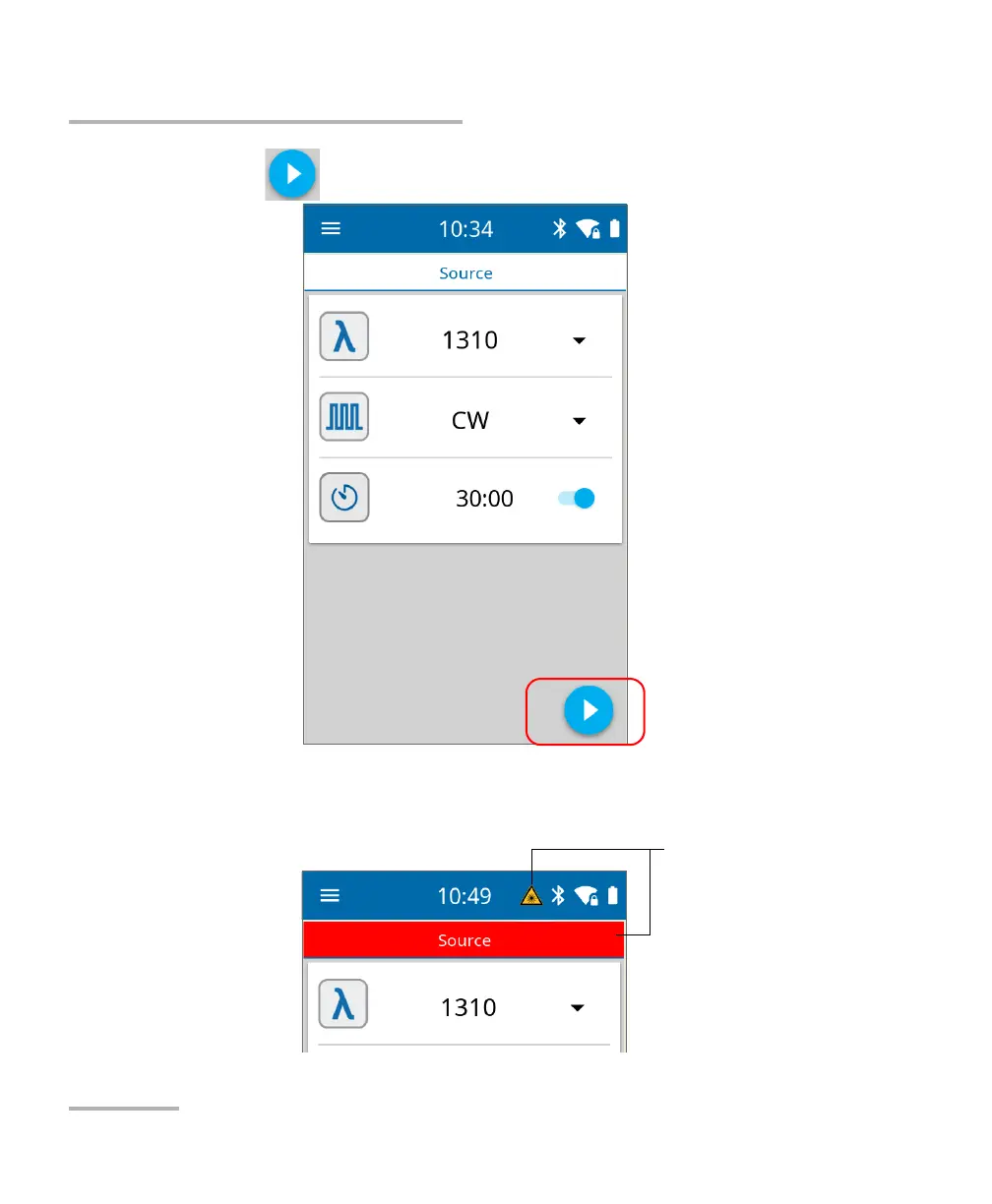

5. Tap to start the light emission.

A blinking icon and a red banner clearly indicate when the light source is

emitting.

Indicate the source is

emitting
