Working With Link Overview
Working With Link Overview

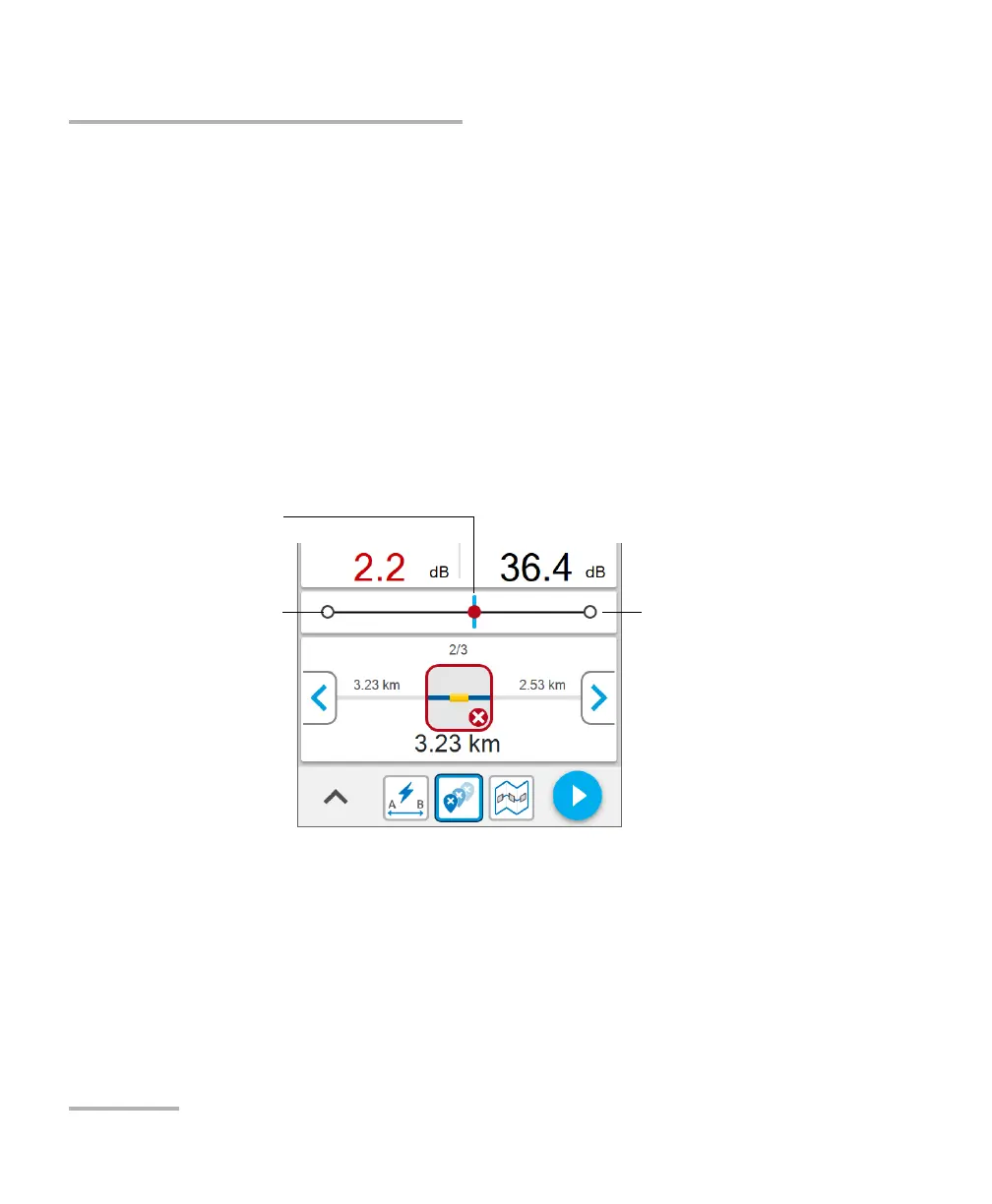

This graphic representation shows the entire link, all of its faults (Fault
Xplorer), or all of its detectable elements (Link Mapper), from the link start
(A) to the link end (B). The elements are displayed using a proportional
distance. During a Fault Xplorer acquisition, the OX1 flags elements that
could be potential faults.
When you select an element in the link overview, it is automatically
selected in the link view. See Working With Link View on page 99 for
details.
Note: The link overview is not available in Flash Advisor.
Link start (A)
Link end (B)
Selected element
