Setting up Your Unit

Optical Explorer 69

Working With Custom Pass/Fail Thresholds or EXFO Advisor

To configure custom thresholds or EXFO Advisor from Fiber

Xplorer:

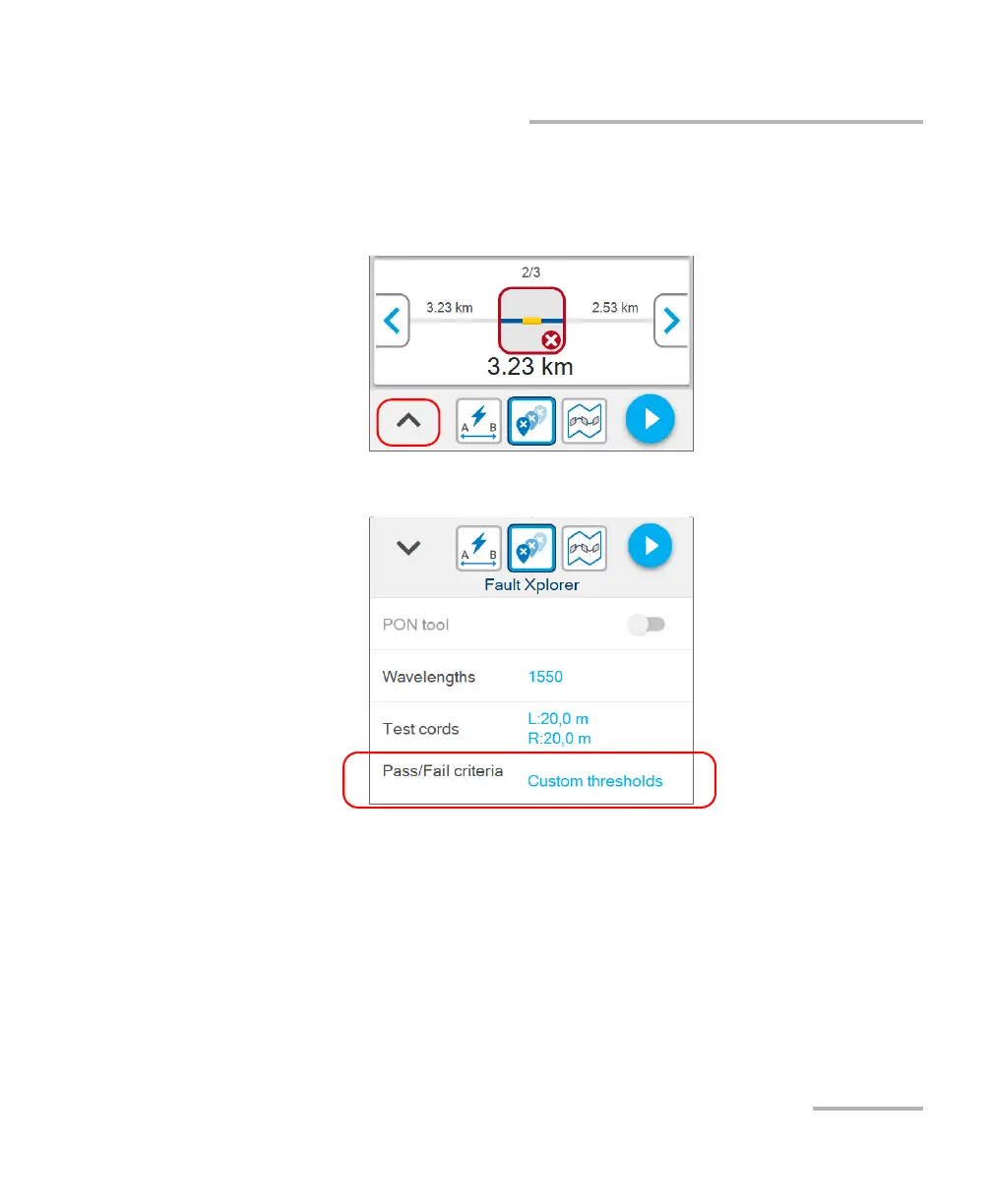

1. From Fiber Xplorer, tap the arrow to access the drawer.

2. Tap Pass/Fail criteria.
