Setting up Your Unit

80 OX1

Working With a Demarcation Section

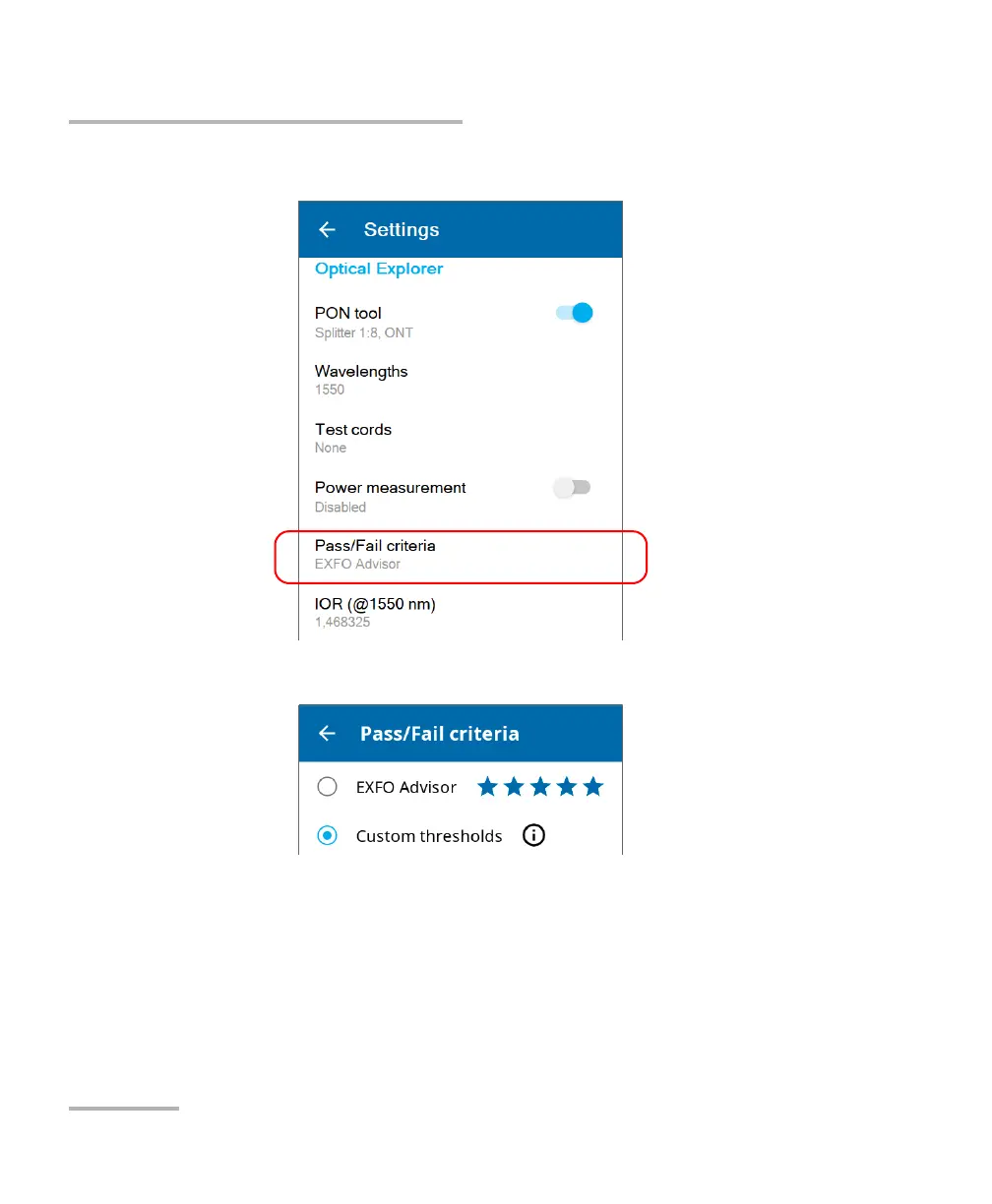

2. Under Optical Explorer, tap Pass/Fail criteria.

3. Ensure that Custom thresholds is selected.
