Expert Electronics SunSDR2 DX - Rear Panel Layout and Connectors

13
SunSDR2 DX User Manual
© 2020 Expert Electronics
FRONT PANEL DESCRIPTION
3

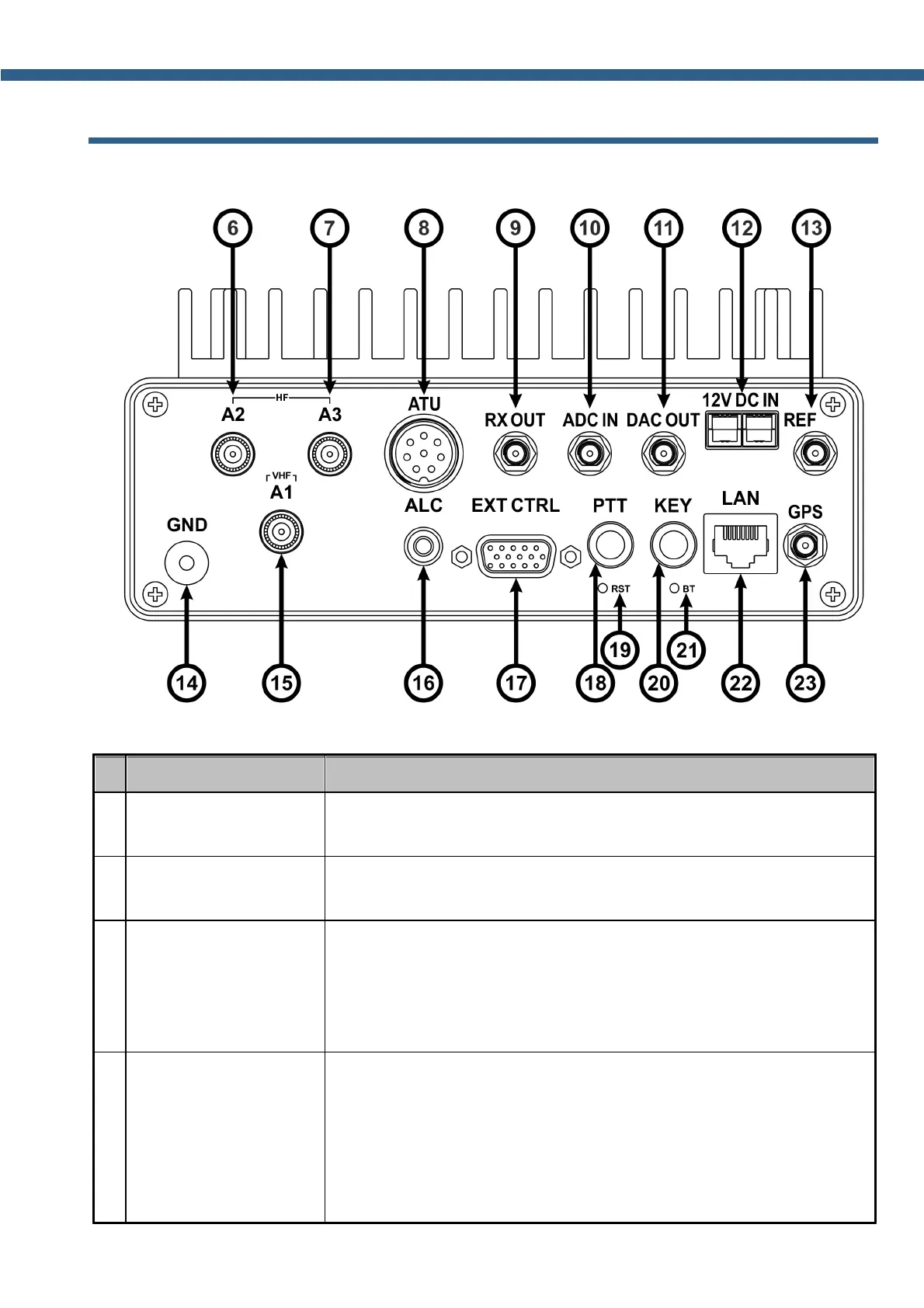

REAR PANEL DESCRIPTION
#
Name
Description
6,
7
A2 and A3 connectors
for HF antennas
Use these connectors when you want operate on HF or 6m band.
8
ATU
Connector for the external Antenna Tuner Unit, designed by
Expert Electronics.
9
RX OUT
Internal receiver's front-end output.
Warning! Improper use or higher voltage may damage the
transceiver!
10
ADC IN
Direct input, bypassing Band Pass Filters (BPFs). ADC IN
connector may be used for connection of the receiving antennas.
Between ADC IN and RX OUT you can put a transverter,
additional BPFs, preamplifier, attenuator etc.
