24
SunSDR2 DX User Manual
© 2020 Expert Electronics
CONNECTORS PIN-OUT
5
ExpertSDR2 SOFTWARE DESCRIPTION
The basic description of the software interface is presented in the Getting Started guide on our
web-site: eesdr.com.

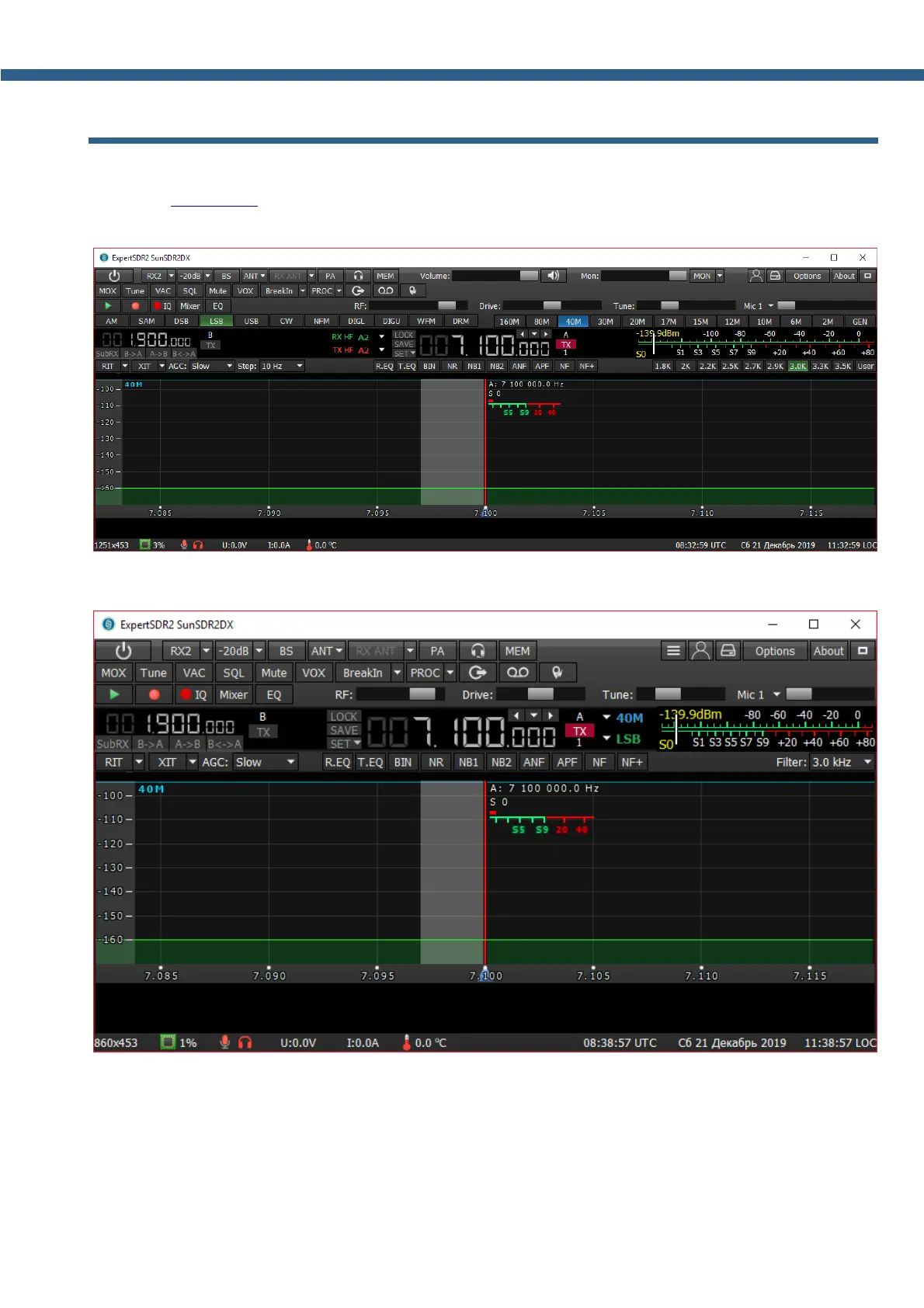

Standard layout:
Compact layout (software window is squeezed and compact mode enabled):
Software settings which won't be mentioned or addressed in this manual, are set by default or
provided to the user's self-study and experiments. All the unmentioned settings cannot cause
the fatal damage of the SunSDR2 DX transceiver's hardware, so you can safely experiment
with them. You're dealing with the software-defined radio – SDR, the main settings and signal
processing happens in the software.
