Farmtrac 6050 E - Dash Board; Combination Switch; Turn Signal with Hazard Light Switch off

33
!

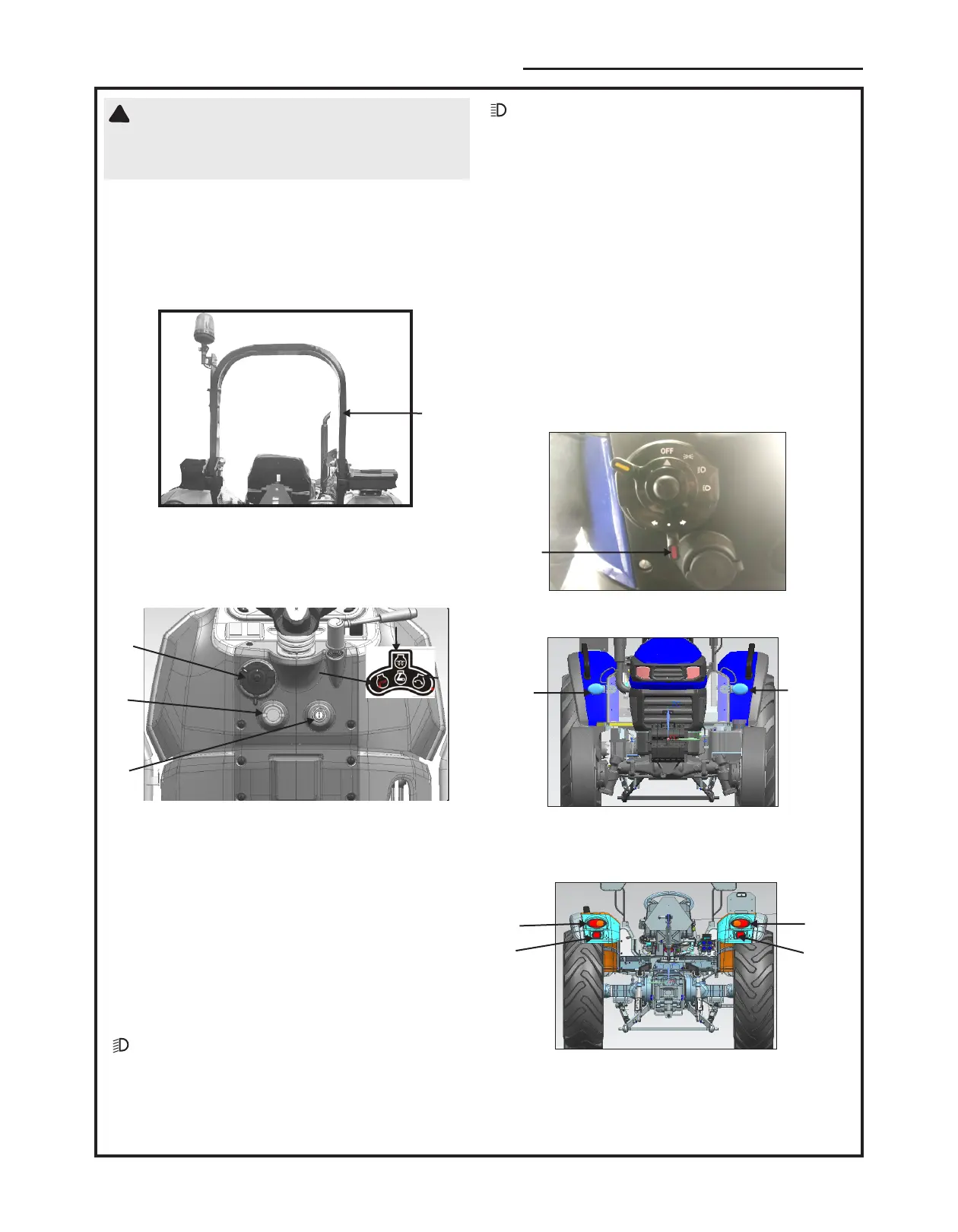

Figure -25
1. Combination switch 2. Mobile charger
3. Ignition Switch
3
2
1
1
2
3
3.12 Dash Board
Figure-24
1. ROPS
1
3.12.1 Combination Switch
The combination switch is of the rotary type and has
three modes when rotated in clockwise direction.
Position 1.
Ÿ Rotate combination switch clockwise.
Ÿ Night mode position lamp ‘ON’.
Ÿ
Position 2.
Ÿ Rotate combination switch clockwise.
Ÿ Low beam head lamp ‘ON’.
Ÿ Position lamp ‘ON’.
Ÿ Registration plate lamp ‘ON’.
Ÿ Farmtrac logo illuminated.
1
Figure-26
1. Turn Indicator Light Switch
1
Figure -27
1. Front Turn Light Indicator
1
Position 3.
Ÿ Rotate combination switch clockwise.
Ÿ High beam head lamp ‘ON’.
Ÿ Position lamp ‘ON’.
Ÿ Registration plate lamp ‘ON’.
Ÿ Farmtrac logo illuminated.
3.12.2 Turn Signal with Hazard Light Switch off.
1. Turn light indicator switch is in middle (off)
position turn switch left/right to operate left/right
turn light indicators.
2. When the left turn signal is activated without the
hazard lights, the indicated turning light (2,3) will
flash and the other (2*,3*) will stay on. Similar for
the right turn signal. Refer Figure No. 28.
CONTROL, INSTRUMENTS AND OPERATION
Figure -28
2, 2*. Rear Turn Light Indicator
3,3* Rear Light
2
2*
3*
3
WARNING : Tractors equipped with a ROPS also
have a seat belt fitted. Always use the seat belt with a
ROPS installed. Do not use a seat belt if the tractor is
not equipped with a ROPS.
To lengthen the belt, tip the buckle away from the belt
and pull on the buckle. With the belt fastened around
you, pull the free end of the belt until it is a snug fit.
If your tractor is fitted with ROPS, it must be maintained
in a serviceable condition.
