42

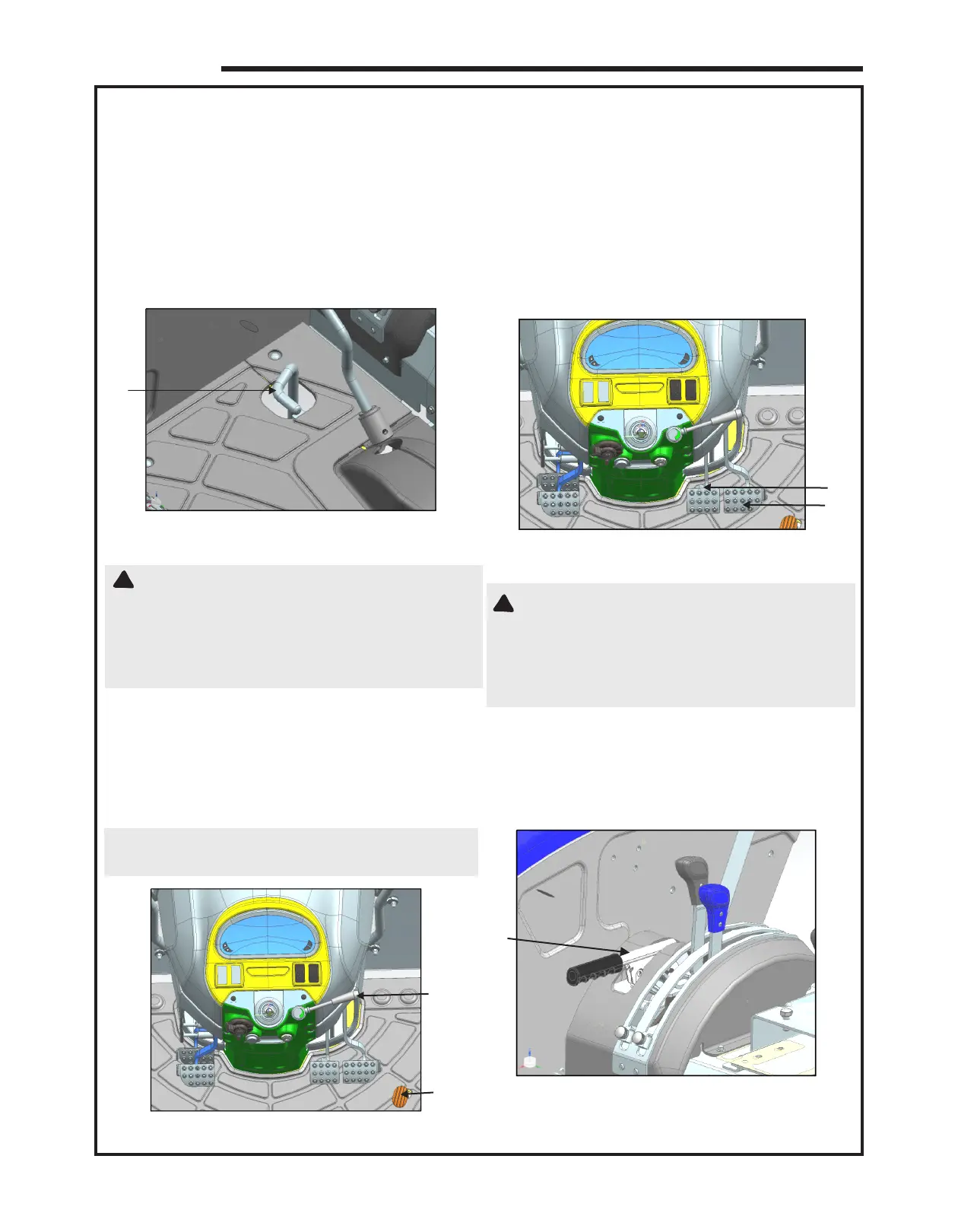

5.1 Differential Lock
Differential Lock is present on the right side of the
platform below the main gear lever.
In field conditions including wheel slip, hold down the
differential lock pedal, until the lock is felt to engage. If
conditions cause a rear wheel to spin at different speed,
reduce the engine speed to idle before engaging the
differential lock.
1
Figure-39
1. Differential Lock
5.2 Foot Accelerator
The foot accelerator may be used independently of the
hand throttle to control the speed of the tractor. It is
recommended that you use the foot accelerator when
driving on the highway.
NOTE : When it is required to use the foot accelerator,
set the hand throttle to the idle position (fully forward).
!
1
Figure-40
1. Foot Accelerator 2. Hand Throttle
2
5.3 Foot Brakes
The foot brake pedals activate the rear wheel brakes
and may be operated independently to aid turning in
confined spaces or together for normal stopping. When
operating in the field, the brake pedals may be
unlocked. However, due to the close proximity of the
pedals to one another, it is still possible to apply both
brakes together, when required.
2
Figure-41
1. Foot Brake 2. Locking Latch
1
OPERATION
WARNING : Never engage differential lock at
speeds above the speed of 5 km/hr or while turning the
tractor.
Never engage the differential lock when driving on road.
Repress one or both brake pedals to disengage the
differential lock.
CHAPTER - 5 FOOT CONTROLS
!
Figure-42
1. Parking Brake
1
WARNING : For your safety, always lock the
brake pedals together when traveling at transport
speeds, or on a highway or if a trailer is attached. To
lock the pedals together, slide the latch across to
engage in the hole in the underside of the right-hand
pedal.
5.4 Tractor Parking
Always park the tractor clear off the road with gear
lever in neutral position and apply the parking brake.
To Next Page
