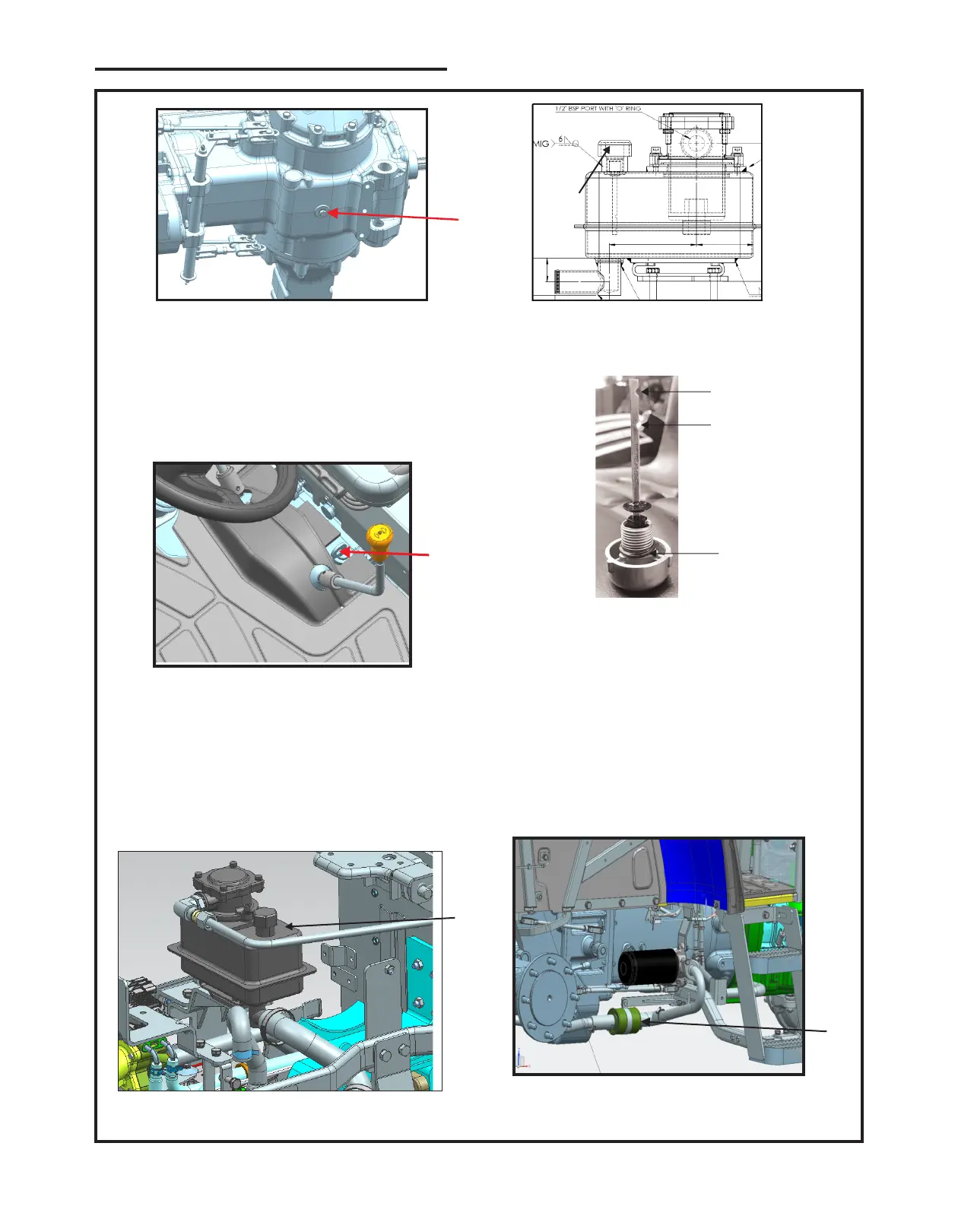

Figure 33.
Power Steering Oil Reservoir
Breather
& dip stick
Max.
Min.
2
Figure 35.
2. Power Steering Dipstick & Breather
Figure 34.
2. Power Steering Dipstick & Breather
6.22 Hydraulic Strainer
The strainer, which is located below the clutch pedal
linkage assembly should be inspected and cleaned or
replaced as shown in figure 32, as necessary.
This service should be carried out by your authorized
dealer.
63
1
LUBRICATION AND MAINTENANCE CHART
1
Figure 31.
Rear Axle / Transmission Oil Drain
1. Drain plug
After refilling the rear axle, start the engine to allow the
oil to circulate through out the vehicle. After a minute,
stop the engine and recheck the oil level by dipstick
(1). If requires top up to the upper mark of the dipstick.
Figure 32.
Transmission oil level
1. Dipstick
1
6.21 Power Steering Oil- First Change after 300 hrs
then after every 1200 hrs.
Check power steering oil level using dipstick (2). It
should be between min. & max as shown in figure 29.
Change oil after every 300 hrs.
Figure 36.
1. Hydraulic Stainer
1
