43
Parking brake lever is situated on the RH side of the
driver seat. To operate the parking brake, press the
button on the parking brake lever, pull the lever up.
To free the parking brake, press the button on the
top of the lever and press the lever down.
The parking brake lever is equipped with an alarm which
starts beeping when the operator gets off from driver
seat leaving the parking brake in disengaged position.
IMPORTANT : Ensure that the parking brake is fully
released before driving off.
5.5 Clutch
When the clutch pedal is depressed, the drive between
the engine and transmission will be disengaged. Use
the clutch pedal to transfer engine power smoothly to
the driving wheels when moving off from a standstill.
Always depress the clutch pedal to engage or
disengage a gear levers.
Clutch pedal is equipped with neutral safety start switch
which ensures that the tractor will only start when the
clutch pedal is pressed.
Engage clutch pedal lock when tractor is not in use for
long period of time or during storage of tractor.
NOTE : Avoid resting your foot on the clutch pedal when
operating the tractor. Such action will lead to early clutch
failure.
1

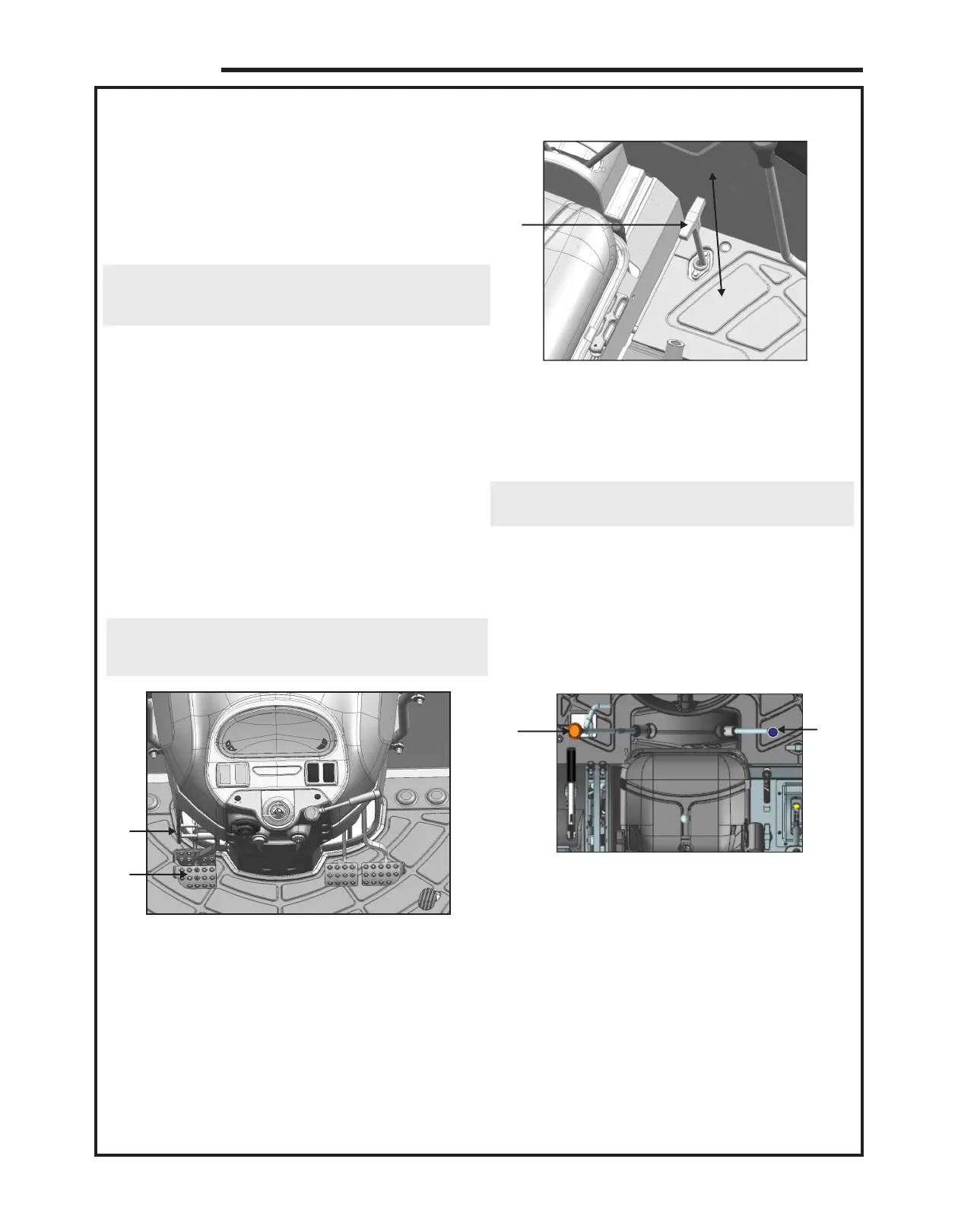

Figure-43
1. Clutch Pedal 2. Clutch Pedal Lock
Four Wheel Drive Lever
1
Figure-44
1. 4wd/2Wd Engage lever
A
B
4WD
2WD
Press the clutch & pull the lever (1) up to engage 4wd.
Press the lever (1) down to engage 2wd.
Note: Do not engage 4WD when the tractor speed is
more than 8 km/hr.
5.6 Transmission
The transmission levers are at the side of the gear
box. High & Low range can be selected by shifting the
lever (1) in backward & forward direction respectively.
The both transmission gear levers (1 & (2) operates in
the pattern as shown in figure 34.
Figure-45
1. Range (High Low Lever) 2. Main Gear lever
2
1
OPERATION
2
Shuttle lever (3) is present on the left hand side of
operator seat. It is used to reverse the current speed.
