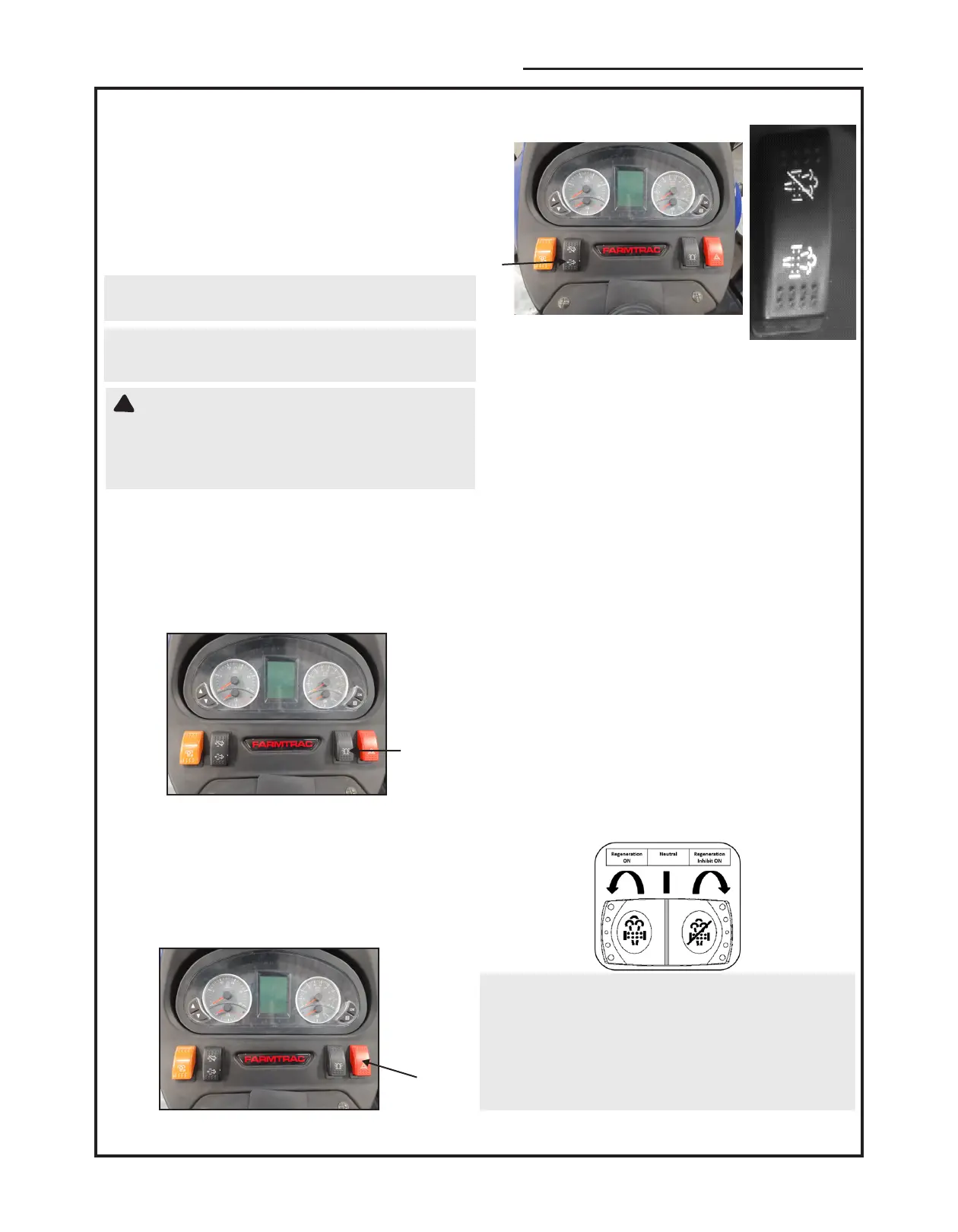

3.14 Hazard Lamp Switch
Press the switch to operate both turn signals
simultaneously. The switch gets internally illuminated
and turn signal indicator lights will flash in unison with
turn signal indicator lights on the instrument panel.
Figure -30
1. Hazard Lamp Switch
3.15 DPF Regeneration And Inhibit Switch
Figure-31
1. DPF Switch
1
Position 2
Position 1
Off
DPF regeneration and inhibit switch is toggle type
switch which is in OFF condition. It has 3
positions-
Position 1- Assisted or Manual regeneration
occurs
Center - OFF
Position 2- DPF regeneration inhibits or restricted.
Following are the conditions when DPF inhibit
switch should be pressed
Ÿ Customer in a Location Where in Manual/Stationary
Regeneration might be dangerous. Example - In a
field wherein grass growth is high, regeneration
might cause burning due to high Exhaust
Temperatures or Customer is at Fire Hazard Zone.
Ÿ Field Conditions or weather not favourable to
continue Auto regeneration.
Action to be taken by Operator to inhibit the
Regeneration
Ÿ Regeneration inhibit switch is on/off type switch.
Ÿ If operator wants to inhibit the regeneration, then
inhibit switch should be pressed.
Ÿ Unless and until the switch is press in the reverse
direction regeneration will be inhibited.
NOTE: Disabling the exhaust filter cleaning request is
not preferred. Disable the automatic exhaust filter
cleaning only when necessary. Whenever possible,
cleaning should be allowed and the diagnostic gauge
should be left in the auto mode. When left in auto
mode, soot build-up in the exhaust filter system will be
at a minimum.
1
!
34
3.12.3. Key-Start Switch
The key operated switch actuates the starting motor.
Always use additional lighting on the mounted
implement if this conceals the turn signals and other
lights at the rear of the tractor.
Starting the Engine
A three-position key-start switch is installed on all the
tractors.
IMPORTANT : Never push or tow the tractor to start
the engine. Doing so may overstress the drive train.
NOTE: A safety start switch prevents operation of the
starting motor unless the transmission high/low lever
is in the neutral (N) position & clutch pedal is pressed.
WARNING : Start the tractor only from the
driver's seat. If the key-start switch is bypassed, the
engine may start inadvertently with a gear selected
and cause sudden and unexpected movement of the
tractor or a tractor runaway.
3.13 Beacon Lamp Switch
The switch is present on the right side of the dash
board. Press the switch in down position to switch ‘ON’
the canopy lamps & in upward position to switch ‘OFF’
the canopy lamps.
Figure-29
1. Beacon Lamp Switch
CONTROL, INSTRUMENTS AND OPERATION
