36
Figure-36
1. Battery Isolator in on Position
1
OFF POSITION
ROTATE CLOCKWISE
TO TURN OFF
ON POSITION
ROTATE COUNTER
CLOCKWISE TO TURN ON
Figure -37

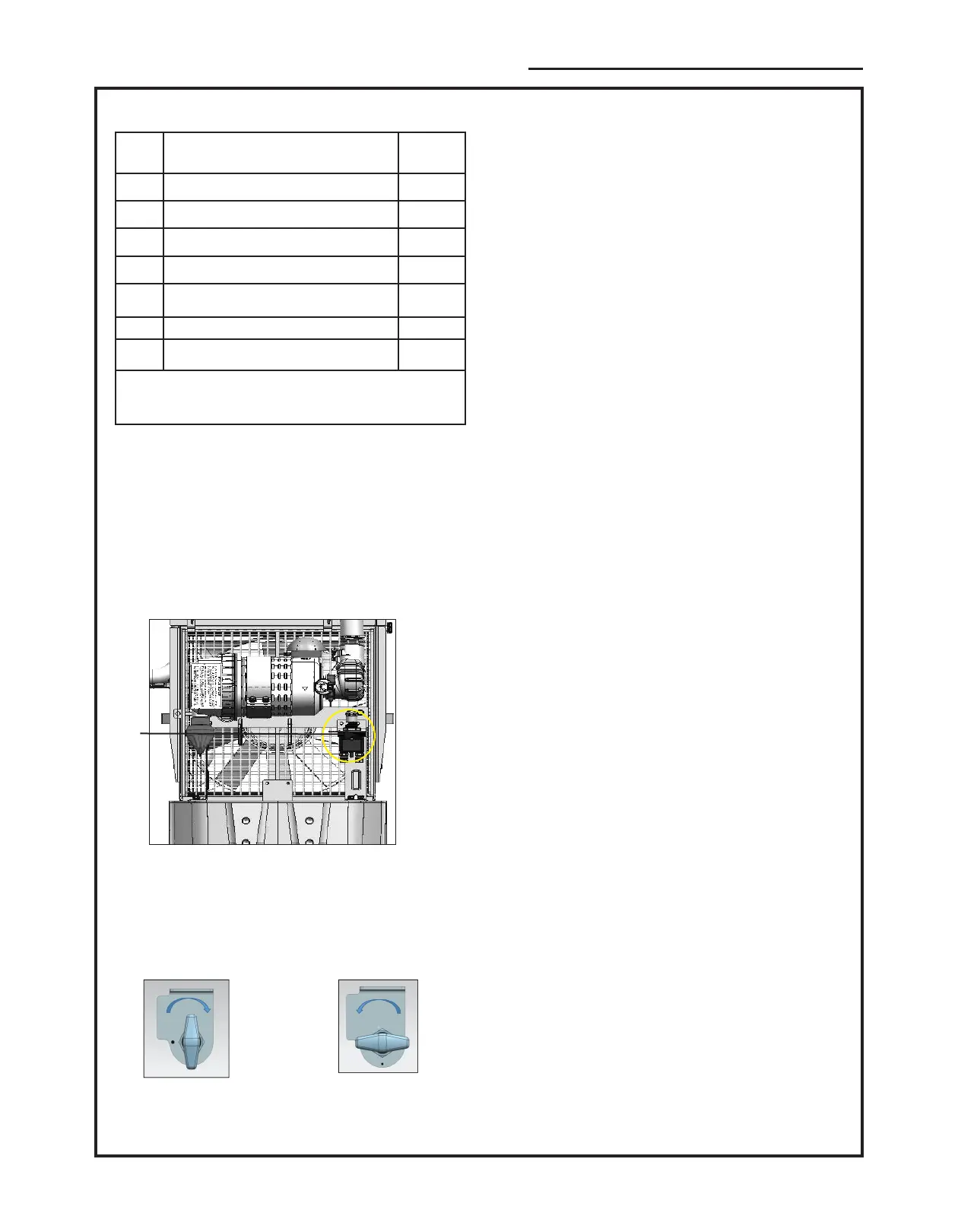

3.21 Battery Isolator
Battery isolator is located under the hood in front of the
radiator, open the hood to access the battery isolator. It
is recommended to use the battery cut off lever to cut
the battery connection from other electrical equipment
during storage period of the tractor. This will enhance
the battery life.
CONTROL, INSTRUMENTS AND OPERATION
Left-hand direction indicator light
Rear fog light
Common return
Right-hand direction indicator light
Yellow
Blue
White
Green
Brown
Red
Black
Core insulation
colour
(for information)
a The rear registration plate illumination device shall be connected
such that no lamp of the device has a common connection with
both contacts 5 and 7.
Contact
No.
Function
1
2
3
4
5
6
7
Left-hand rear position and marker lights,
and rear-registration plate illumination device"
Stop lights
Right-hand rear position and maker lights,
and rear registration plate illumination device"
TABLE -1 CONTACT ALLOCATION
