Farmtrac 6050 E - Brake Pedal Free Play Adjustment; Grease Fittings and Pivots (from 1 to 6)

58

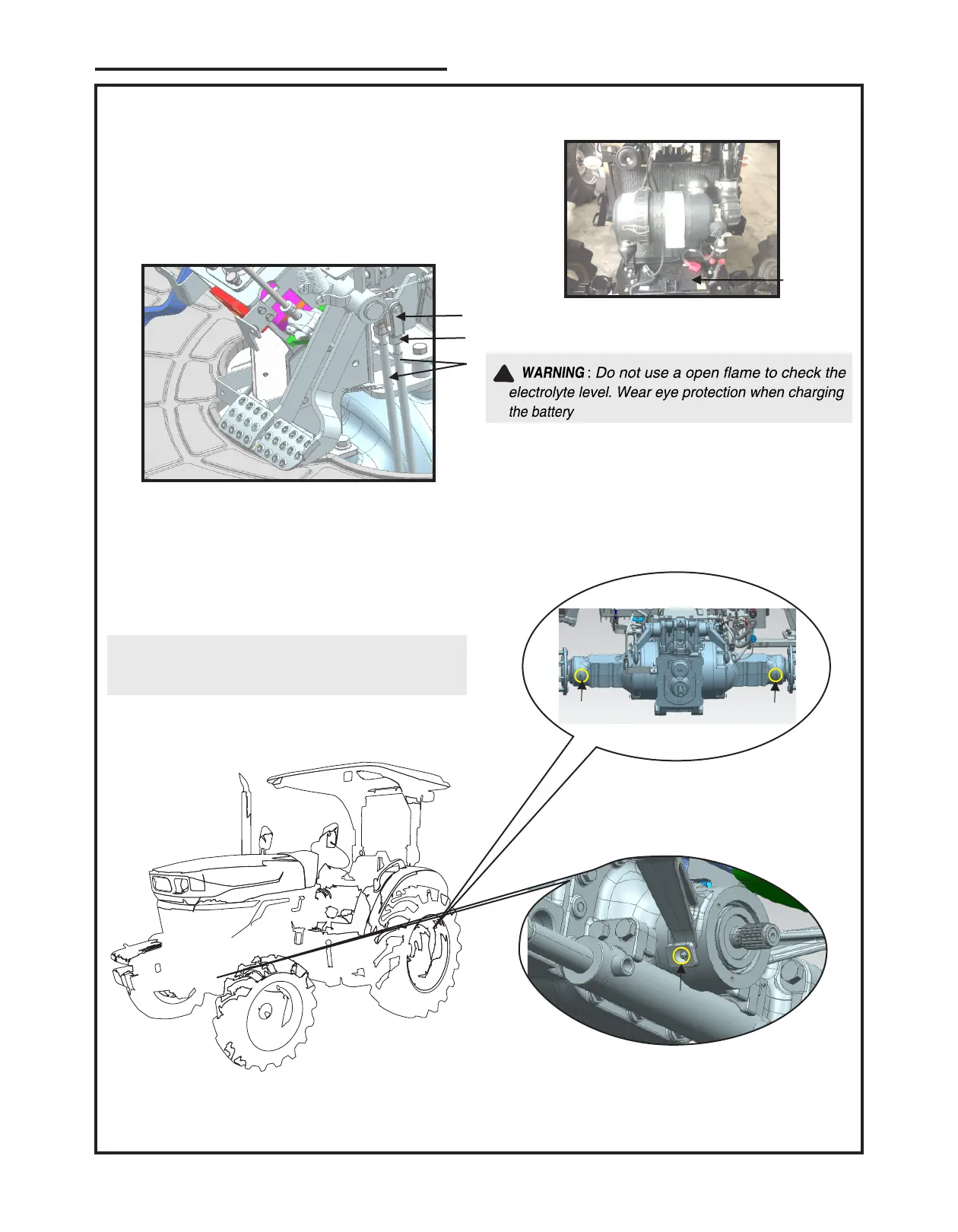

Figure 9. Brake Pedal Free Play
Split pin1. 2. Lock Nut 3. Adjustment Rod
2
6.10. Brake Pedal Free Play Adjustment
Check brake free play. it should be (22-25 mm) at the
brake pedal. if adjustments is required, loosen the
locknut and remove the split pin and clevis pin. Turn
the rod to lengthen or shorten the adjustment rod (3),
as require, Secure the split pin and tighten the locknut
(2).
1
3
!
.
Figure 10.
1. Battery
1
LUBRICATION AND MAINTENANCE CHART
Battery
Figure 11
2. LH & RH rear
axle greasing point
2
2
Figure 12
3. Front axle greasing point
3
FARMTRAC
60
50E
6.11 Grease Fittings and Pivots (From 1 to 6)
Oil all pivots and apply grease to the lubrication
fittings, as shown below.
NOTE: All grease fittings and pivots should be
lubricated daily when operating in wet land
conditions.
