6.5. Radiator Matrix
Clean the radiator matrix with compressed air not
exceeding 100 psi. (7 bar).
Any matrix blocked with oily substances may be
cleaned with a detergent solution, preferably applied
with a high pressure washer.

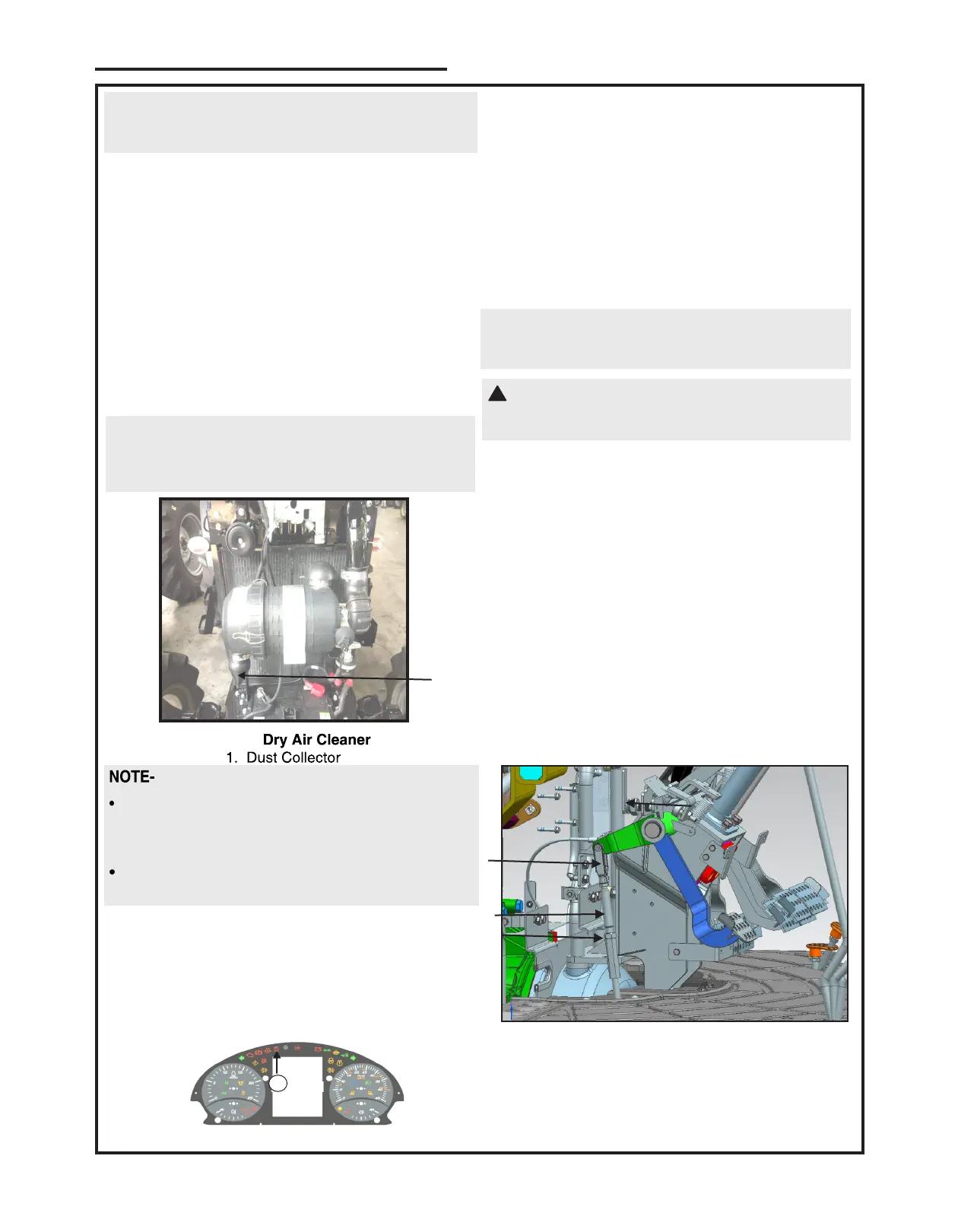

6.6 Dry Air Cleaner Dust Collector (Where
applicable)
A rubber dust collector protrudes beneath the dry air
cleaner body periodically pinch the dust collector
which will open and discharge any accumulated dust.
IMPORTANT : The are cleaner should be checked
daily or more often when operating in dusty
conditions. In extreme conditions, it may be necessary
to service the air cleaner two or three times
Figure 7.
Replacement period for Outer element is the
service indication or after 1 year which ever
is earlier.
Inner element should be replaced only after
replacing the Outer element 3 times.
6.7.1 Air Cleaner
The function of the air cleaner is to remove impurities
from the air while allowing sufficient volume of air to
enter the engine and ensure complete combustion of
the fuel.
The air cleaner will only fulfill this function if it is
correctly and regularly maintained. A poorly
maintained air cleaner will result in loss of power,
excessive fuel consumption and a reduction in engine
life.
NOTE : Do not remove or disturb the inner element.
The inner element should be serviced only by an
Authorized Dealer.
WARNING : If air cleaner restriction warning light
comes on during tractor operation, stop the engine
and replace the outer element of air cleaner
7.8 Front and Rear Wheel Nuts
Check the front and rear wheel nuts for tightness using
a torque wrench and torque multiplier, where
necessary. The specified torque figures are as follows:
Front disc to hub nuts 191.7 lbf. ft (260 Nm)
Rear disc to rim nuts 180 lbf. ft. (225 Nm)
Front disc to rim 165.9 lbf. ft. (225 Nm)
6.9 Clutch Pedal Free Play
Check clutch free play. it should be (22-25 mm) at the
clutch pedal. if adjustments is required, loosen the
locknut and remove the split pin (1). Turn the clevis to
lengthen or shorten the adjustment rod (2), as require,
Secure the split pin and tighten the locknut (3).
!
1
1
2
3
Figure 8. Clutch Pedal Free Play
1. 2. Adjustment Rod 3. Lock Nut Split pin
1
6.7 Air Restriction Warning Light
When this lamp lights up, clean or replace the outer
element of dry air cleaner. If light comes on during
tractor operation when replacement of element is not
immediately possible, just clean the element and
reduce the engine speed so on to prevent the lamp rom
lighting.
1. Clogging Sensor Light Indication
1
