35

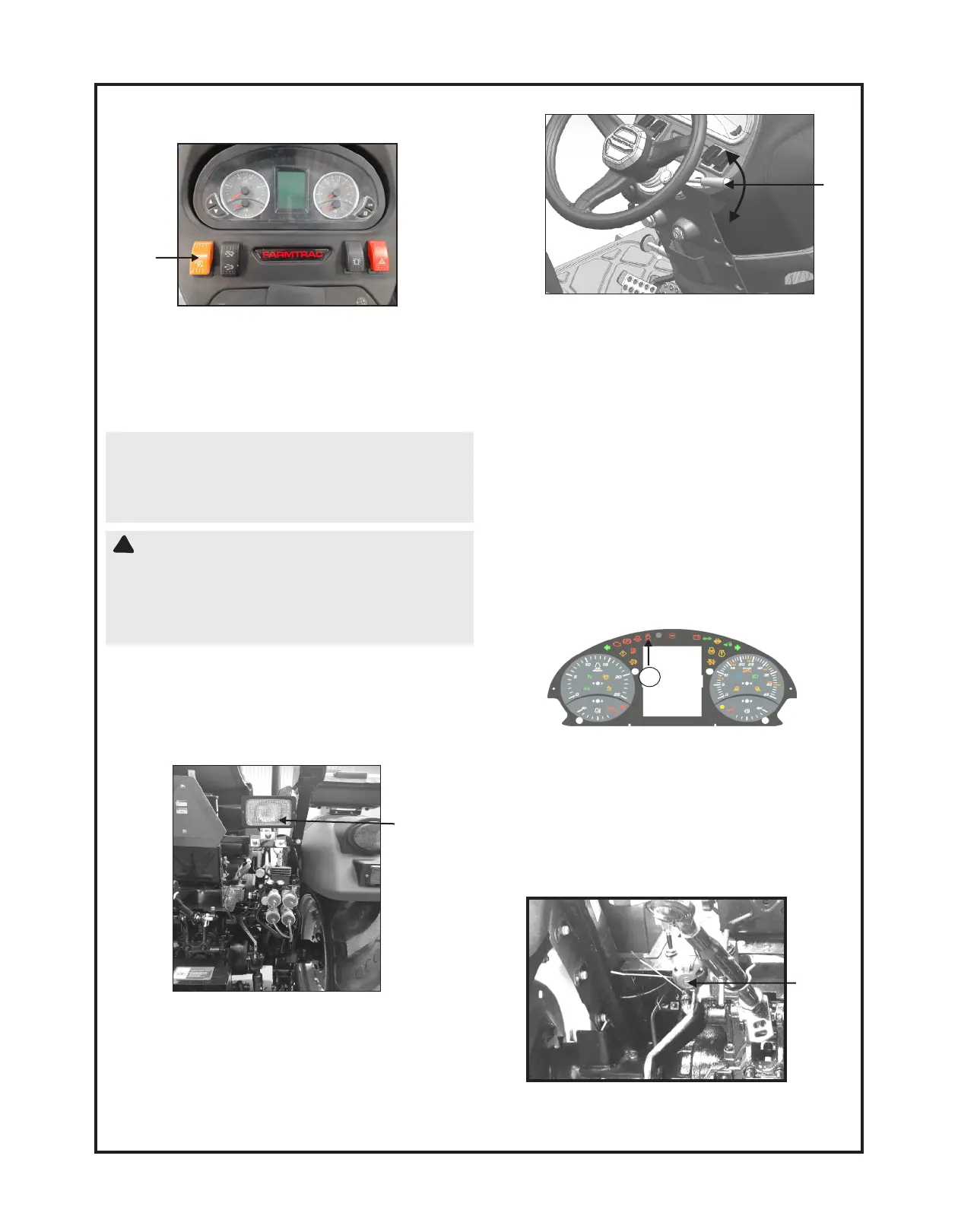

3.18 Hand Throttle
With the engine running, pull the throttle lever
rearwards to progressively increase engine rpm. Push
the throttle lever forward to decrease the engine
speed.
Figure -33 1. Hand Throttle
Figure-32 1. Plough Lamp
1
1
Decrease
Increase
Figure-34
1. Clogging Sensor Light Indication
1
1
Figure -35
2C Seven-Terminal Trailer Socket
CONTROL, INSTRUMENTS AND OPERATION
OPS bypass switch keep the tractor running even
after getting off from the seat for working on stationary
PTO applications like wood chipper etc. The switch is
present on dashboard.
NOTE : When the operator leaves the driving seat, the
vehicle will shut off automatically within 7 sec.
Tractor is equipped with warning sound, in. Case if
operator is leaving operating seat without applying
parking brake
WARNING : It should be used only when it is
necessary get off from tractor. During PTO running
condition, around the implement, on one should enter.
This switch is not an auto returning switch therefore
after completion of activity, by -pass switch to be
placed in its of mode.
3.17 Plough Lamp
It is present on rear end of tractor. It is provided with a
push button. Plough lamp glows irrespective of key
start switch is in ‘ON’ or ‘OFF’ position.
Ÿ Always cut-off battery power be when the tractor is
not operated for long duration.
Ÿ Do not cut off battery power while flashing the ECU.
3.19 Air Restriction Warning Light
When this lamp lights up, clean or replace the outer
element of dry air cleaner. If light comes on during
tractor operation when replacement of element is not
immediately possible, just clean the element and
reduce the engine speed so on to prevent the lamp
rom lighting.
3.16. OPS (Operator presence switch)
1. OPS bypass switch
1
3.20 Seven-Terminal Trailer Socket
This socket allows lights, turn signals and other
electrical equipment on a trailer or implement to be
connected. This is fitted at the rear of driver's seat.
!
To Next Page
