FARO
®
Laser Scanner Focus
3D
X 130 Manual
January 2014
45
Chapter 5: Getting Started
Setting the Scan Range
(Home > Parameters> Horizontal / Vertical)
Vertical area - The size of the vertical scan area in degrees. Use the left up and
down buttons to change the vertical start angle, use the right up and down buttons
to adjust the vertical end angles.
Horizontal area - The size of the horizontal scan area in degrees. Use the left
buttons to change the horizontal start angle, use the right buttons to adjust the
horizontal end angles.
Default Area button - Click to reset the values to the default scan area (vertical
from -60° to 90° and horizontal from 0° to 360°).
The rectangle in this view illustrates the full scan area. If there are scans on the
inserted SD card, the preview picture of the last recorded scan is displayed. If
there is no preview picture available, a grid is displayed, where the space
between the horizontal and vertical lines is equivalent to 30°. The yellow
rectangle illustrates the selected scan area.

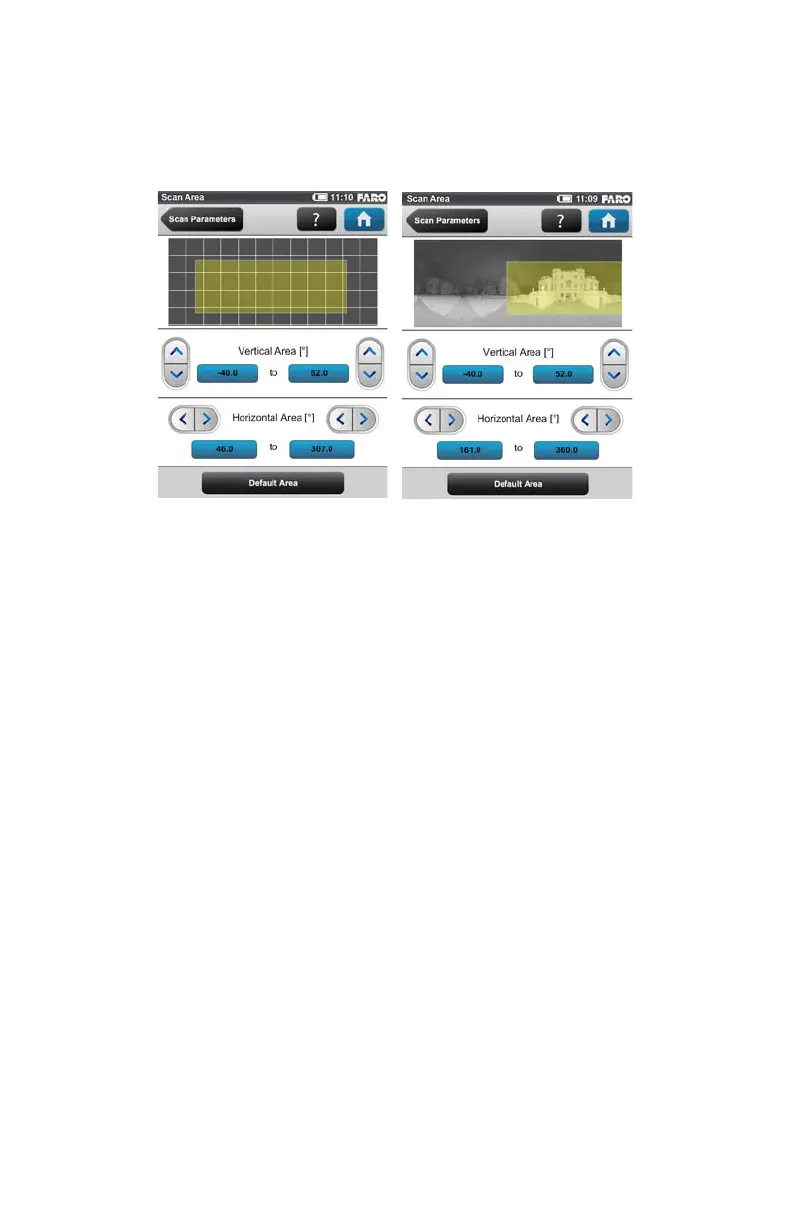

Figure 5-19 Setting the Scan Range
