FARO
®
Laser Scanner Focus
3D
X 130 Manual
January 2014
77
Chapter 6: The Focus
3D
X 130 Controller Software
The information, which scanner operator has recorded which scans, might be
useful for the person who is post processing the scans; especially when there are
several scanner operators working on the same scan project.
You are able to assign scanner operators to the captured scans. To do this, select
the operator in the operators list. You might have to create the operator first if it
does not already exist. The name of the selected operator will then be stored in
the metadata of the next scans and can be accessed in SCENE during the post
processing of the scans.
Creating an Operator
To add a new operator, click the add button. You can also add new operators by
duplicating an existing operator. To do this, select the operator you want to
duplicate and click the duplicate button. A new screen appears to enter the
operator details.

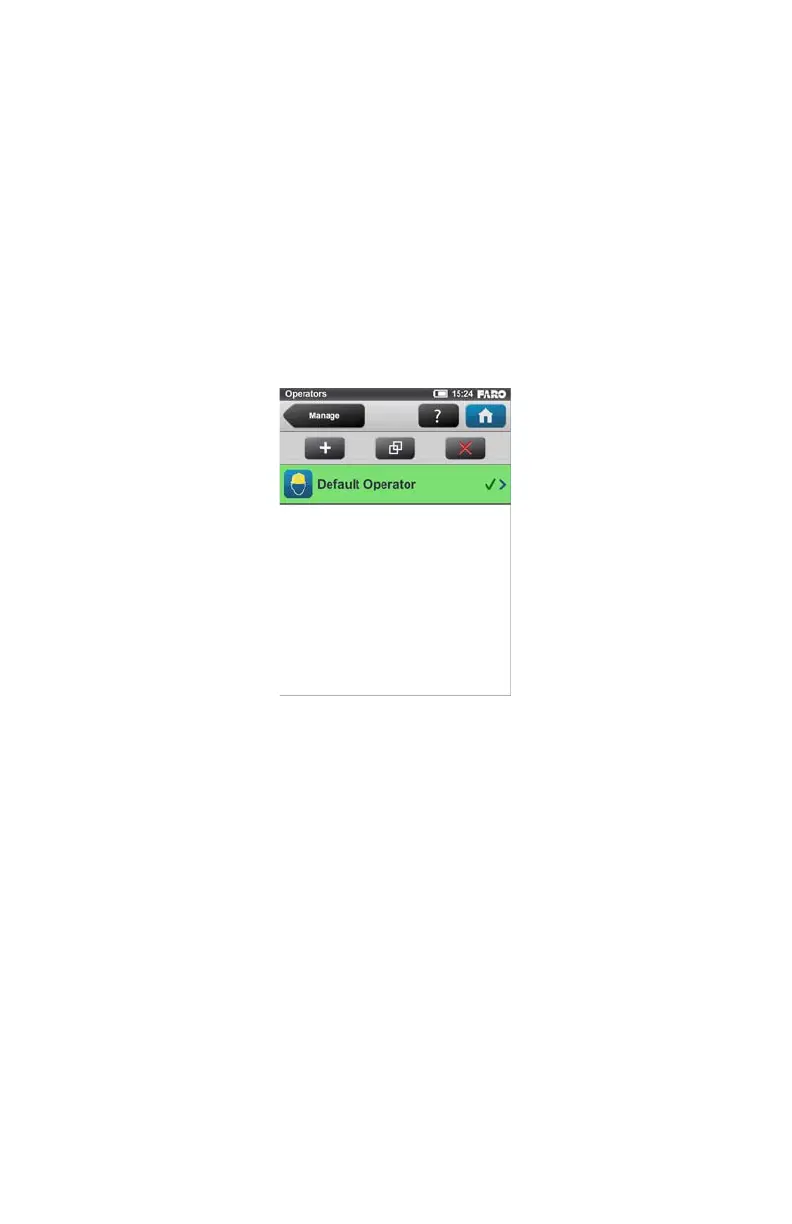

Figure 6-14 Operators List
