Chapter 4: Parts and their Functions
PowerDock Battery Charging Cradle
 Power socket
 Bearing area for the battery
 LEDs (see Figure 4-7)
 Connectors
 Power LED (LED 1) - indicates that power is connected to the PowerDock.
 LEDs 2 to 5 - indicate the charging state of the battery:

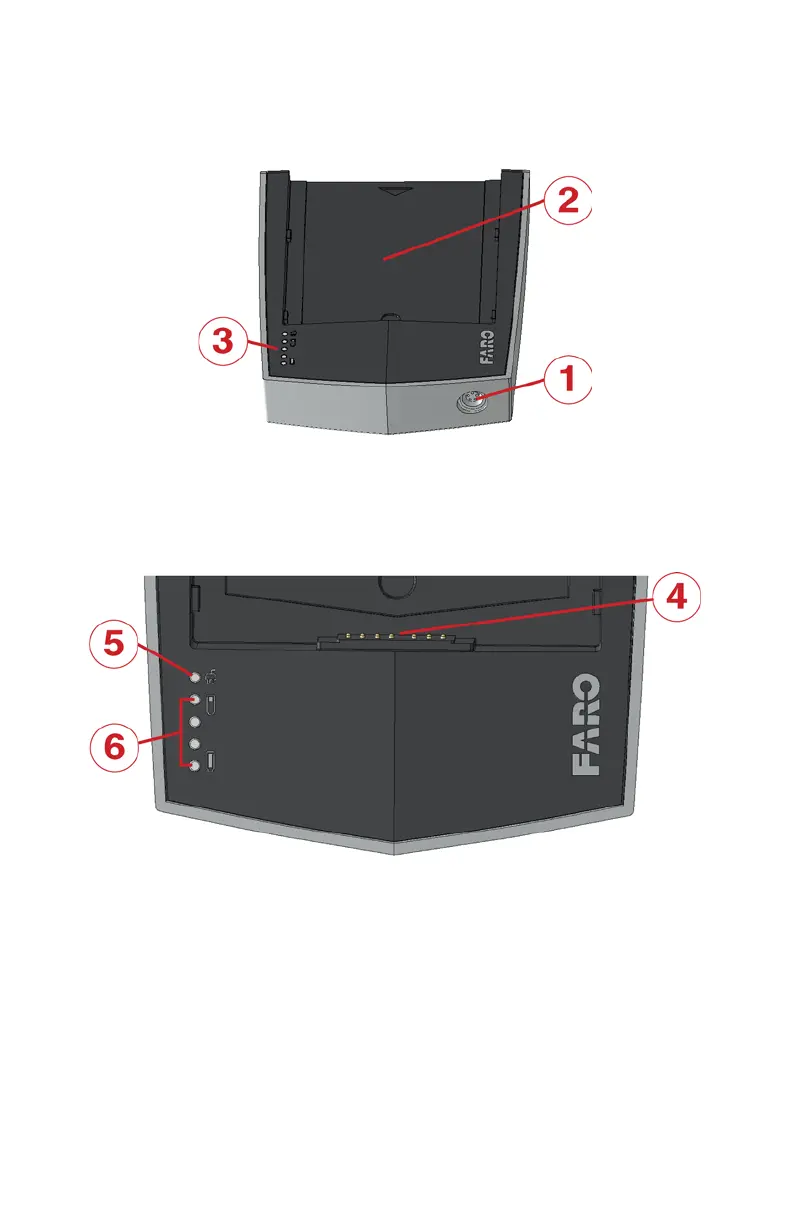

Figure 4-6 PowerDock
Figure 4-7 PowerDock LEDs
