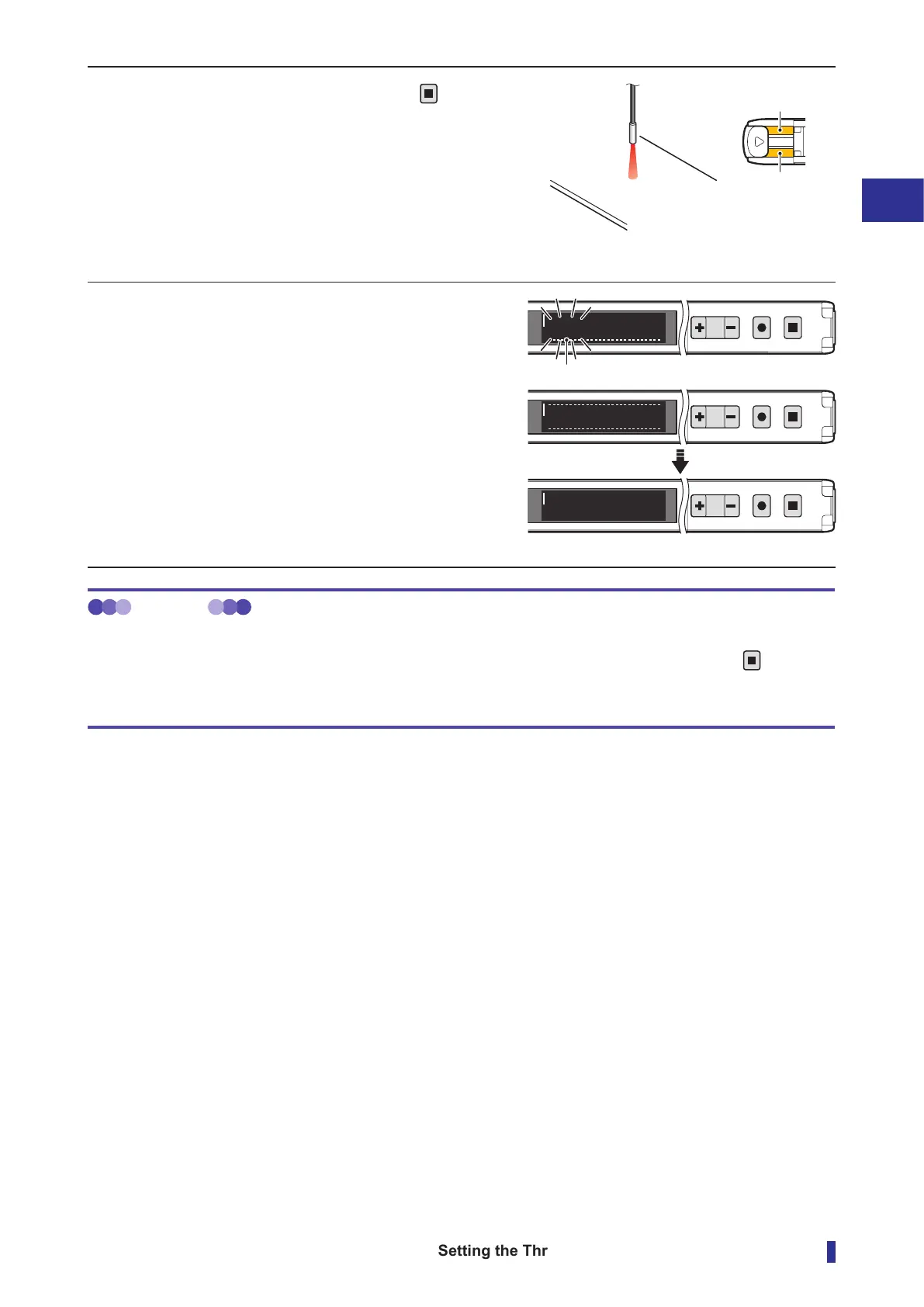

Basic Usage
Setting the Threshold (Teach Function)
5 With no object present, hold down
for 1
second or more.
The output indicator of the channel (output 1 or
output 2) for which the teach function is being
executed blinks once in orange.
6 The threshold is set and its display blinks.
This completes the execution of the teach function.
The OLED display automatically returns to the
RUN screen.
* If the received light amount does not meet the
conditions required for the teach function, “Teach
error” will be displayed. If this error is displayed,
refer to “5-1 Error Displays” (page 5-2) for
troubleshooting.
MEMO
Operations when executing the teach function again
After executing the teach function, to reset the teaching with the same mode again, simply hold down the
key for
1 second or more. (The operations in steps 1 to 4 of the operation procedure are not necessary.)
In this situation, the teach function is executed with the previously set mode and detection margin.
Execute the teach function with the background.
S
R
indicator
Output 2
indicator
1
2
MENU
OK
TEACH
ESC
Refresh
1
2
MENU
OK
TEACH
ESC
1169
1
2
MENU
OK
TEACH
ESC
To run mode
1000
1169
RUN screen
Threshold
To Next Page
