Settings Menu
[S7] Detection

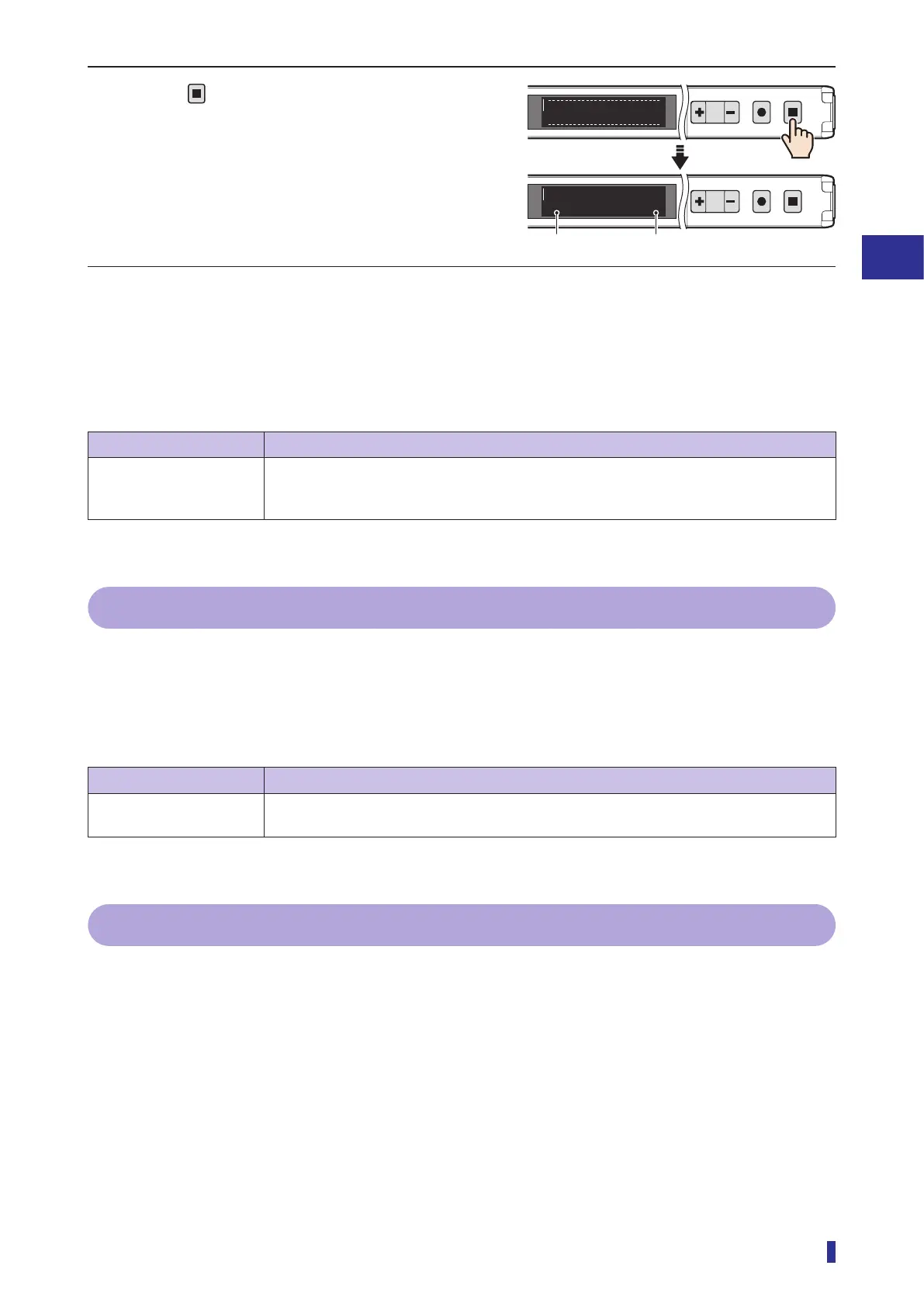

8 Press
.
This completes the settings.
The OLED display returns to the RUN screen.
Related Setting
You can change the Set count ([S7] - [D7]).
In Counter mode, this setting indicates how many objects must be detected (counter) to generate output.
This setting parameter is only displayed when Counter ([S7] - [D6]) is enabled.
Setting menu Function description
Set count ([S7] - [D7]) In Counter mode, this setting indicates how many objects must be detected (counter) to
generate output.
1 to 16383, default value: 10
4-6-7 [S7] - [D7] Set count
This setting parameter is only displayed when Counter ([S7] - [D6]) is enabled.
For details on Counter mode and Set count, refer to “4-6-6 [S7] - [D6] Counter” (page 4-19).
Selectable Parameters
Selectable parameter Function description
Set count (default value:
10)
1 to 16383
4-6-8 [S7] - [D8] Edge direction
This menu sets the direction of received light amount to be detected in the Edge mode.
This setting parameter is only displayed when Threshold mode ([S7] - [D2]) is set to Edge height.
For details on Edge height, refer to “3-7-5 [S7] - [D2] Threshold Mode “Edge height”” (page 3-47).
Counter
Set count
1
2
MENU
OK
TEACH
ESC
To run mode
1
2
MENU
OK
TEACH
ESC
1
24
