INSTALLATION MT100 Multipoint Flow Meter
NPT Installation (MT100S, MT100M)
Single and multipoint NPT pipe thread sensor assemblies are shown in Figure 12 and Figure 13 below. Apply sealant compatible with the
process media to male threads. Carefully insert process mounting coupling. Tighten the flow element until snug and continue until flat and
flow direction arrow are aligned with process flow.
Ø 1

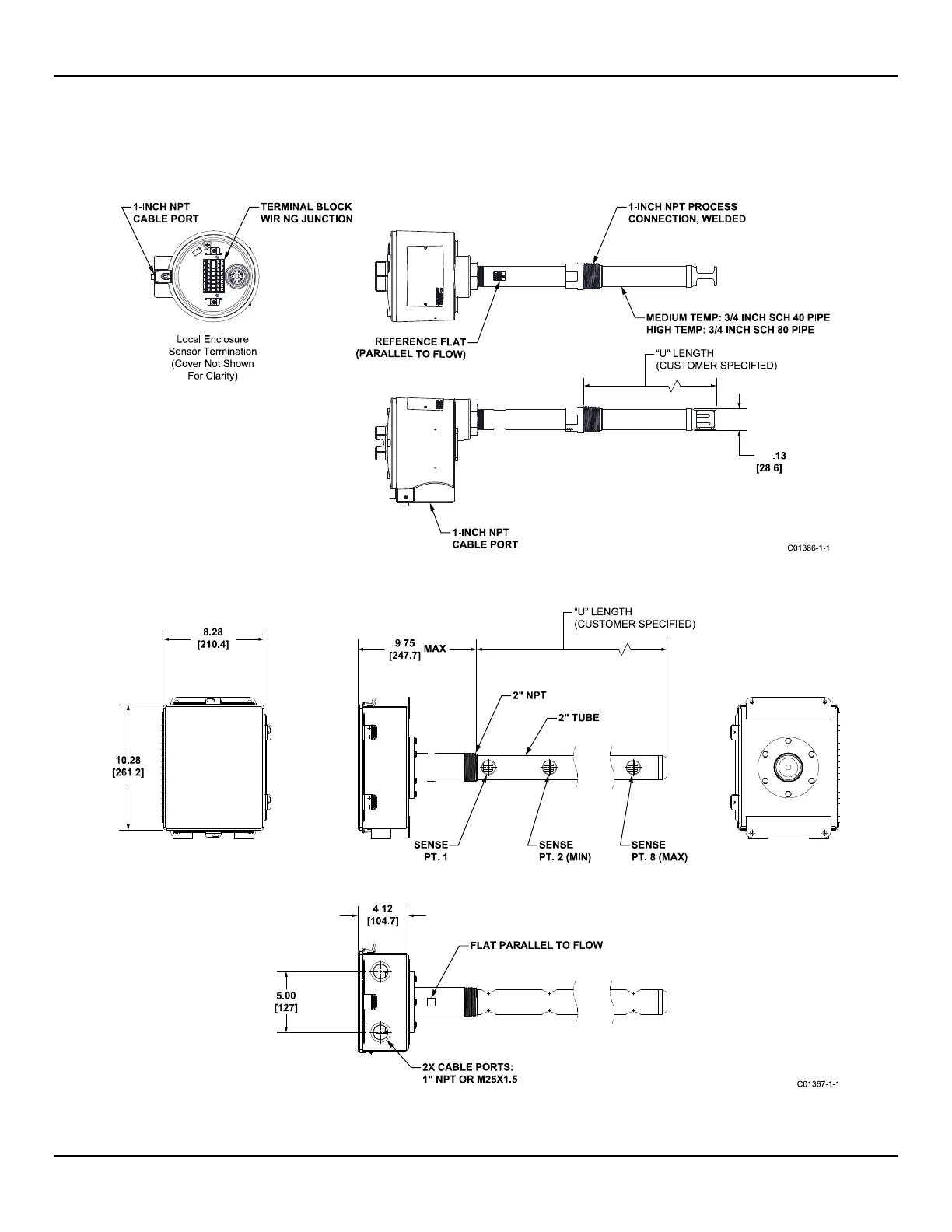

Figure 12 –Single Point, Fixed 1" Welded NPT Process Connection
Figure 13 – Multipoint, 2" NPT Process Connection (Low Temp Shown)
Fluid Components International LLC 16
