FCI MT100 User Manual

OPERATION MT100 Multipoint Flow Meter

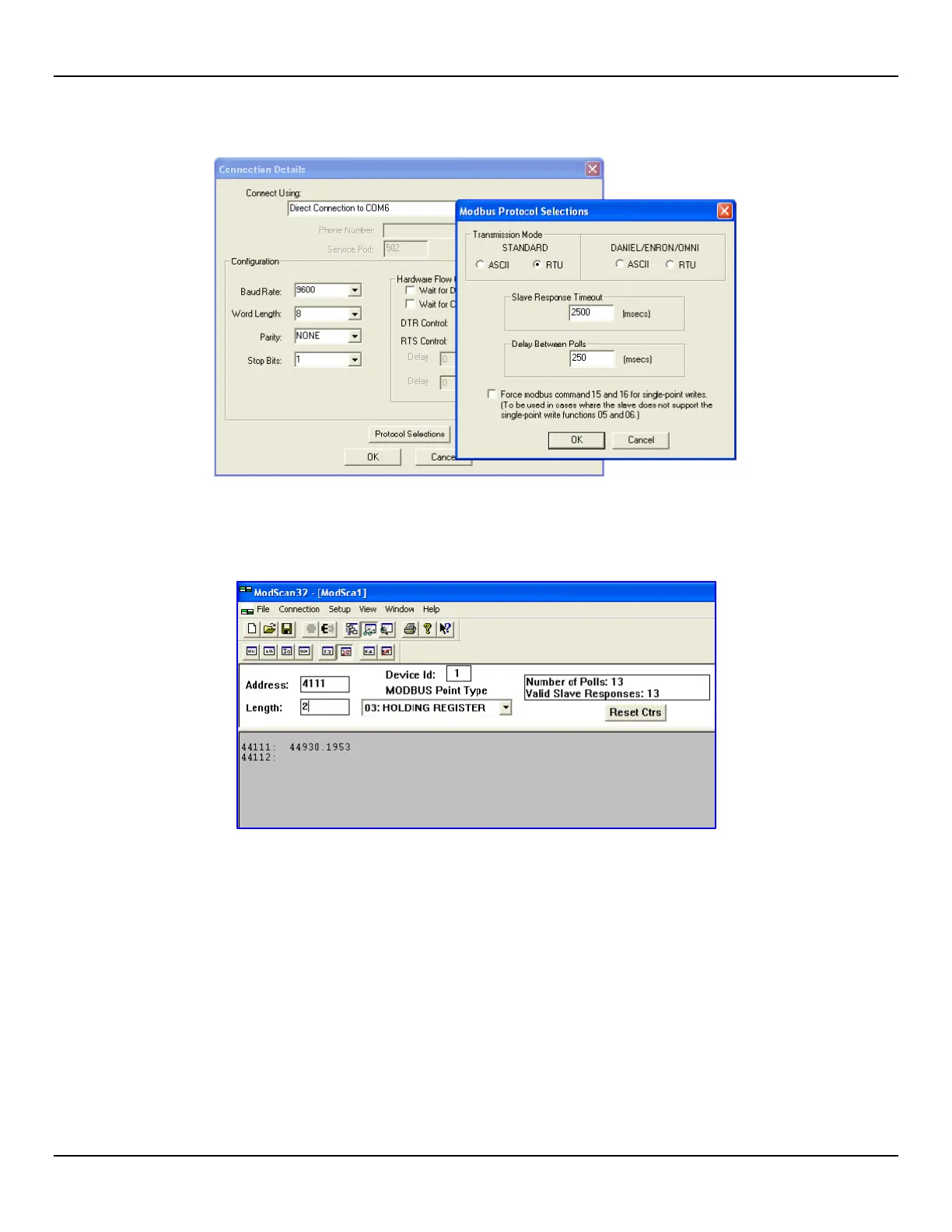

2. Once data is defined, select Connect from the Connection pull-down menu. Below window is displayed. Set the serial parameters
and protocol as required for your application.
Figure 44 – ModScan32, Serial Interface and Transmission Mode Configuration
3. After entering the appropriate connection details the ModScan32 master then attaches itself to the Modbus device (MT100) as shown
in the figure below. The register value displays in the bottom, gray part of the window.
Figure 45 – ModScan32 Connected to Modbus Device with Registers 4111 and 4112 on Display (Totalizer 1 Count)
Fluid Components International LLC 78
