OPERATION
Unlinking 3-point implements using
depth control

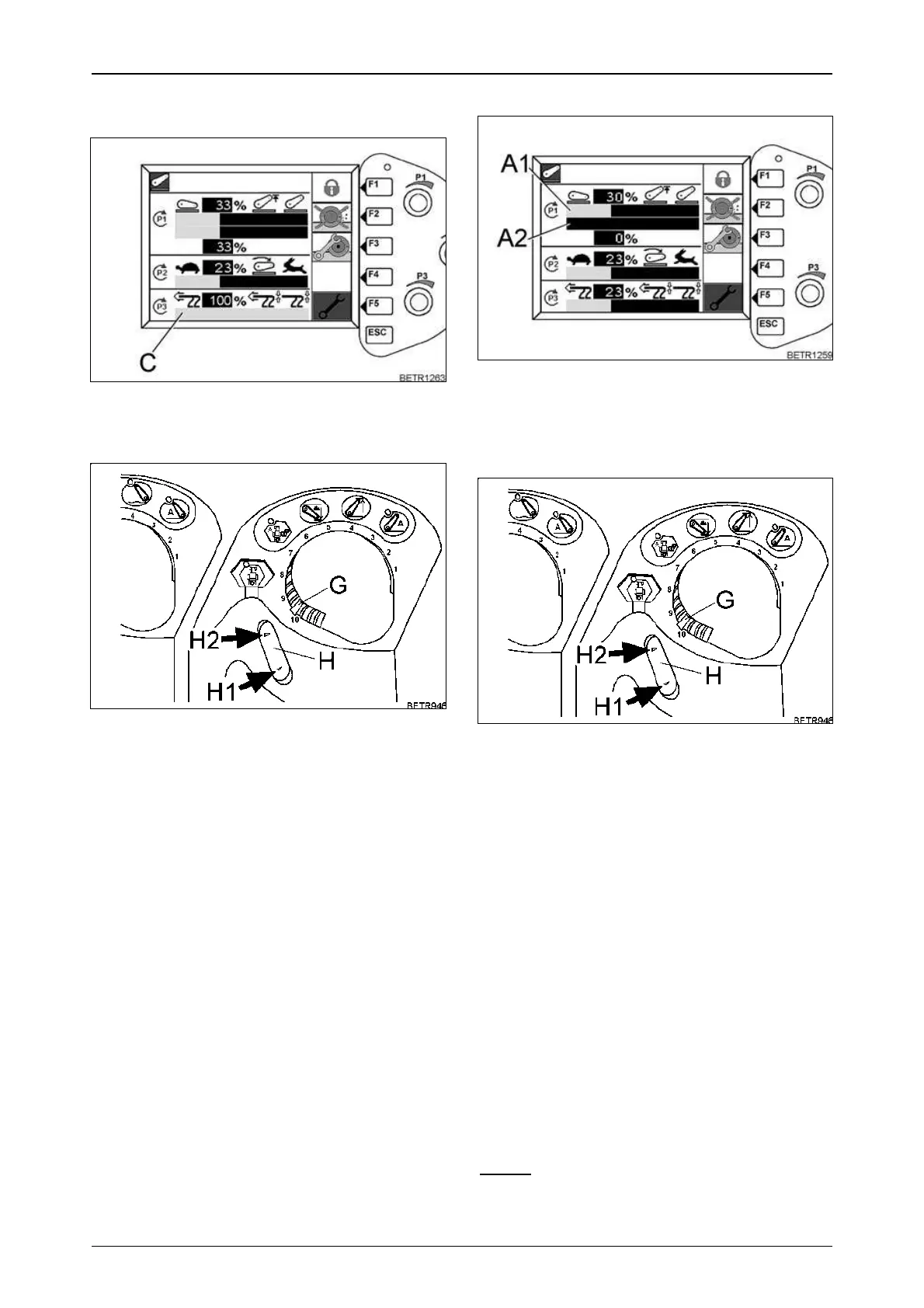

Operation_Pic_number:1
● With rotary switch (P3), set 100% position,
bar indicator (C).
Operation_Pic_number:1
● Turn depth control (G) to completely to the
right.
● Quick lift key (H) to 'Control' (H1), LED lights
up.
● With depth control (G), lower slowly until
there is no load on the top link, then detach,
release the catch hooks and fully lower the
hydraulics.
Fig.166
Fig.167
Setting the desired transport height
Operation_Pic_number:1
● Lower the implement completely.
● With rotary switch (P1), set 30 % lift height,
bar indicator (A1).
● Wait until indicator bar (A2) displays 0%.
Operation_Pic_number:1
● Quick lift switch (H) to 'Lift' (H2), LED lights
up, implement rises approx. 1/4.
● With rotary switch (P1), set the desired trans-
port height.
Text-module
Road haulage
(Transport lock).
● For road transport, turn depth control (G) fully
to the right.
Text-module
Transport with vibration damping
After raising the implement with the Quick Lift
switch, vibrations due to uneven road surfaces
are reduced by small movements of the power
lift, thus preventing jerking of the tractor. This re-
duces the mechanical load on tractor and imple-
ment, while improving the steerability.
Vibration damping switches on at a speed of
about 8 km/h.
The switch-on speed can be changed to any ot-
her value.
NOTE:
Vibration damping is only operative if the
safety lock is released with the Quick Lift
switch in the transport position.
Fig.168
Fig.169
