1. Installation
1-6
Festo Festo P .BE CP FB13-E-EN en 9910c

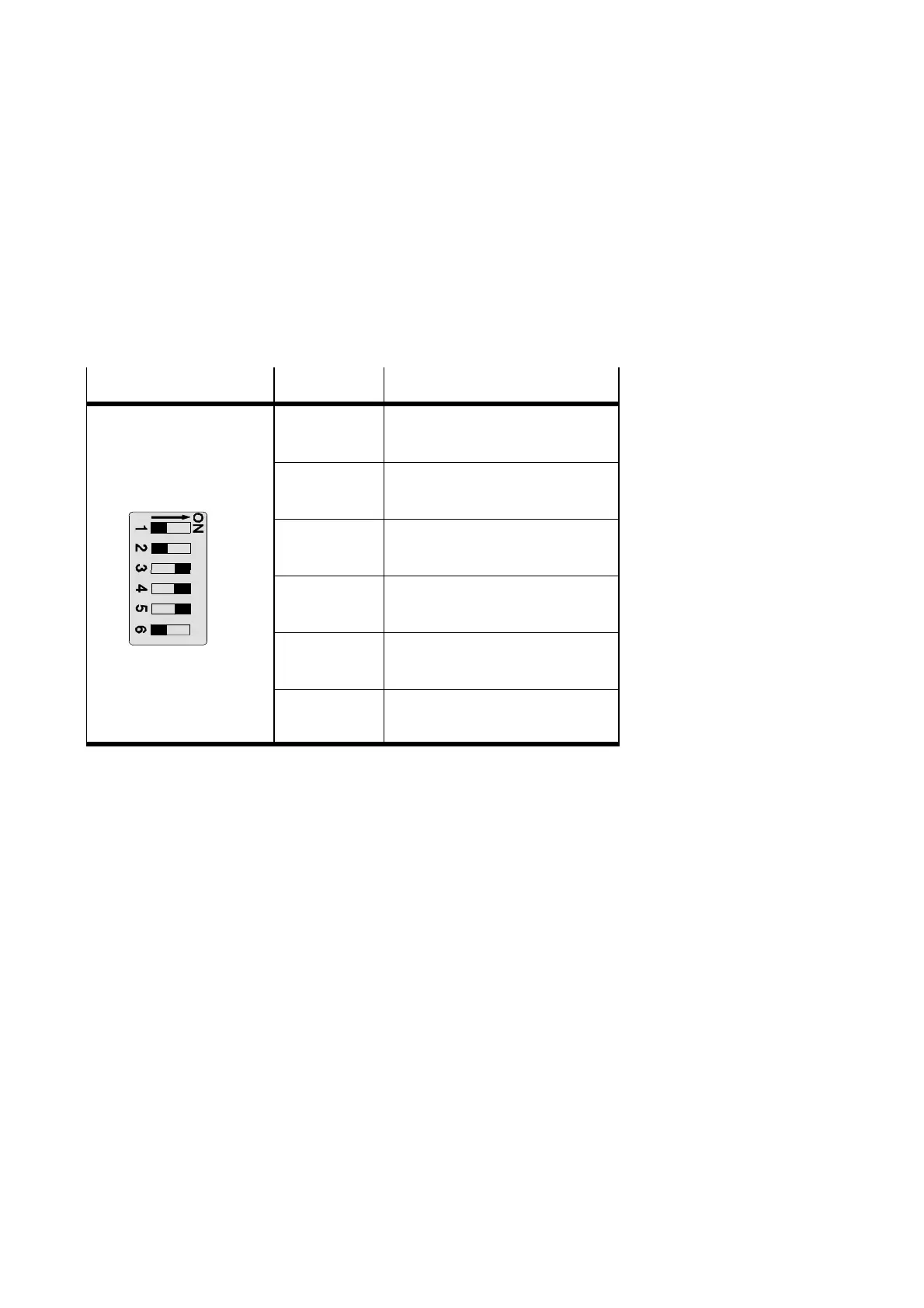

Dual inline switch
Set the following functions on the DIL switch:
– the hundreds-figure of the field bus address
– Field bus protocol PROFIBUS-DP:
Switch elements 3..6 must be set to the lower positions in
order that the field bus protocol PROFIBUS-DP is set.
DIL switch (factory setting)
Switch element Method of opera tion
1 Field bus address
ON: Field bus address
>100
OFF Field bus address
<100
2 Diagnostic message V
VAL
/V
OFF
ON: active
OFF: inactive
3 Field bus protocol PROFIBUS-DP
ON: must be set to ON
OFF: reserved
4 Field bus protocol
ON: must be set to ON
OFF: reserved
5 Field bus protocol
ON: must be set to ON
OFF: reserved
6 Field bus protocol
ON: reserved
OFF: must be set to OFF
