1.2.1 Setting the field bus address
Please note
The field bus addresses of the CP system cannot be modi-
fied by the DP master . The CP system can only be ad-
dressed by the field bus address set on the address selec-
tor switches.
1 Address selector
switch for the
UNITS-figure
2 Address selector
switch for the
TENS-figure
3 Address selector
switch for the
HUNDREDS-
figure
6
5
2
7
8
9
0
1
3
4
6
5
2
7
8
9
0
1
3
4
1
2
3

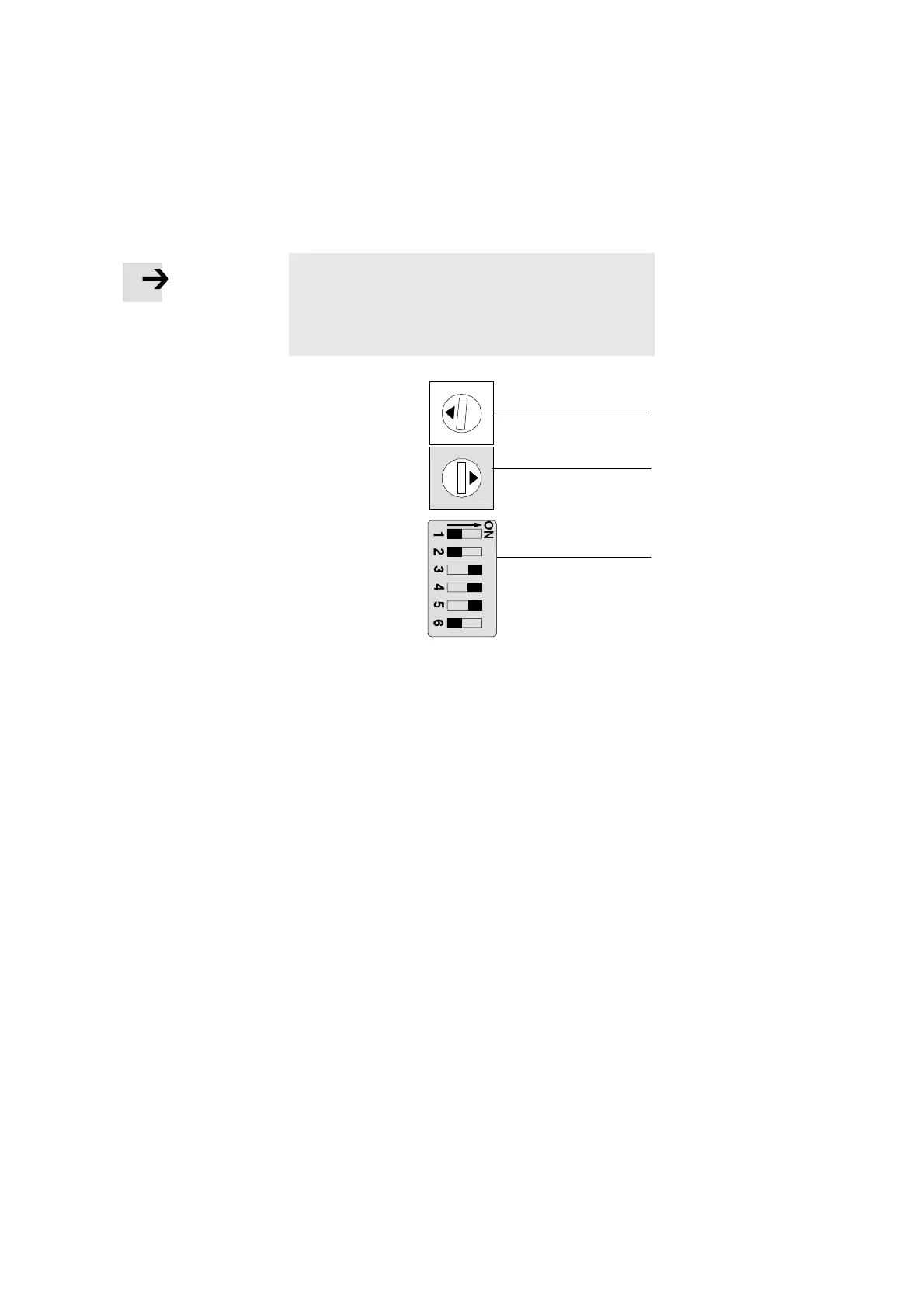

Fig. 1/2: Setting the field bus address on the address selec-
