1. Installation
1-15
Festo Festo P .BE CP FB13-E-EN en 9910c

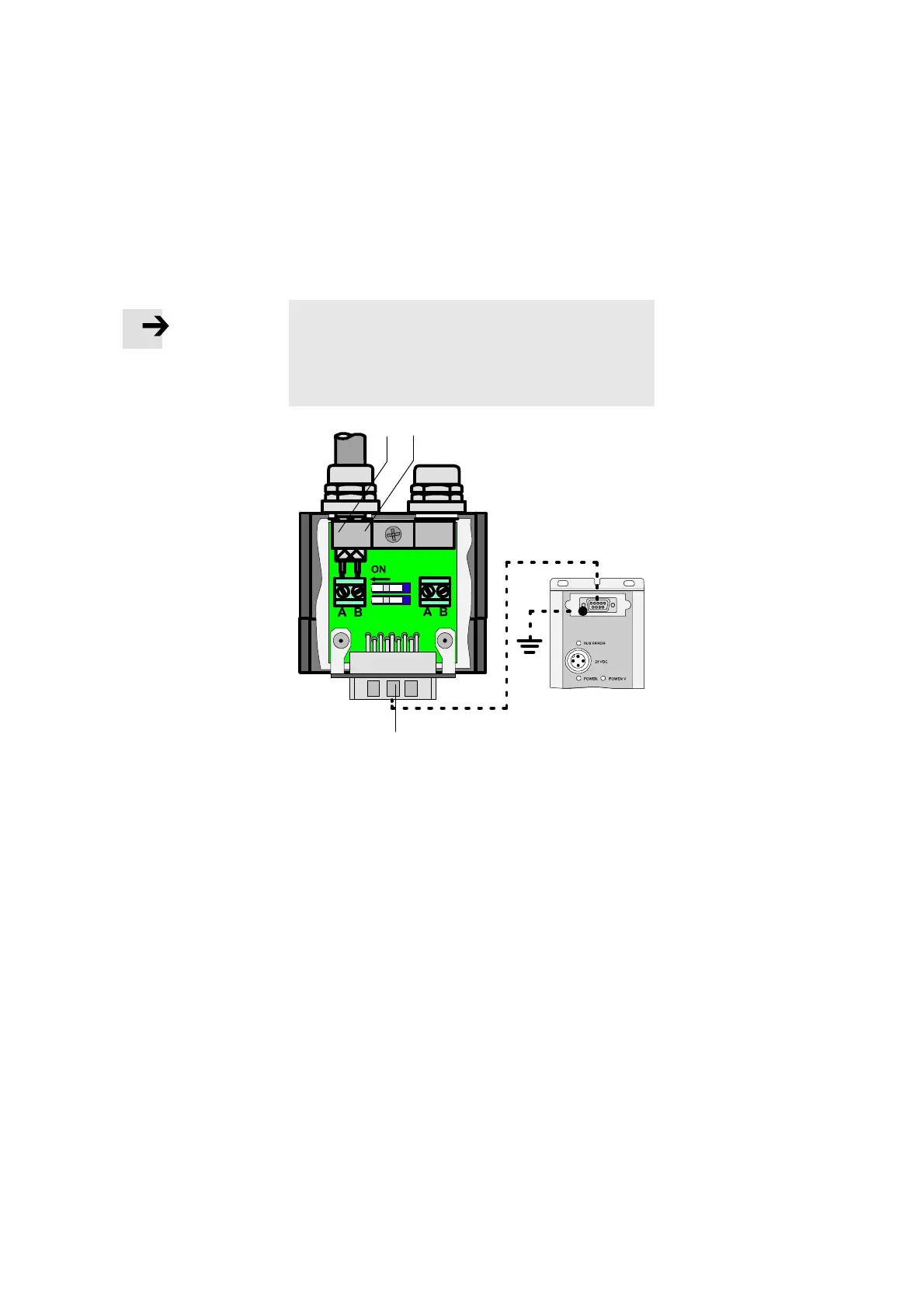

1.6.1 Screening/shield connection
S Fasten the screening/shield for the field bus cable under
the cable clip of the Festo plug (see diagram).
Please note
The cable clip in the F esto plug is connected internally only
capacitively with the metallic housing of the sub-D plug.
This is to prevent equalizing currents flowing through the
screening of the field bus cable (see diagram).
1 Screening con-
nection, cable
clip
2 Only connected
capacitively
12
2
Fig. 1/6: Screening/shield connection
