1. Installation
1-17
Festo Festo P .BE CP FB13-E-EN en 9910c
Pin 6
Power supply
Pin 3
RxD/TxD-P
Pin 8
RxD/TxD-N
Pin 5
DGND
390 9
220 9
390 9
Pin 6
Pin 3
Pin 8
Pin 5

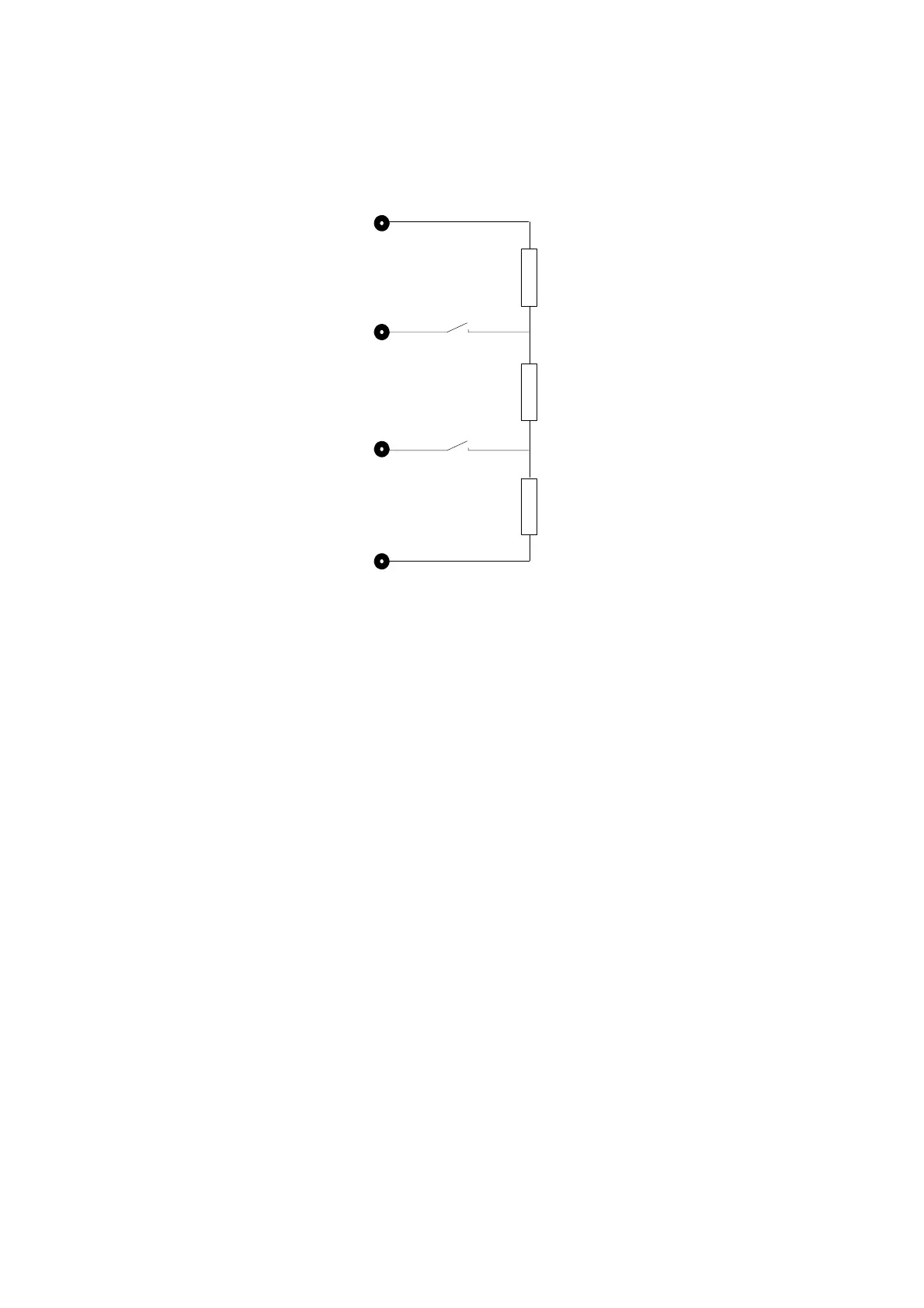

Fig. 1/8: Bus termination for cable A
