2. Commissioning
2-34
Festo Festo P .BE CP FB13-E-EN en 9910c
Addresses of the CP system: 12
Octet 1: :bits 0...7 (A20.0...A20.7)
Octet 2: bits 0...7 (---)
Octet 1: bits 0...7 (--- )
Octet 2: bits 0...7 (--- )
Octet 3: Bits (---)
Octet 4: Bits (---)
Octet 3: Bits 0...7 (A22.0...A22.7)
Octet 4: Bits 0...7 (E23.0...E23.7)
Octet 5: Bits 0...7 (A24.0...A24.7)
Octet 6: Bits 0...7 (A25.0...A25.7)
No further input bytes assigned
E = I nput
A = Output
--- = assigned, but not used
Sum of the assigned bytes: 6 output bytes; 4 input bytes

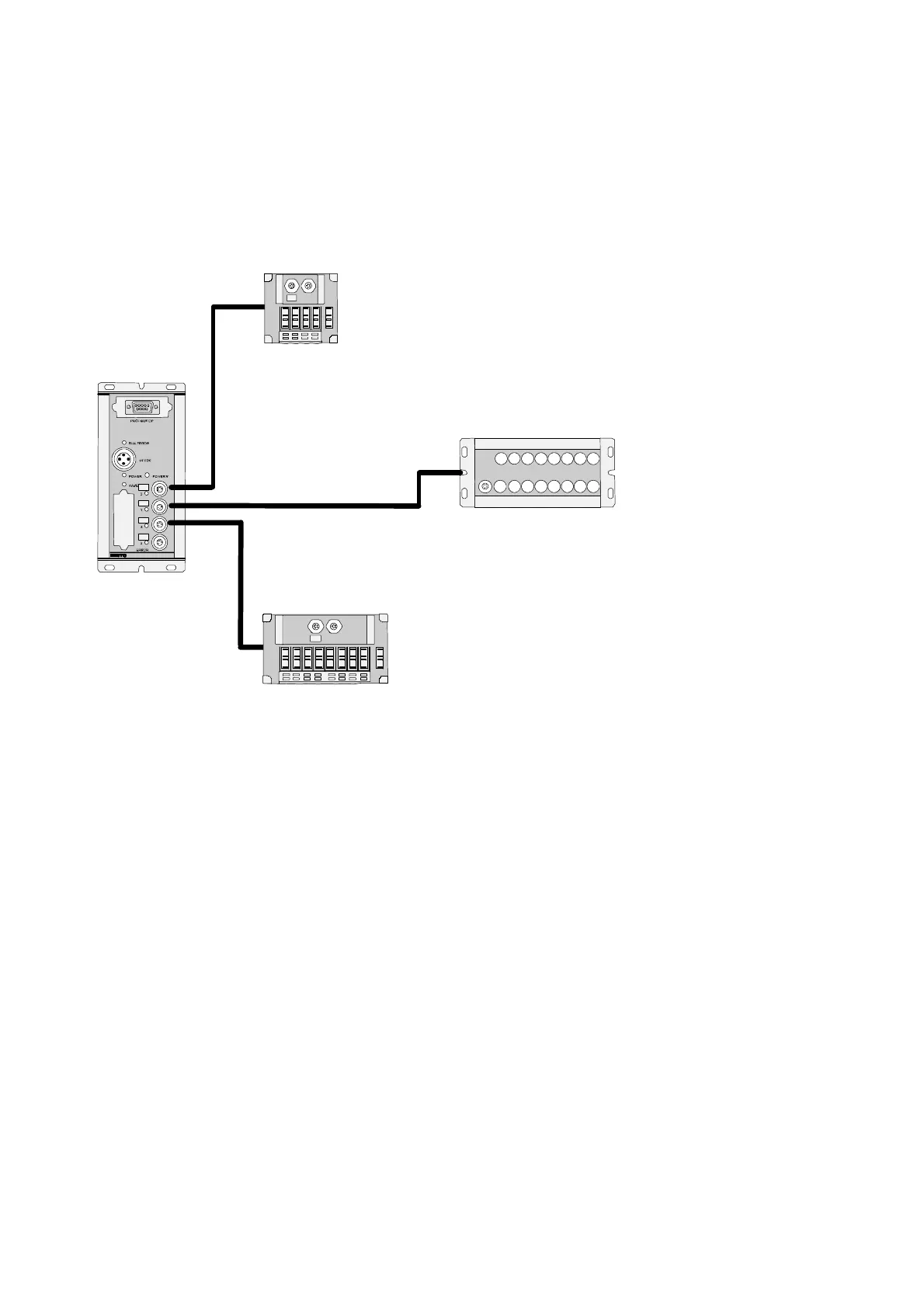

Fig. 2/18: Example: Addressing the inputs and outputs of a CP system on the PROFIBUS-
DP in compact mode
