Design and function
46 © Festo Didactic Conveyor

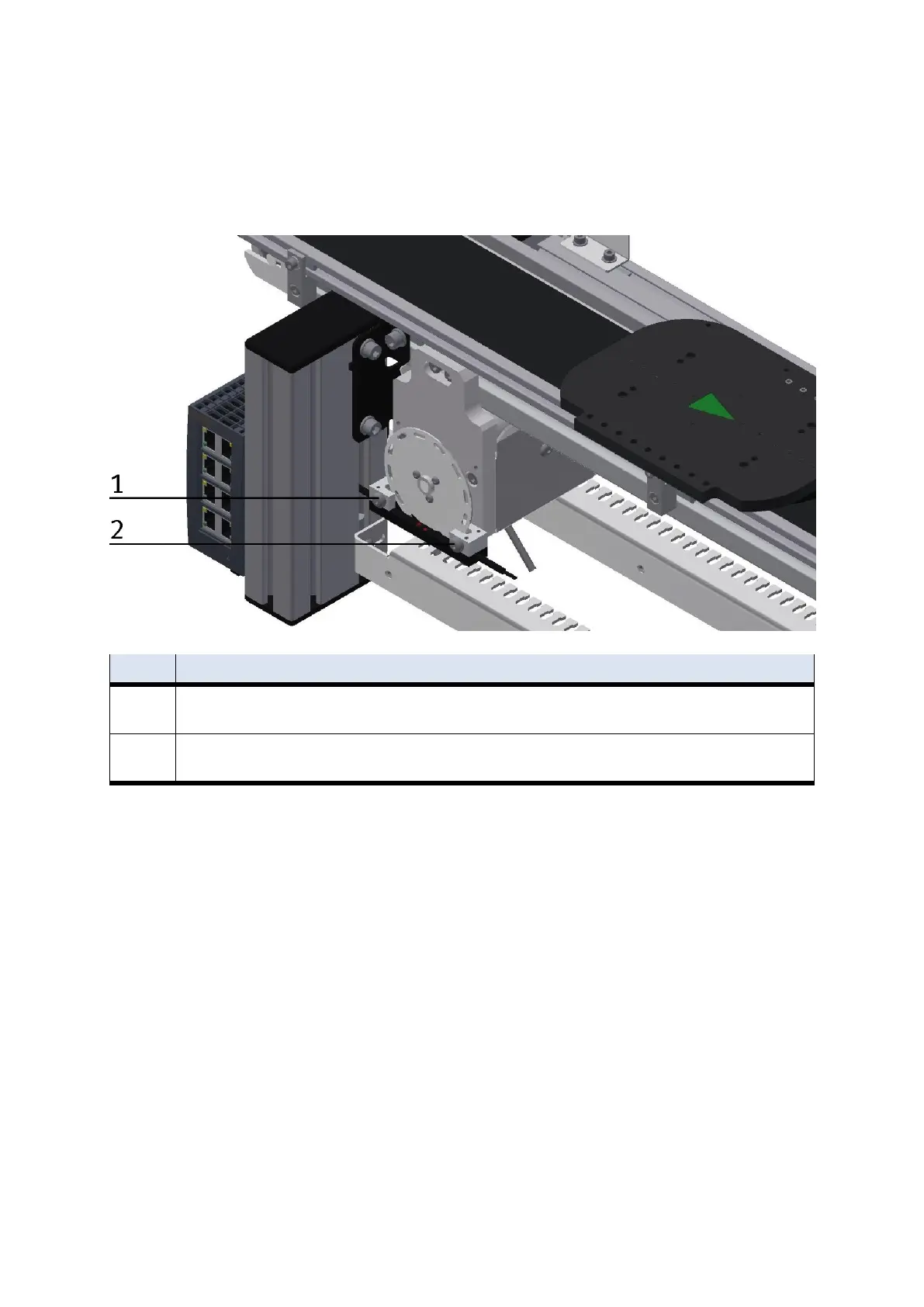

4.6 Signal generator
The drive unit is provided with an encoder with 8 cut-outs. The encoder is interrogated by 2 light barriers,
which makes the evaluation of the rotational speed possible.
One turn is 125,6mm
Position
Description
1
Light barrier channel B (BG7) / signal or coupling sensor is selectable with switch on the circuit board
(left turning signal, right coupling sensor)
2
Light barrier channel A (BG8) / signal or coupling sensor is selectable with switch on the circuit board
(left turning signal, right coupling sensor)
