Festo CP Lab - Front PCB XZ1

Components
© Festo Didactic Conveyor 91

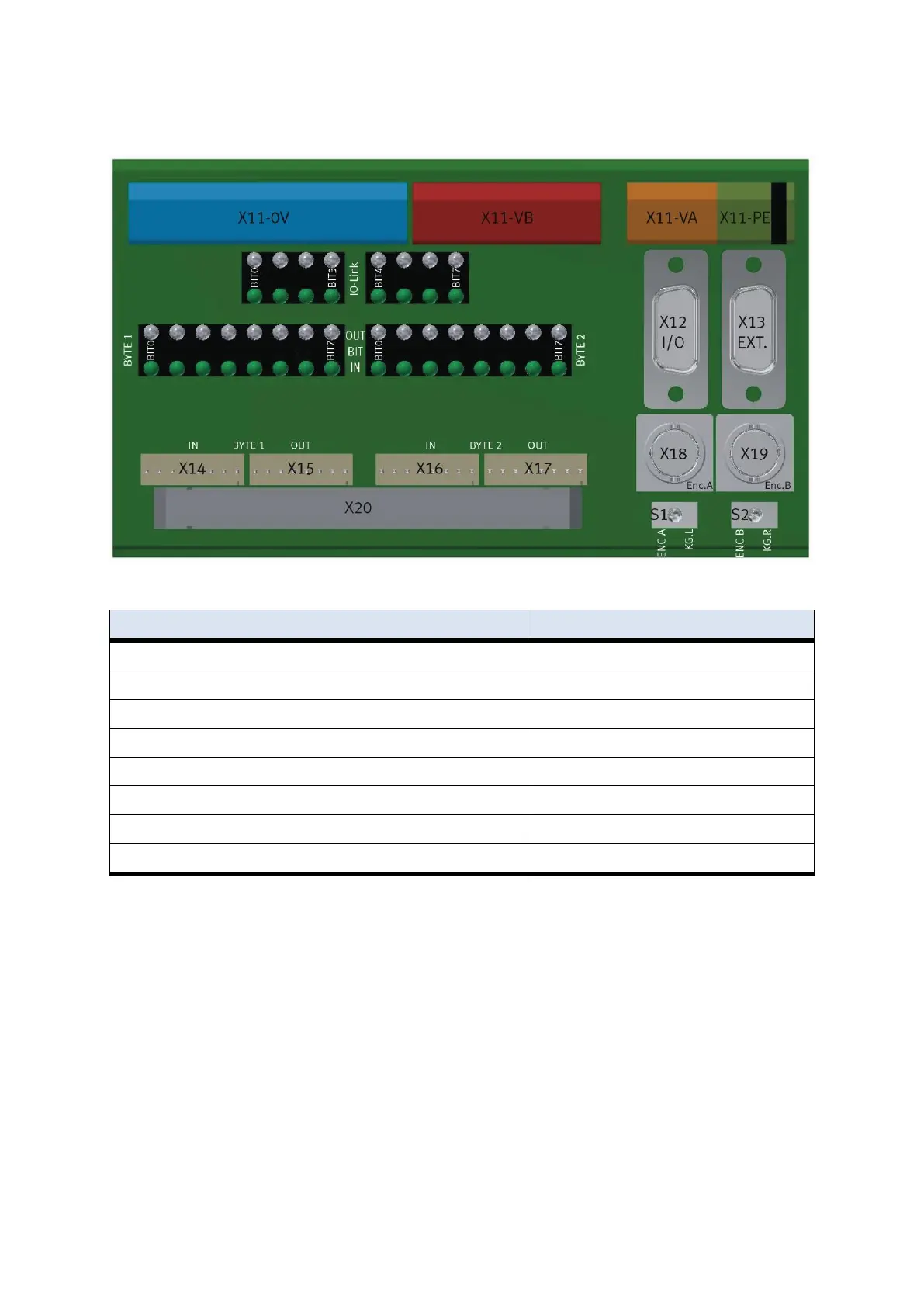

7.1.1 Front PCB XZ1
XZ1 PCB operation panel connection
Function
XZ1
Start Button / SF1
X12:1
Stop button / SF2
X12:3
Switch operation panel / SF3
X12:5
Reset button / SF4
X12:7
Start lamp / PF1
X12:2
Reset lampn / PF2
X12:4
Lamp Q1 / PF3
X12:6
Lamp Q2 / PF4
X12:8
-XZ1-X17 = Output-Byte 2
-XZ1-X16 = Input-Byte 2
-XZ1-X15 = Output-Byte 1
-XZ1-X14 = Input-Byte 1 1
-XZ1-X12 = controlpanel basic functions
-XZ1-X13 = controlpanel additional buttons
-XZ1-X18 = incremental encoder BNC-Connector 1
-XZ1-X19 = incremental encoder BNC-Connector 2
-XZ1-X11 = terminals PCB front side
-XZ1-X20 = connection to opposite PCB
-XZ1-X1 = connection to opposite PCB
-XZ1-X21 = Powersupply HMI
-XZ1-X22 = external Emergency-Stop Connector
